Запчасти Case IH 2044 (9F-06) - CENTRALIZED CHASSIS GREASING ATTACHMENT (12) - CHASSIS

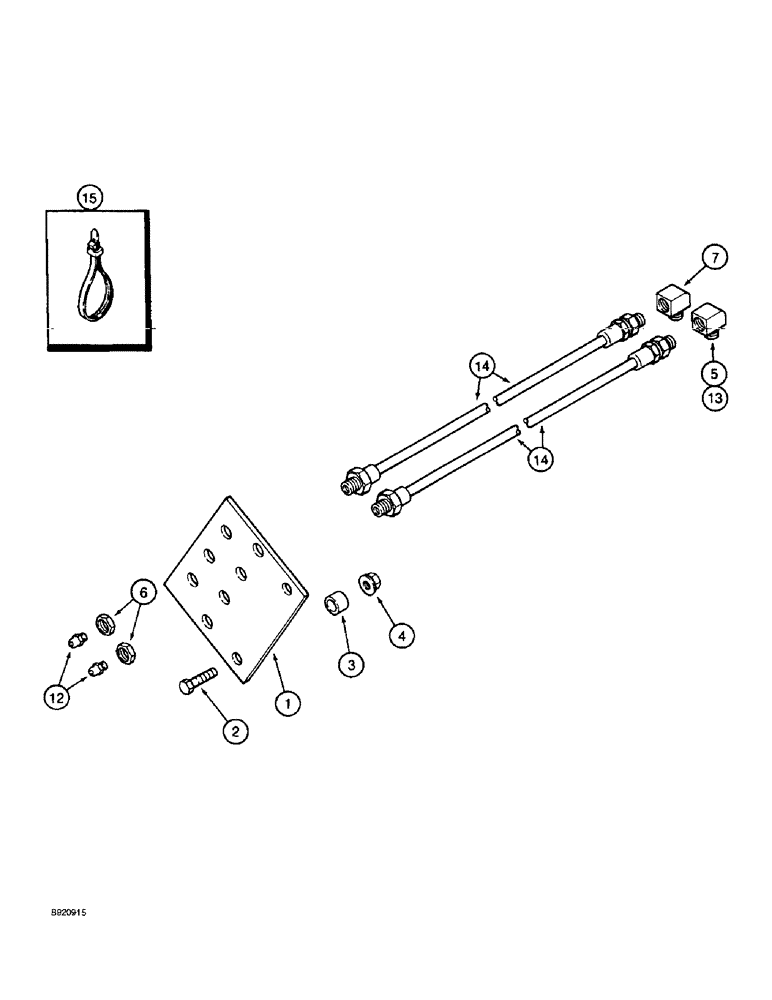

Схема запчастей Case IH 2044 - (9F-06) - CENTRALIZED CHASSIS GREASING ATTACHMENT (12) - CHASSIS
15
12
5
7
6
2
3
1
13
14
14
4

Артикул

Название

Примечание

Количество

1

1339007C1

SUPPORT

- grease fitting

2шт.

2

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

2

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

3

3068039R1

SPACER

- tube, 1-13/32 inch (36 mm) long, cut from bulk stock 196621C2 below

2шт.

4

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

5

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

FITTING - grease, 90 degree, special, 2022 Cotton Picker (Replaces fitting 21340R1)

1шт.

5

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

FITTING - grease, 90 degree, special, 2044 Cotton Picker (Replaces fitting 21340R1)

3шт.

6

F53473

LOCK NUT,1/8-27 NPSM

- special, 2022 Cotton Picker

4шт.

6

F53473

LOCK NUT,1/8-27 NPSM

- special, 2044 Cotton Picker

6шт.

7

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street, 2022 Cotton Picker (Replaces elbow 9409931) 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

4шт.

7

9409931

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

- street, 90 degree, 1/8 inch PT, 2044 Cotton Picker

6шт.

12

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree, 1/4-28 taper x 13/16 inch, 2022 Cotton Picker

9шт.

12

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree, 1/4-28 taper x 13/16 inch, 2044 Cotton Picker

13шт.

13

219-418

ADAPTER,1/4"-1/8 NPTF

FITTING - grease, straight, 1/8 PT x 1/4-28 inch, taper (Replaces fitting 21450R1)

2шт.

14

937781R92

HOSE,3.02mm ID x 686mm L

Grease 3.56 mm ID x 686.00 mm

1шт.

14

937782R92

HOSE,3.02mm ID x 787mm L

Grease 3.56 mm ID x 787.00 mm

1шт.

14

1339090C1

HOSE

- grease, 33 inch (838 mm) long

1шт.

14

1339091C1

HYDRAULIC HOSE,3.17mm ID x 2718mm L

- grease, 107 inch (2718 mm) long

6шт.

14

1339092C1

HOSE

- grease, 145 inch (3683 mm) long, 2044 Cotton Picker

4шт.

15

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

20шт.

15

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie, 28-1/4 inch

6шт.

196621C2

TUBE,0.402" ID, 0.5" OD, 6.88" Length

- 6-7/8 inch (175 mm) long

1шт.

Выбрано товаров: 22
