Запчасти Case IH 2044 (7-06) - MASTER BRAKES, USED WITH 1975664C1 WHEEL BRAKE ACTUATOR (5.1) - BRAKES

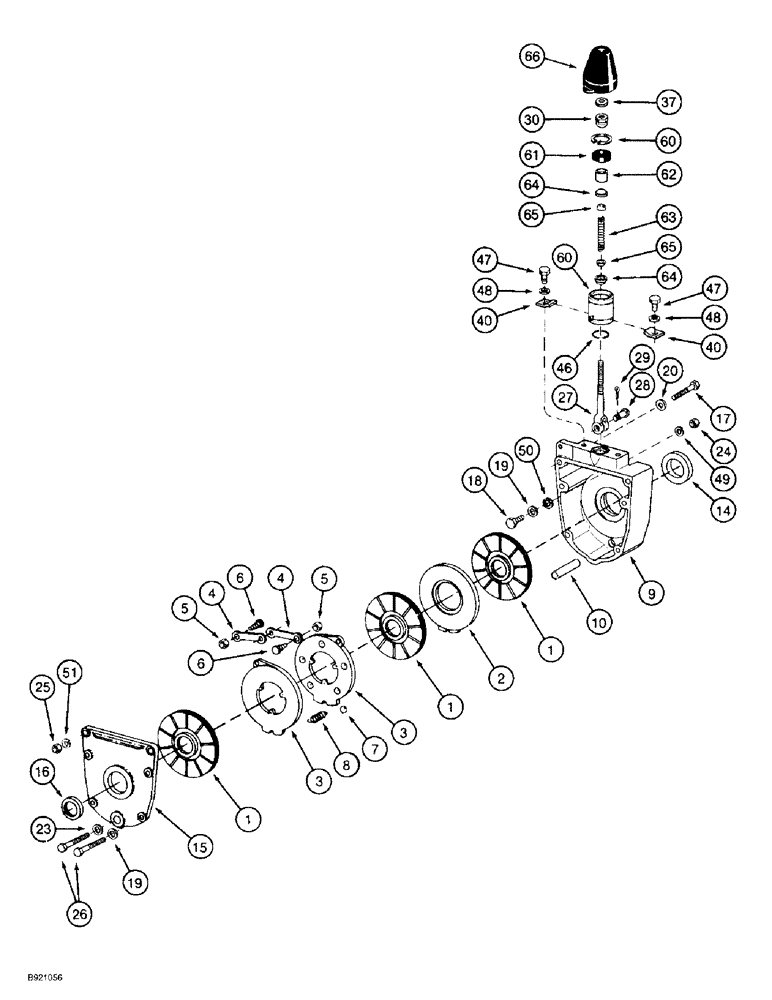

Схема запчастей Case IH 2044 - (7-06) - MASTER BRAKES, USED WITH 1975664C1 WHEEL BRAKE ACTUATOR (5.1) - BRAKES
20
26
51
19
18
3
10
3
65
40
48
61
25
16
47
8
62
19
65
17
7
30
5
46
5
63
27
2
6
60
4
28
64
1
40
49
66
29
6
1
64
37
23
4
9
48
50
15
47
1
24
60
14

Артикул

Название

Примечание

Количество

1

1963811C2

BRAKE DISC

DISC - middle

6шт.

2

184203C1

DISC

- intermediate

2шт.

184202C93

DISC

ASSEMBLY - brake actuating

2шт.

3

NSS

NOT SOLD SEPARAT

DISC - actuating

2шт.

4

1276923C2

LINK

- actuating, plain

2шт.

5

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

6

A41865

BOLT

- link

2шт.

7

211-1028

BALL,7/8" Dia

- chrome alloy steel, 7/8 inch, grade 24

5шт.

8

359859R2

SPRING

- extension

3шт.

9

1349470C1

HOUSING

ASSEMBLY - brake, right-hand (See Note)

1шт.

See Figure Note.

1шт.

9

1349469C1

HOUSING

ASSEMBLY - brake, left-hand (See Note)

1шт.

See Figure Note.

1шт.

10

1278047C1

PIN

- brake reaction

1шт.

14

660432R91

OIL SEAL

SEAL - oil, felt

2шт.

15

1277015C91

COVER

ASSEMBLY - housing

2шт.

16

380637R91

SEAL,44.45mm ID x 66.72mm OD x 5.08mm Thk

- brake housing

2шт.

17

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- hex, 5/8 NC x 6-1/2 inch

4шт.

18

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

19

396-31053

WASHER,17/32" x 1 1/16" x .188", HDN

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

10шт.

20

396-31066

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, 21/32 x 1-5/16 x 3/16 inch

4шт.

23

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

2шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

25

425-1010

NUT,5/8"-11, G5

4шт.

26

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

- hex, 1/2 NC x 6 inch

10шт.

27

A168817

STEM

ROD - pull, brake actuating

2шт.

28

L13129

CLEVIS PIN,15.77mm OD x 41.15mm L

PIN - clevis rod

2шт.

29

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

30

A157951

NUT

- hex, pull rod

2шт.

37

425-157

JAM NUT,Jam, 7/16"-20, G5

2шт.

40

1342445C1

LARGE PLATE

CLAMP - actuator plate

2шт.

46

B51471

GASKET

O-RING - 3/16 x 2-1/4 inch (Replaces O-ring 381032R1)

2шт.

47

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

3шт.

48

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

3шт.

49

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

50

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - internal tooth lock, 1/2 inch

2шт.

51

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

60

1975664C1

PISTON

ACTUATOR - brake piston, includes snap ring

2шт.

See Figure Note.

1шт.

1288942C92

KIT

- repair, wheel cylinder

2шт.

61

662620R1

COVER

BOOT - wheel cylinder

1шт.

62

662616R1

PISTON

- wheel cylinder

1шт.

63

84940C1

SPRING

- wheel cylinder

1шт.

64

51906H

CUP

- wheel cylinder, 1-1/4 inch diameter

2шт.

65

85105C1

EXPANDER

CUP - wheel cylinder

2шт.

66

1997785C1

BELLOWS

BOOT - brake cylinder, left-hand

1шт.

66

1997784C1

BELLOWS

BOOT - brake cylinder, right-hand, not shown

1шт.

Выбрано товаров: 47
