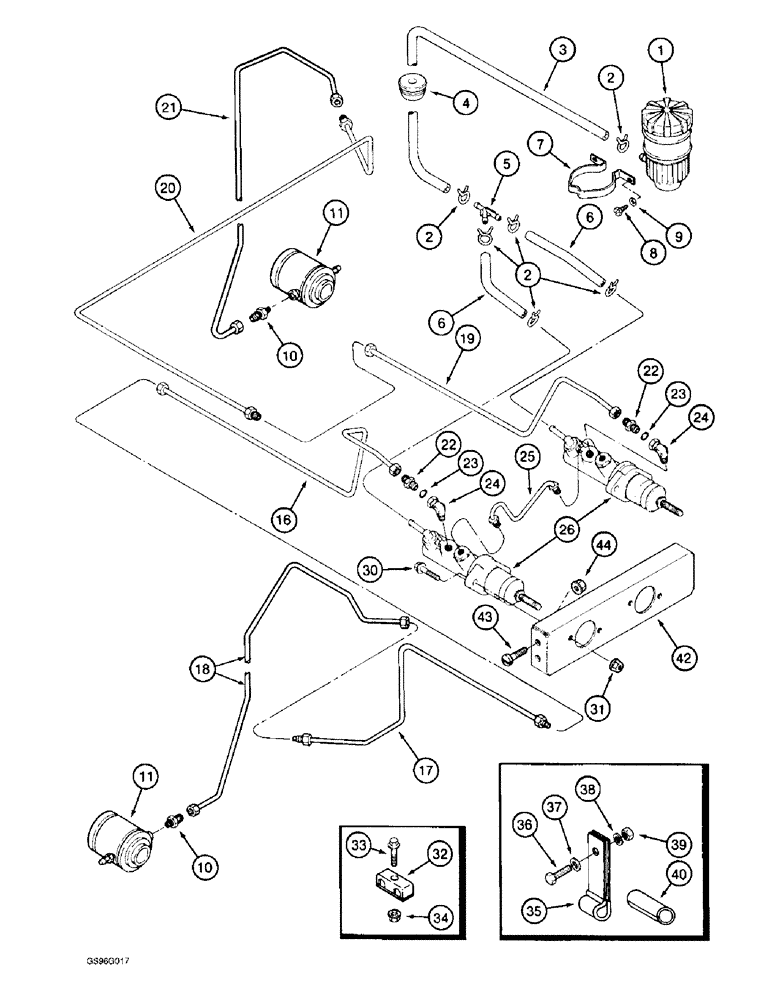

Запчасти Case IH 2044 (7-04) - MASTER BRAKE CYLINDERS RESERVOIR, CONNECTIONS AND MOUNTING (5.1) - BRAKES

1

1281890C2

RESERVOIR

- brake fluid

1шт.

Ref no. 1 - cap no. is k964488. ph-cam 9-22-98

1шт.

2

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable (Replaces clamp 244713R1) #4, 0.25/0.62 Type M Worm

6шт.

3

1281889C1

HYDRAULIC HOSE,6.35 mm ID x 610.00 mm

- Return 6.35 mm ID x 610.00 mm

1шт.

4

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- rubber, 1/2 inch ID

1шт.

5

1285312C1

TEE

FITTING - stem, Y-type

1шт.

6

1281888C1

HYDRAULIC HOSE,6.35 mm ID x 150.00 mm

- Return 6.35 mm ID x 150.00 mm

2шт.

7

1281891C1

CLAMP

- reservoir mounting

1шт.

8

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10 NC x 1/2 inch

2шт.

9

495-81101

WASHER,5.56mm ID x 19.05mm OD x 1.7mm Thk

Flat 7/32" x 3/4" x .060"

2шт.

10

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

2шт.

11

REF

INSTRUCTION

ACTUATOR - brake piston, see page 7-7

2шт.

16

1285350C2

TUBE

- right-hand brake front

1шт.

17

1345138C1

TUBE

- right-hand brake intermediate

1шт.

18

1345139C1

TUBE,0.25 mm OD, 840, 329 mm Length

- right-hand brake rear

1шт.

19

1285351C2

TUBE,0.25" OD, 449.6, 72.4 mm Length

- left-hand brake front

1шт.

20

1285352C3

TUBE

- left-hand brake intermediate

1шт.

21

1345137C1

TUBE,0.25 mm OD, 872, 102.9 mm Length

- left-hand brake rear

1шт.

22

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 inch flare x O-ring boss

2шт.

23

237-3004

O-RING,0.351" ID x 0.072" Width

4-1, Cl 3, .351" ID x .072" Thk

2шт.

24

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree, 7/16-20 inch flare x swivel

2шт.

25

1281885C1

PIPE

TUBE - equalizer

1шт.

26

1281884C91

MASTER CYLINDER,37mm Stroke

ASSEMBLY - master brake, parts list page 7-17

2шт.

30

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

32

183824C1

CLAMP

- tube

3шт.

34

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

35

633125R2

CLAMP

- tube

2шт.

36

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

37

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

38

492-11038

LOCK WASHER,3/8"

2шт.

39

425-106

NUT,3/8"-16, Cl 5

2шт.

40

163489C1

STRIP

INSULATOR - rubber, 1/4 ID x 1-13/64 inch long

2шт.

42

1327561C2

SUPPORT

- master brake cylinder

1шт.

43

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

44

231-5146

FLANGE NUT,3/8"-16

4шт.

33

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.
