Запчасти Case IH 2044 (9D-52) - REAR BASKET LOCK (16) - BASKET

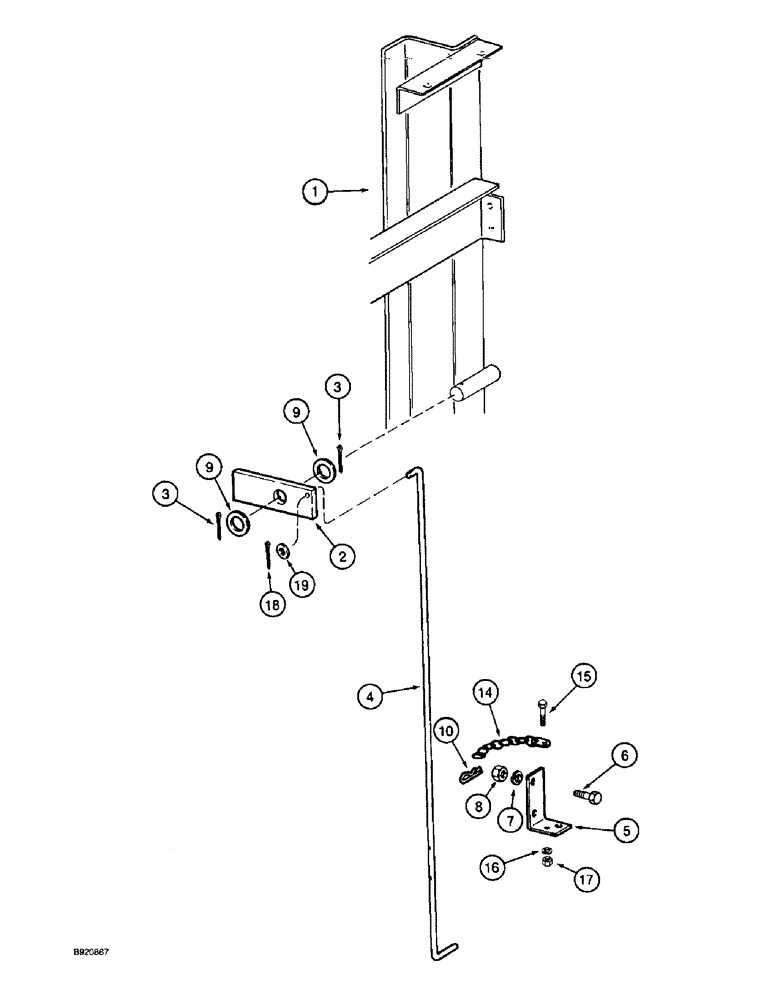

Схема запчастей Case IH 2044 - (9D-52) - REAR BASKET LOCK (16) - BASKET
16
1
10
14
5
3
17
8
4
18
9
9
6
2
3
7
15
19

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

MAST - basket, front and rear, see page 9D-47

1шт.

2

1270025C2

LARGE PLATE

BAR - basket lock

1шт.

3

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

2шт.

4

87262C2

STEM

ROD - basket lock rear

1шт.

5

87263C2

SUPPORT

BRACKET - basket lock rear

1шт.

6

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

9

495-81190

WASHER,1.16" ID x 1.75" OD x 0.12" Thk

- flat, 1-5/32 x 1-3/4 x 1/8 inch

2шт.

10

586591R1

COTTER PIN

PIN - cotter, hair, 1/8 inch

1шт.

14

87509C2

CHAIN (AG)

CHAIN - basket lock pin

1шт.

15

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

16

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

18

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

19

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

Выбрано товаров: 16
