(9D-42) - BASKET EXTENSIONS, 2044 COTTON PICKER, SHORT

Запчасти Case IH 2044 (9D-42) - BASKET EXTENSIONS, 2044 COTTON PICKER, SHORT (16) - BASKET

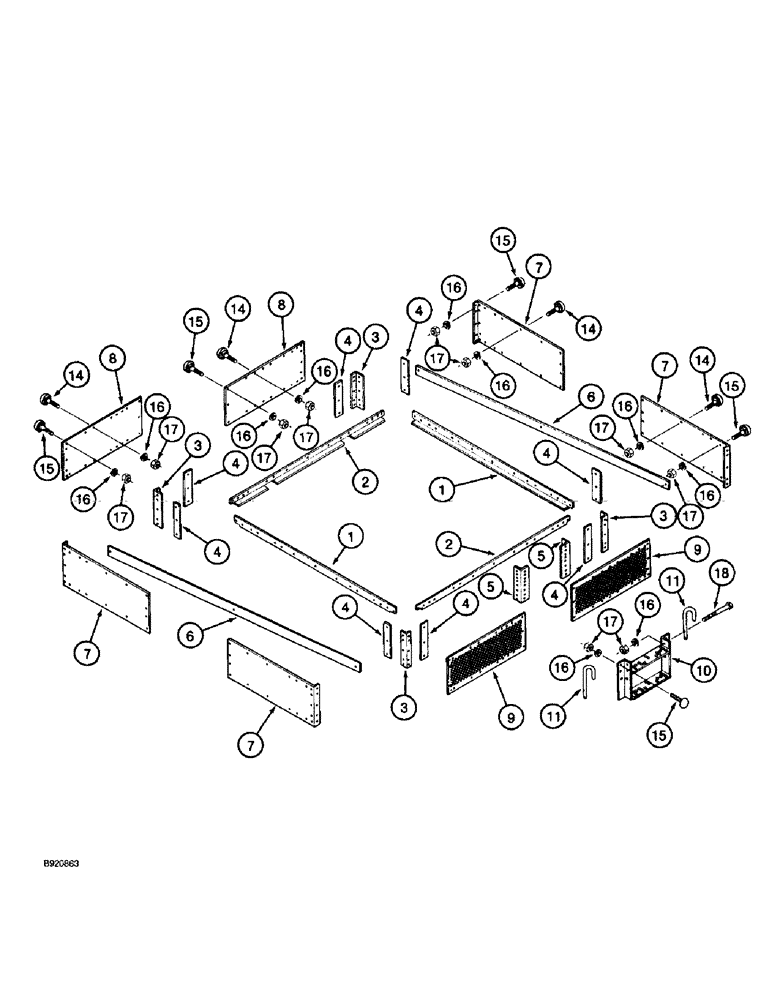

Схема запчастей Case IH 2044 - (9D-42) - BASKET EXTENSIONS, 2044 COTTON PICKER, SHORT (16) - BASKET
3
17
16
16
16
15
4
17
16
7
15
15
4
8
4
3
17
3
14
15
1
2
6
16
15
7
7
3
11
14
17
14
4
6
1
4
11
14
8
4
4
16
9
2
4
17
9
17
17
16
16
7
16
5
5
18
10
16
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1260247C1

SUPPORT

ANGLE - basket extension side

2шт.

2

1260294C2

ANGLE BAR

ANGLE - basket extension end, 2044 Cotton Picker

2шт.

2

1345424C1

ANGLE BAR

ANGLE - basket extension end, 2022 Cotton Picker (replaces 1345474C1)

1шт.

3

1278592C1

SUPPORT

BRACKET - extension corner support

4шт.

4

1288850C1

LARGE PLATE

PLATE - spacer, basket extension

8шт.

5

1278603C1

ANGLE

BRACKET - upper cover

4шт.

6

1979669C2

FIXING STRIP

STRAP - basket extension

2шт.

7

1278590C1

EXTENSION

- panel side

4шт.

8

1278591C2

COVER

- basket extension end, rear (Replaces cover 1278591C1)

2шт.

9

87261C1

COVER

- basket extension end, front

2шт.

Ref. 9 Cover or Sheet if looking for one that is 51.6 X 14.46 try part number 1345422c1 10/07/98 SP

1шт.

10

1278731C1

STEP

- basket

1шт.

11

1278736C1

COVER

HANDLE - basket

2шт.

14

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

38шт.

15

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

46шт.

16

492-11038

LOCK WASHER,3/8"

88шт.

17

425-106

NUT,3/8"-16, Cl 5

88шт.

18

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.
