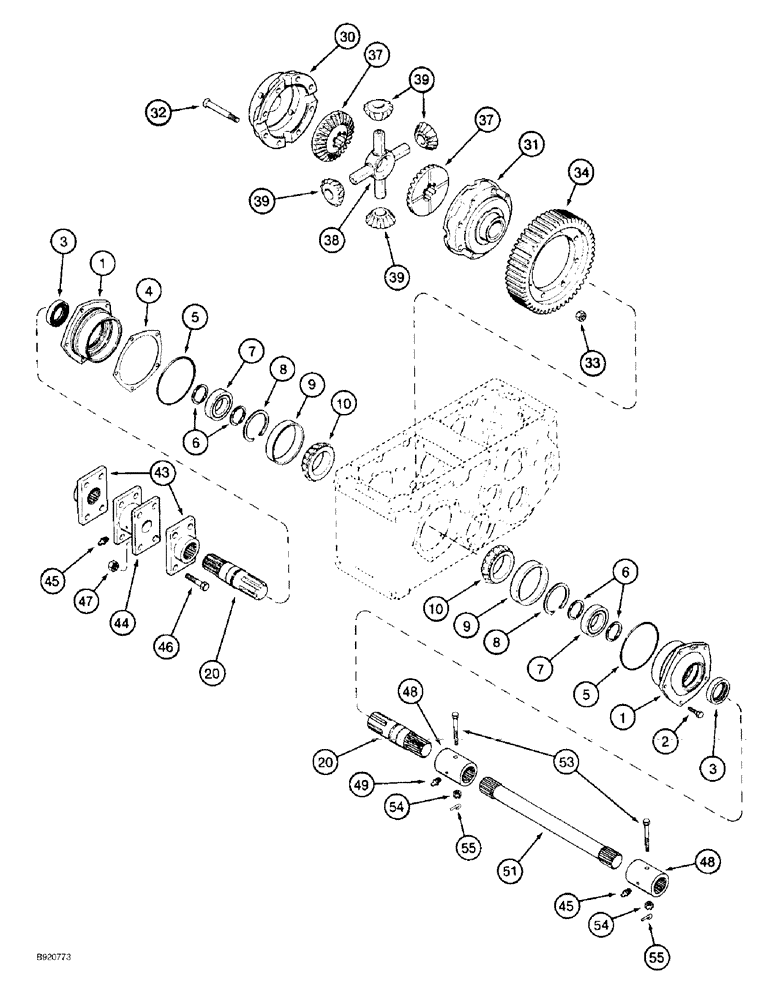

Запчасти Case IH 2022 (6-48) - TRANSMISSION, DIFFERENTIAL (03) - POWER TRAIN

1963918C4

TRANSMISSION

ASSEMBLY - 2022 Cotton Picker

1шт.

1963922C4

TRANSMISSION

ASSEMBLY - 2044 Cotton Picker

1шт.

1

379445R1

BEARING ASSY,61.9 mm ID x 76.2 mm

- bearing

2шт.

2

326-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8

10шт.

3

380182R91

OIL SEAL,42.42mm ID x 62.05mm OD x 8.41mm Thk

- oil

2шт.

4

573976R1

DISC

SHIM - cage, 0.003 inch thick

1шт.

4

573977R1

SHIM

- cage, 0.005 inch thick

1шт.

4

573978R1

SHIM

- cage, 0.010 inch thick

1шт.

5

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

2шт.

6

101-11177

SNAP RING,#177, 1.657", Ext

RING - external retaining, No. 177

4шт.

7

ST560

BEARING, BALL,45 mm ID x 75 mm OD x 16 mm

BEARING - differential shaft, 2-15/16 inch OD (Replaces bearing 1963958C1)

2шт.

8

379485R1

RING

- snap

2шт.

9

29214H

BEARING CUP,110mm OD x 18.82mm W

CUP - tapered roller bearing (Replaces cup A26744)

2шт.

10

ST2039

BEARING CONE,68.26mm ID x 22.07mm W

BEARING - tapered roller, 2-11/16 inch ID

2шт.

20

533847R3

SHAFT

- differential

2шт.

395631R92

PACKAGE

KIT - differential case

1шт.

30

NSS

NOT SOLD SEPARAT

HOUSING - differential

1шт.

31

NSS

NOT SOLD SEPARAT

HOUSING - differential

1шт.

32

395636R2

BOLT,1/2" - 20 x 3.87"

- differential case

8шт.

32

413-756

BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5

- hex, 7/16 NC x 3-1/2 inch

2шт.

33

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

2шт.

33

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

34

NSS

NOT SOLD SEPARAT

GEAR - driven, 53 tooth

1шт.

37

360962R2

GEAR

- differential bevel, 28 tooth

2шт.

38

388093R1

U-JOINT SPIDER

SPIDER - differential

1шт.

39

360961R1

GEAR

- differential spider, 15 tooth

4шт.

43

214639C1

HUB

- axle

3шт.

44

1278328C3

SPACER

- axle

1шт.

45

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch

1шт.

46

414077C1

BOLT,Hex, 5/8" - 18 x 1 3/4"

- hex, 5/8 NC x 1-3/4 inch

8шт.

47

414089C1

FLANGE NUT,5/8" - 18

NUT - hex, 5/8 inch NC

8шт.

48

184342C1

COUPLING

ASSEMBLY - axle shaft

2шт.

49

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch

1шт.

51

1288901C1

SHAFT

- drive

1шт.

53

27652R1

BOLT,Hex, 3/8" - 16 x 3", Gr 8

- hex drilled, 3/8 NC x 3 inch, grade 8

2шт.

54

654049R1

LOCK NUT

- hex, self-locking, 3/8 inch NC

2шт.

55

21864R1

COTTER PIN

- retaining, S-type

2шт.
