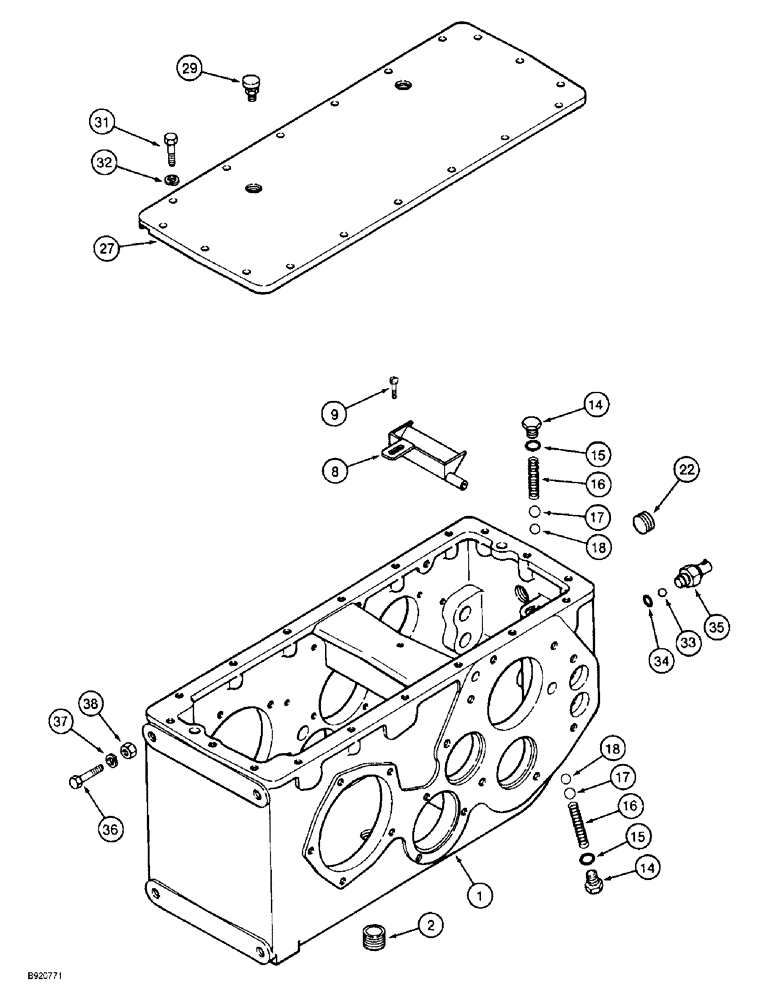

Запчасти Case IH 2022 (6-44) - TRANSMISSION, HOUSING (03) - POWER TRAIN

1963918C4

TRANSMISSION

ASSEMBLY - 2022 Cotton Picker

1шт.

1963922C4

TRANSMISSION

ASSEMBLY - 2044 Cotton Picker

1шт.

1

1963919C2

HOUSING

- transmission

1шт.

2

221-887

PLUG

- square socket, 3/4 inch PT

2шт.

8

1963911C1

TROUGH

PAN - oil

1шт.

9

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

- machine, pan head slotted, 1/4 NC x 5/8 inch

1шт.

14

76349

PLUG,9/16" - 18 ORB

2шт.

16

588801R1

SPRING

- detent

2шт.

17

211-1016

BALL,12.7mm OD, Gr 24

- chrome alloy steel, 1/2 inch, grade 24

2шт.

18

211-1014

BALL,7/16" Dia

- chrome alloy steel, 7/16 inch, grade 24

2шт.

22

217-517

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square socket, magnetic, 1/2 inch PT (replaces 221-667)

1шт.

27

1963905C1

COVER

- housing

1шт.

29

219-436

BREATHER,3/8" - 18 NPT, Short, W/ Washer

- straight, 3/8 PT x 1-1/2 inch

1шт.

31

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

18шт.

32

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

18шт.

33

211-1010

BALL,5/16" OD

- chrome alloy steel, 5/16 inch, grade 24

1шт.

35

1983575C1

SWITCH

- transmission neutral

1шт.

36

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

36

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

37

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

38

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
