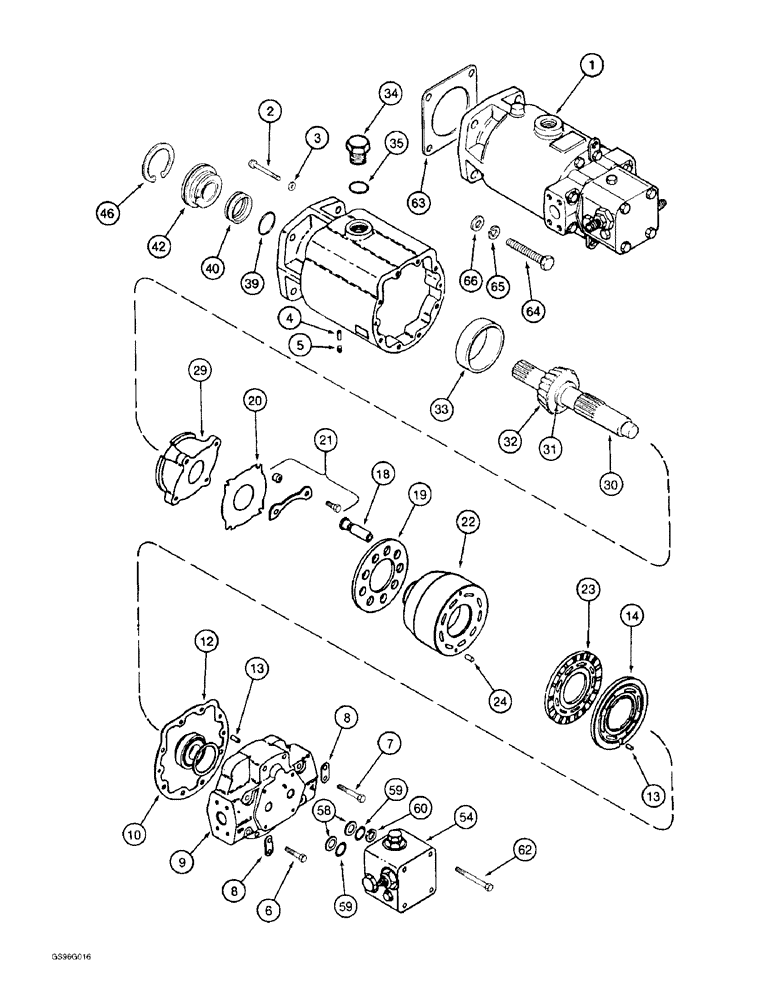

Запчасти Case IH 2022 (6-36) - HYDROSTATIC MOTOR (03) - POWER TRAIN

1286306C92

REMAN-HYDROSTAT MOTO

M0TOR ASSEMBLY - hydrostatic, remanufactured, North America only, 2022 Cotton Picker

1шт.

1978049C1

CORE-HYDROSTAT MOTOR

CORE ASSEMBLY - motor, 2022 Cotton Picker, use this number when returning pump core for credit

1шт.

1285875C92

REMAN-HYD MOTOR

MOTOR ASSEMBLY - hydrostatic, remanufactured, North America only, 2044 Cotton Picker

1шт.

1978050C1

CORE-MONITOR

CORE ASSEMBLY - motor, 2044 Cotton Picker, use this number when returning pump core for credit

1шт.

1

1286305C93

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, new, 2022 Cotton Picker

1шт.

1

1285874C93

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, new, 2044 Cotton Picker

1шт.

2

61-33148

HEX SOC SCREW,5/16"-18 x 3"

SCREW, Hex Soc Hd, 5/16"-18 x 3"

2шт.

3

92734C1

SEALING WASHER

- sealing

2шт.

4

37-1516

DOWEL,5/16" x 1"

PIN - dowel, 5/16 x 1 inch, hardened

1шт.

5

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket headless, 1/8 inch PT

1шт.

6

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

6шт.

7

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

6шт.

8

NSS

NOT SOLD SEPARAT

STRAP - shipping

2шт.

9

NSS

NOT SOLD SEPARAT

COVER - end, order motor assembly

1шт.

140760C91

SHIM KIT

KIT - bearing shim

1шт.

10

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

1шт.

10

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

1шт.

10

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

1шт.

10

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch

1шт.

10

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

1шт.

10

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

12

92735C2

GASKET

- end cover

1шт.

13

140754C1

PIN

- dowel, 5/16 x 5/8 inch

3шт.

14

92732C1

PLATE

- valve

1шт.

1978053C1

KIT

- rotating, cylinder

1шт.

18

NSS

NOT SOLD SEPARAT

PISTON - cylinder

9шт.

19

NSS

NOT SOLD SEPARAT

PLATE - retaining

1шт.

20

NSS

NOT SOLD SEPARAT

PLATE - retaining, clear

1шт.

21

NSS

NOT SOLD SEPARAT

KIT - hold down

1шт.

22

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

24

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

29

NSS

NOT SOLD SEPARAT

PLATE - swash

1шт.

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, continued

1шт.

30

1346188C1

SHAFT

ASSEMBLY - output, control valve

1шт.

31

NSS

NOT SOLD SEPARAT

RING - retaining, order shaft assembly 134188C1

1шт.

32

NSS

NOT SOLD SEPARAT

CONE - bearing, drive shaft, 1-7/8 inch ID, order shaft assembly 134188C1

1шт.

33

NSS

NOT SOLD SEPARAT

HOUSING - motor, order motor assembly

1шт.

34

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

1346205C1

SEAL KIT

SEAL ASSEMBLY - shaft, three-piece

1шт.

39

NSS

NOT SOLD SEPARAT

O-RING - shaft, order seal assembly 1346205C1

2шт.

40

NSS

NOT SOLD SEPARAT

SEAL - shaft, rotating, order seal assembly 1346205C1

1шт.

42

NSS

NOT SOLD SEPARAT

SEAL - shaft, stationary, order seal assembly 1346205C1

1шт.

46

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

50

317706C1

BEARING, CUP,88.925 mm OD x 25.6 mm

CUP - tapered roller bearing, 3-1/2 inch OD

1шт.

52

140758C91

ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"

- tapered roller, 5/8 inch ID

1шт.

53

140759C1

BEARING CUP

CUP - tapered roller bearing, 2-1/4 inch OD

1шт.

54

REF

INSTRUCTION

BLOCK ASSEMBLY - relief valve, parts list page 6-41

1шт.

140747C92

SEAL KIT

KIT - valve block seal

1шт.

58

631458C1

RING

- backup

2шт.

59

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

60

NSS

NOT SOLD SEPARAT

RING - square section, 3/4 x 7/8 x 1/16 inch, order kit 140747C92

1шт.

62

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

4шт.

63

166506C1

GASKET,0.81mm Thk

- mounting

1шт.

64

113-2410

SCREW

BOLT - hex, 1/2 NC x 1-3/4 inch (Replaces bolt 27406R1)

4шт.

65

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

66

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened 17/32" x 1 1/16" x .134"

4шт.
