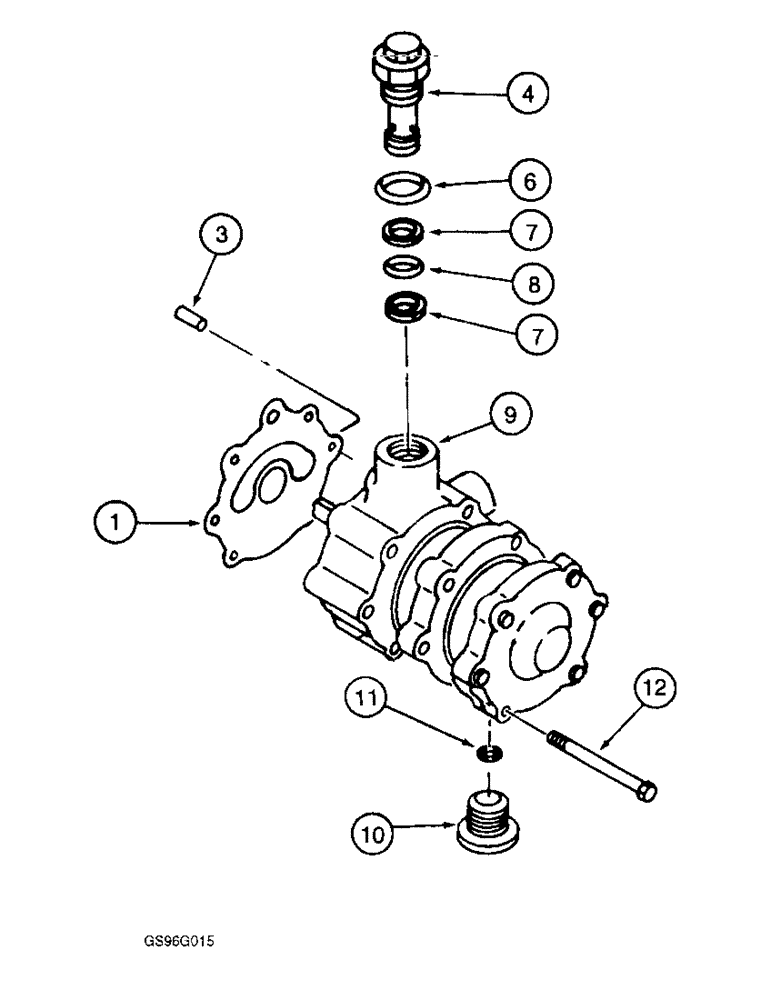

Запчасти Case IH 2022 (6-34) - HYDROSTATIC PUMP, CHARGE PUMP (03) - POWER TRAIN

133761C91

PUMP

ASSEMBLY - charge, 2022 Cotton Picker

1шт.

92740C2

PUMP

ASSEMBLY - charge, 2044 Cotton Picker (Replaces pump assembly 92740C1)

1шт.

1

133760C2

GASKET

- charge pump

1шт.

3

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

4

140771C1

VALVE

ASSEMBLY - low pressure relief

1шт.

6

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - pump, order pump assembly

1шт.

10

9672438

PLUG,7/16" - 20 ORB

1шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

12

413-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

4шт.
