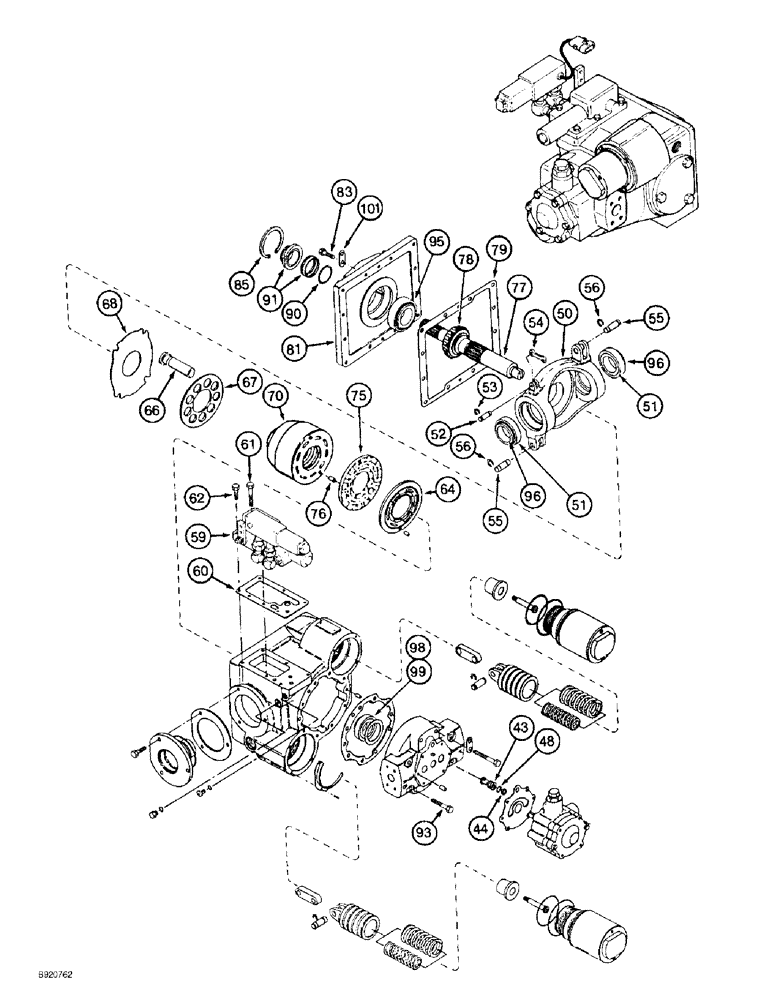

Запчасти Case IH 2022 (6-26) - HYDROSTATIC PUMP, 2022 COTTON PICKER (03) - POWER TRAIN

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, continued

1шт.

43

140769C1

CHECK VALVE

VALVE ASSEMBLY - check

2шт.

44

140770C1

RING

- backup

1шт.

48

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

50

1980163C1

HOUSING

PLATE - swash, includes item 97

1шт.

51

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP - tapered roller bearing, 2-57/64 inch OD

1шт.

52

140765C1

PIN

- pivot, control valve link

1шт.

53

100-1125

SNAP RING,#25, Ext

Ring, Snap, , control valve link pin (Replaces ring 875777R1) #25, Ext

2шт.

54

142387C1

PIPE FITTING

LINK - control valve, connecting

1шт.

55

140766C1

PIN,14.22mm OD x 39.12mm L

- pivot, servo linkage

2шт.

56

28145R1

SNAP RING,#56, Ext

Ring, Snap, , servo linkage pin #56, Ext

4шт.

59

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list page 6-33

1шт.

60

133756C1

GASKET

- control valve

1шт.

61

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

62

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

64

1980165C1

PLATE

- valve

1шт.

1980164C1

KIT

- rotating, cylinder

1шт.

66

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

67

NSS

NOT SOLD SEPARAT

PLATE - retainer

1шт.

68

NSS

NOT SOLD SEPARAT

PLATE - thrust

1шт.

70

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

75

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

76

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

77

1980162C1

SHAFT

ASSEMBLY - drive, input, includes snap ring

1шт.

78

92742C1

TAPERED BEARING

BEARING - tapered roller, 1-7/8 inch ID

1шт.

79

142414C1

GASKET

- mounting flange

1шт.

81

NSS

NOT SOLD SEPARAT

FLANGE - mounting

1шт.

83

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

12шт.

85

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

1346205C1

SEAL KIT

SEAL - shaft, three-piece

1шт.

90

NSS

NOT SOLD SEPARAT

O-RING - shaft

1шт.

91

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

93

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

2шт.

95

317706C1

BEARING, CUP,88.925 mm OD x 25.6 mm

CUP - tapered roller bearing, 3-1/2 inch OD

1шт.

96

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

BEARING - tapered roller, 1-25/32 inch ID

2шт.

97

140757C91

TAPERED BEARING,22.23mm ID x 57.17mm OD x 22.23mm W

ASSEMBLY - end cover

1шт.

98

140758C91

ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"

- tapered roller, 5/8 inch ID

1шт.

99

140759C1

BEARING CUP

CUP - tapered roller bearing, 2-1/4 inch OD

1шт.

101

NSS

NOT SOLD SEPARAT

STRAP - shipping

2шт.
