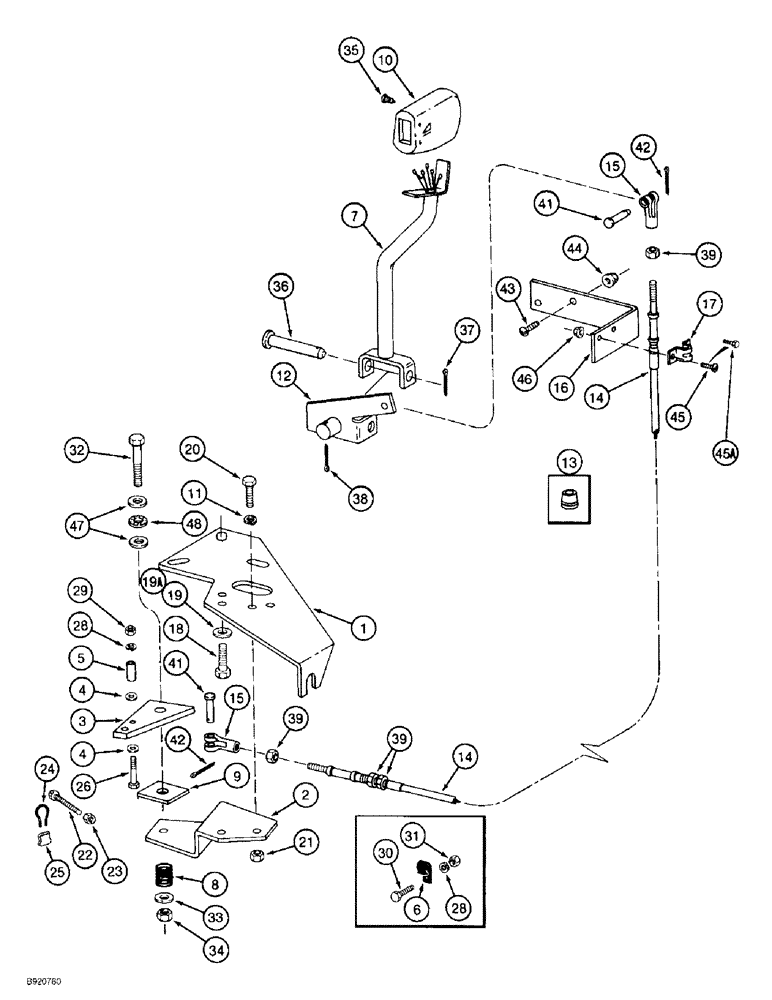

Запчасти Case IH 2022 (6-22) - PROPULSION CONTROLS (03) - POWER TRAIN

1

1980151C2

SUPPORT

- cable

1шт.

2

1270011C4

SUPPORT

- lever

1шт.

3

219716C3

BAR

LEVER - pump

1шт.

4

496-21028

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 5/64 inch, hardened

2шт.

5

11531N

SPACER,3/8" Pipe x 2"

- tubular, 3/8 x 2 inch long

1шт.

5

447688R1

SPACER,5/8" Tube x 2 1/4"

- pipe, 5/8 x 2-1/4 inch, 2022 Cotton Picker

1шт.

6

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type 1/2", Insul, 1/2" Bolt

1шт.

7

245981C3

LEVER ASSY.

LEVER - propulsion (Replaces lever 245981C2)

1шт.

8

28395H

SPRING

- control arm

1шт.

9

150627C1

FRICTION WASHER

- friction, control arm

1шт.

10

1301180C92

HANDLE

- control

1шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

1267441C1

SUPPORT ASSY.

SUPPORT - lever pivot

1шт.

13

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- rubber, 1/2 inch ID

1шт.

14

1329384C1

CABLE

- control

1шт.

15

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF

2шт.

16

193281C1

ANGLE

- control cable mounting

1шт.

17

195593C1

CLAMP

- cable

1шт.

18

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

3шт.

18

413-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5

- hex, 7/16 NC x 3-1/4 inch

3шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), 2022 Cotton Picker, if used 3/8", SAE

3шт.

19

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch, 2022 Cotton Picker, if used

3шт.

19

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16"), 2044 Cotton Picker 7/16", SAE

3шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

219618C2

BOLT

BOLT - special, 5/16 NC x 2-1/4 inch

1шт.

23

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

24

678026C1

ELECTRICAL WIRE

WIRE - lock

1шт.

25

687459C1

ELECTRICAL WIRE

SEAL - lock

1шт.

26

413-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

- hex, 1/4 NC x 4-1/2 inch

1шт.

28

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

29

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

30

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

31

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

32

424-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 2

- hex, 7/16 NC x 3-1/4 inch, grade 2

1шт.

33

495-81158

WASHER,0.47" ID x 1" OD x 0.06" Thk

- flat, 15/32 x 1 x 3/64 inch

1шт.

34

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC

1шт.

35

61-3068

HEX SOC SCREW,#6 - 32 x 1/2"

BOLT - hex socket, No. 6 NC x 1/2 inch

3шт.

36

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

PIN - clevis, 1/2 x 3-7/16 inch, hardened (Replaces pin 28258R1)

1шт.

37

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

38

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

39

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam, 5/16 inch NF

2шт.

41

327-5094

CLEVIS PIN,5/16" x .940"

PIN - clevis, 5/16 x 15/16 inch

2шт.

42

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

43

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

45

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

BOLT - serrated slotted truss head, 1/4 NC x 3/4 inch

2шт.

45

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

46

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

47

26272R1

WASHER,.469" x 59/64" x .105", HDN

- flat, 15/32 x 59/64 x 1/16 inch

2шт.

48

159688R91

THRUST BEARING

BEARING - roller, arm

1шт.

49

1344295C1

SPACER,12.5mm ID x 17.1mm OD x 10.3mm L

- pipe, 12.5 mm x 17.15 mm x 10.31 mm

3шт.
