Запчасти Case IH 2022 (6-08) - OIL COOLER AND SUPPORTS (03) - POWER TRAIN

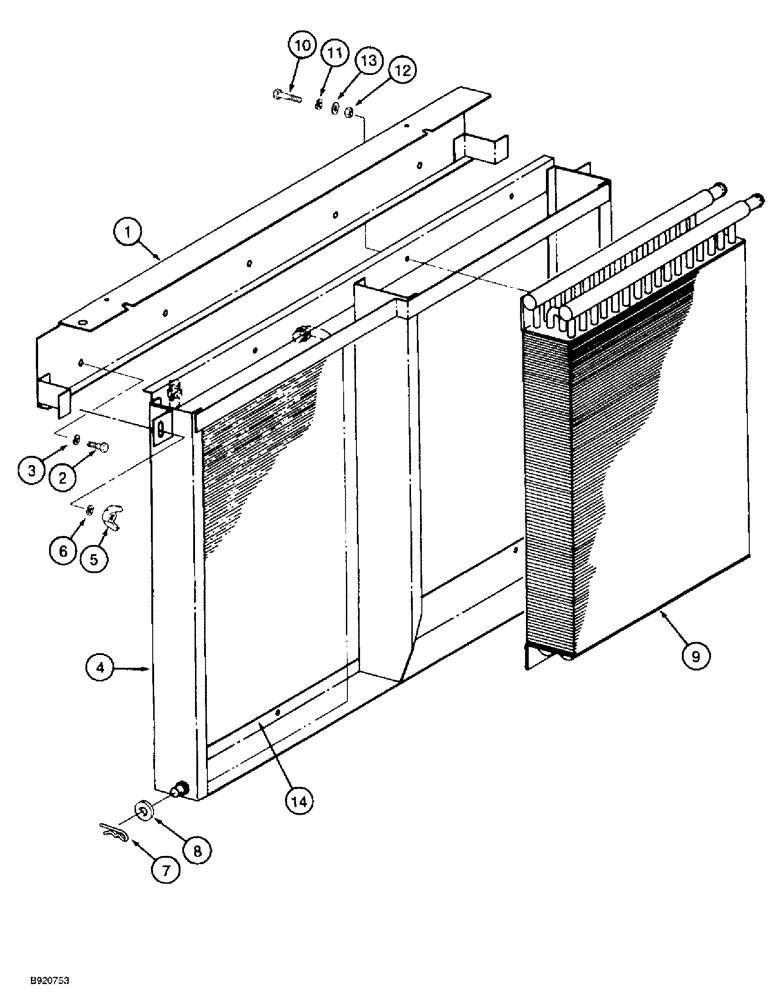

Схема запчастей Case IH 2022 - (6-08) - OIL COOLER AND SUPPORTS (03) - POWER TRAIN
5
13
4
9
3
7
2
11
14
12
6
8
1
10

Артикул

Название

Примечание

Количество

1

1262768C2

SUPPORT

- retainer

1шт.

2

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

4шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

4

1263024C2

COOLER

SUPPORT - oil cooler

1шт.

5

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC

2шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

473443R1

COTTER PIN

- hair, quick attachable

2шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

9

84358C1

COOLER

- transmission oil

1шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

13

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

5шт.

14

REF

INSTRUCTION

COIL - air conditioning condenser, see page 9E-29

1шт.

Выбрано товаров: 14
