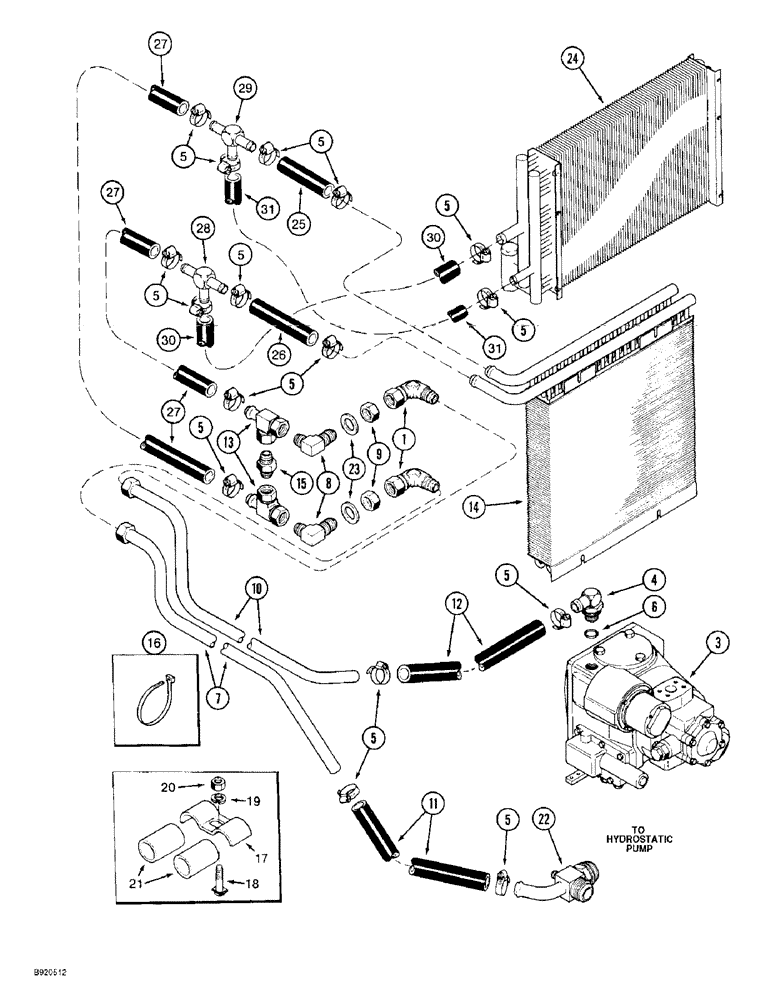

Запчасти Case IH 2022 (6-06) - AUXILIARY OIL COOLER SYSTEM, PARALLEL HYDRAULIC INSTALLATION (03) - POWER TRAIN

1

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel flare (Replaces elbow 9410285)

2шт.

3

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, parts list page 6-25 or 6-29

1шт.

4

1546404C1

ELBOW

- 90 degree, special, 1 barb end x 1-1/16 inch PT (Replaces elbow 178995C1)

1шт.

5

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

10шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

1285308C3

HYD TUBE

TUBE - cooler return

1шт.

8

218-698

ELBOW,90 Degree Blkhd, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

- 90 degree, 1-5/16-12 inch flare x bulkhead flare (Replaces elbow 86890C1)

2шт.

9

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12

2шт.

10

1285307C3

HYD TUBE,1" OD, 985.8, 269.7 mm Length

TUBE - cooler supply

1шт.

11

NSS

NOT SOLD SEPARAT

HOSE - case drain, 22 inch (559 mm) long, cut from bulk hose 364361C1 below

1шт.

See Figure Note.

1шт.

12

NSS

NOT SOLD SEPARAT

HOSE - case drain, 18 inch (457 mm) long, cut from bulk hose 364361C1 below

1шт.

See Figure Note.

1шт.

13

86893C1

FITTING

TEE - special 3-way, 1 inch

2шт.

14

84358C1

COOLER

- transmission oil, see page 6-9

1шт.

15

1343558C1

VALVE

- bypass, power guide axle

1шт.

16

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

2шт.

17

157678C1

CLAMP

- hydraulic tube

1шт.

18

111-123

CARRIAGE BOLT,1/4"- 20 x 5 1/2"

BOLT - carriage, 1/4 NC x 5-1/4 inch, grade 2

1шт.

19

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

21

1285771C1

PLASTIC-RUBBER TUBE

STRIP - tube clamp, 1 inch

2шт.

22

1971747C1

FITTING

- cross, special

1шт.

23

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

- flat, 1-11/32 x 2 x 7/64 inch

2шт.

24

84659C3

OIL COOLER

COOLER ASSEMBLY - auxiliary oil, parts list page 6-11

1шт.

25

1541799C1

HOSE

- oil cooler supply, 4-59/64 inch (125 mm) long, cut from bulk hose 364661C1 below

1шт.

See Figure Note.

1шт.

26

1541798C1

HOSE

- oil cooler return, 7-1/2 inch (190 mm) long, cut from bulk hose 364361C1 below

1шт.

See Figure Note.

1шт.

27

1329328C1

HYDRAULIC HOSE,25.40 mm ID x 1244.60 mm, SAE 30R2

25.40 mm ID x 1244.60 mm, Cooler, Cut from 364361C1 Bulk Hose

2шт.

See Figure Note.

1шт.

28

R55776

TEE - cooler supply

1шт.

29

1979672C1

TEE

- 1 inch stem end, cooler return

1шт.

30

1979822C1

LARGE HOSE

HOSE - auxiliary oil cooler return, 13-1/2 inch (343 mm) long cut from bulk hose 36431C1 below

1шт.

See Figure Note.

1шт.

31

594000R91

HOSE,19.05 mm ID x 305.00 mm, SAE 30R2 Type 1

- Auxiliary oil cooler supply - Cut from bulk hose 180720C2 below 19.05 mm ID x 305.00 mm, SAE 30R2 Type 1

1шт.

See Figure Note.

1шт.

364361C1

HOSE

- bulk, 1 (25) ID x 600 inch (15240 mm) long

1шт.

See Figure Note.

1шт.

180720C2

HOSE ASSY.

HOSE - bulk, 25 foot (7620 mm) long, sold by the piece

1шт.

See Figure Note.

1шт.
