Запчасти Case IH 2022 (6-02) - OIL COOLER SYSTEM (03) - POWER TRAIN

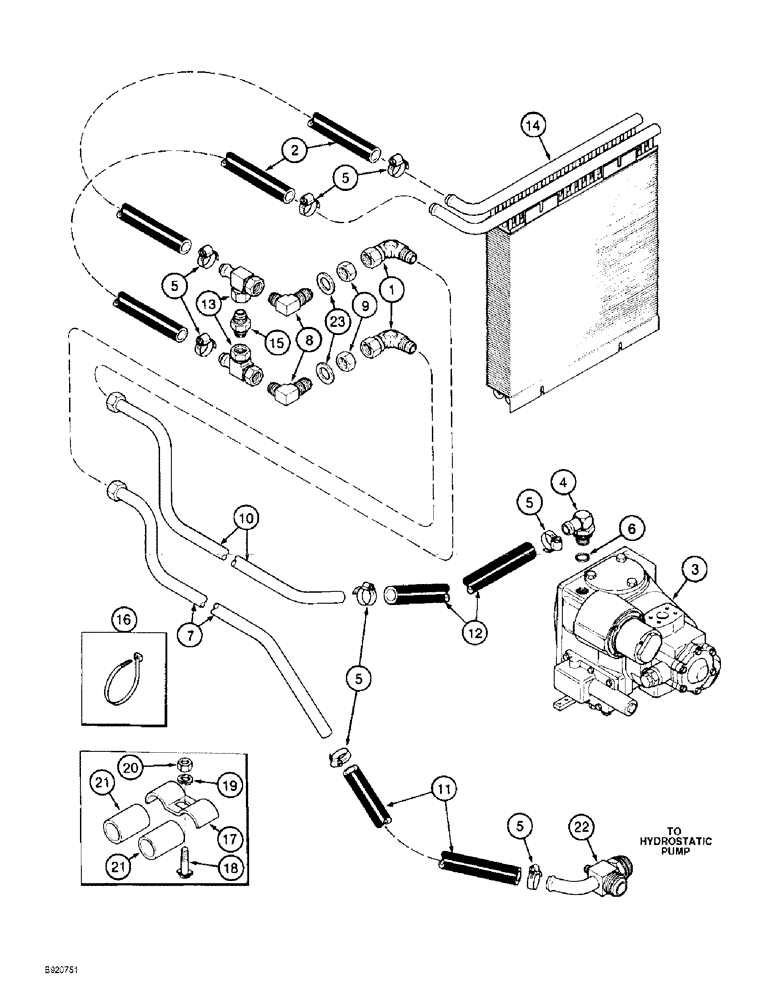

Схема запчастей Case IH 2022 - (6-02) - OIL COOLER SYSTEM (03) - POWER TRAIN
11
15
1
22
5
19
23
4
2
10
5
21
14
3
9
5
12
6
20
16
21
9
5
13
5
17
7
18

Артикул

Название

Примечание

Количество

1

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16 inch flare x swivel flare (Replaces elbow 9410285)

2шт.

2

NSS

NOT SOLD SEPARAT

HOSE - cooler, 49 inch (1245 mm) long, cut from bulk hose 364361C1 below

2шт.

See Figure Note.

1шт.

3

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, parts list page 6-25 or 6-29

1шт.

4

1546404C1

ELBOW

- 90 degree, special, 1 barb end x 1-1/16 inch PT (Replaces elbow 178995C1)

1шт.

5

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

8шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

1285308C3

HYD TUBE

TUBE - cooler return

1шт.

8

218-698

ELBOW,90 Degree Blkhd, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

- 90 degree, 1-5/16 -12 inch flare x bulkhead flare (Replaces elbow 86890C1)

2шт.

9

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12 (Replaces nut 9403298)

2шт.

10

1285307C3

HYD TUBE,1" OD, 985.8, 269.7 mm Length

TUBE - cooler supply

1шт.

11

NSS

NOT SOLD SEPARAT

HOSE - case drain, 22 inch (559 mm) long, cut from bulk hose 364361C1 below, two wheel drive units only (See Note)

1шт.

See Figure Note.

1шт.

12

NSS

NOT SOLD SEPARAT

HOSE - case drain, 18 inch (457 mm) long, cut from bulk hose 364361C1 below

1шт.

See Figure Note.

1шт.

13

86893C1

FITTING

TEE - special 3-way, 1 inch

2шт.

14

REF

INSTRUCTION

COOLER - hydraulic oil, see page 6-7

1шт.

15

86892C2

VALVE

- oil cooler check

1шт.

16

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

2шт.

17

157678C1

CLAMP

- hydraulic tube

1шт.

18

111-123

CARRIAGE BOLT,1/4"- 20 x 5 1/2"

BOLT - carriage, 1/4 NC x 5-1/4 inch, grade 2

1шт.

19

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

21

1285771C1

PLASTIC-RUBBER TUBE

STRIP - tube clamp, 1 inch

2шт.

22

1971747C1

FITTING

- cross, special, pump inlet

1шт.

23

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

- flat, 1-11/32 x 2 x 7/64 inch

2шт.

364361C1

HOSE

- bulk, 1 (25) x 600 inch (15240 mm) long

1шт.

See Figure Note.

1шт.

Выбрано товаров: 28
