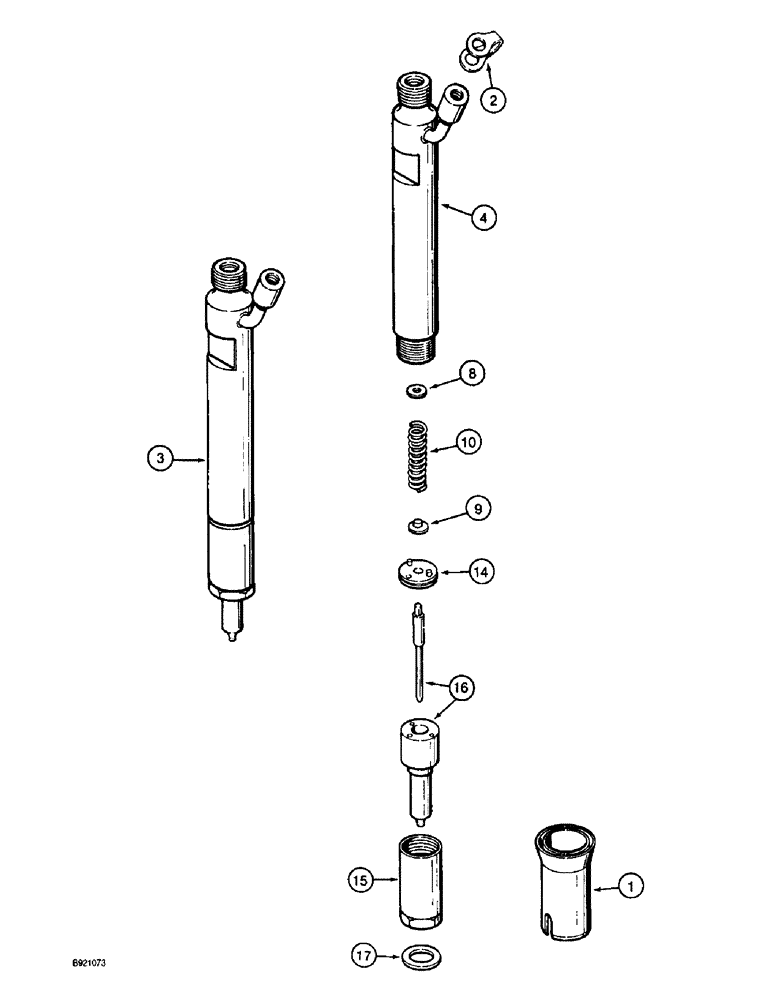

Запчасти Case IH 2022 (3-16) - FUEL INJECTION NOZZLE, 6TA-830 ENGINE (02) - FUEL SYSTEM

A77629

NOZZLE INJECTION

KIT - injector nozzle

6шт.

JR908511

REMAN-FUEL INJECTOR

Remanufactured injection nozzle

6шт.

JC908511

CORE-FUEL INJECTOR

Return Part Number injection pump

6шт.

1

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

1шт.

2

J903380

SEAL

SEAL - connector

1шт.

3

NSS

NOT SOLD SEPARAT

INJECTOR ASSEMBLY - fuel, order kit A77629

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - injector, order kit A77629

1шт.

A48186

KIT

KIT - shim starter, nozzle opening pressure, use one shim of the thickness required, no longer available, order components separately

1шт.

8

1806233C1

SHIM,1.00mm Thk

SHIM, , Nozzle 1.00mm Thk

5шт.

8

1806234C1

SHIM,1.04mm Thk

SHIM, , Nozzle 1.04mm Thk

5шт.

8

1806235C1

SHIM,1.08mm Thk

SHIM, , Nozzle 1.08mm Thk

5шт.

8

1806236C1

SHIM,1.10mm Thk

SHIM, , Nozzle 1.10mm Thk

5шт.

8

1806237C1

SHIM,1.14mm Thk

SHIM, , Nozzle 1.14mm Thk

5шт.

8

1806238C1

SHIM,1.18mm Thk

SHIM, , Nozzle 1.18mm Thk

5шт.

8

1806239C1

SHIM,1.20mm Thk

SHIM, , Nozzle 1.20mm Thk

5шт.

8

1806240C1

SHIM,1.24mm Thk

SHIM, , Nozzle 1.24mm Thk

5шт.

8

1806241C1

SHIM,1.28mm Thk

SHIM, , Nozzle 1.28mm Thk

5шт.

8

1806242C1

SHIM,1.30mm Thk

SHIM, , Nozzle 1.30mm Thk

5шт.

8

1806243C1

SHIM,1.34mm Thk

SHIM, , Nozzle 1.34mm Thk

5шт.

8

1806244C1

SHIM,1.38mm Thk

SHIM, , Nozzle 1.38mm Thk

5шт.

8

1806245C1

SHIM,1.40mm Thk

SHIM, , Nozzle 1.40mm Thk

5шт.

8

1806246C1

SHIM,1.44mm Thk

SHIM, , Nozzle 1.44mm Thk

5шт.

8

1806247C1

SHIM,1.48mm Thk

SHIM, , Nozzle 1.48mm Thk

5шт.

8

1806248C1

SHIM,1.50mm Thk

SHIM, , Nozzle 1.50mm Thk

5шт.

8

1806249C1

SHIM,1.54mm Thk

SHIM, , Nozzle 1.54mm Thk

5шт.

8

1806250C1

SHIM,1.58mm Thk

SHIM, , Nozzle 1.58mm Thk

5шт.

8

1806251C1

SHIM,1.60mm Thk

SHIM, , Nozzle 1.60mm Thk

5шт.

8

1806252C1

SHIM,1.64mm Thk

SHIM, , Nozzle 1.64mm Thk

5шт.

8

1806253C1

SHIM,1.68mm Thk

SHIM, , Nozzle 1.68mm Thk

5шт.

8

1806254C1

SHIM,1.70mm Thk

SHIM, , Nozzle 1.70mm Thk

5шт.

8

1806255C1

SHIM,1.74mm Thk

SHIM, , Nozzle 1.74mm Thk

5шт.

8

1806256C1

SHIM,1.78mm Thk

SHIM, , Nozzle 1.78mm Thk

5шт.

8

1806257C1

SHIM,1.80mm Thk

SHIM, , Nozzle 1.80mm Thk

5шт.

8

1806258C1

SHIM,1.84mm Thk

SHIM, , Nozzle 1.84mm Thk

5шт.

8

1806259C1

SHIM,1.88mm Thk

SHIM, , Nozzle 1.88mm Thk

5шт.

8

1806260C1

SHIM,1.90mm Thk

SHIM, , Nozzle 1.90mm Thk

5шт.

8

1806261C1

SHIM,1.94mm Thk

SHIM, , Nozzle 1.94mm Thk

5шт.

8

1806262C1

SHIM,1.98mm Thk

SHIM, , Nozzle 1.98mm Thk

5шт.

9

NSS

NOT SOLD SEPARAT

SEAT - nozzle pressure spring, order kit A77629

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - nozzle pressure, order kit A77629

1шт.

14

NSS

NOT SOLD SEPARAT

STOP - nozzle valve, order kit A77629

1шт.

15

NSS

NOT SOLD SEPARAT

NUT - cap, nozzle tip, order kit A77629

1шт.

16

NSS

NOT SOLD SEPARAT

TIP - injector nozzle, order kit A77629

1шт.

17

J906659

SEAL

SEAL - injector nozzle, 7 mm injector tip (See Note)

6шт.

See Figure Note.

1шт.
