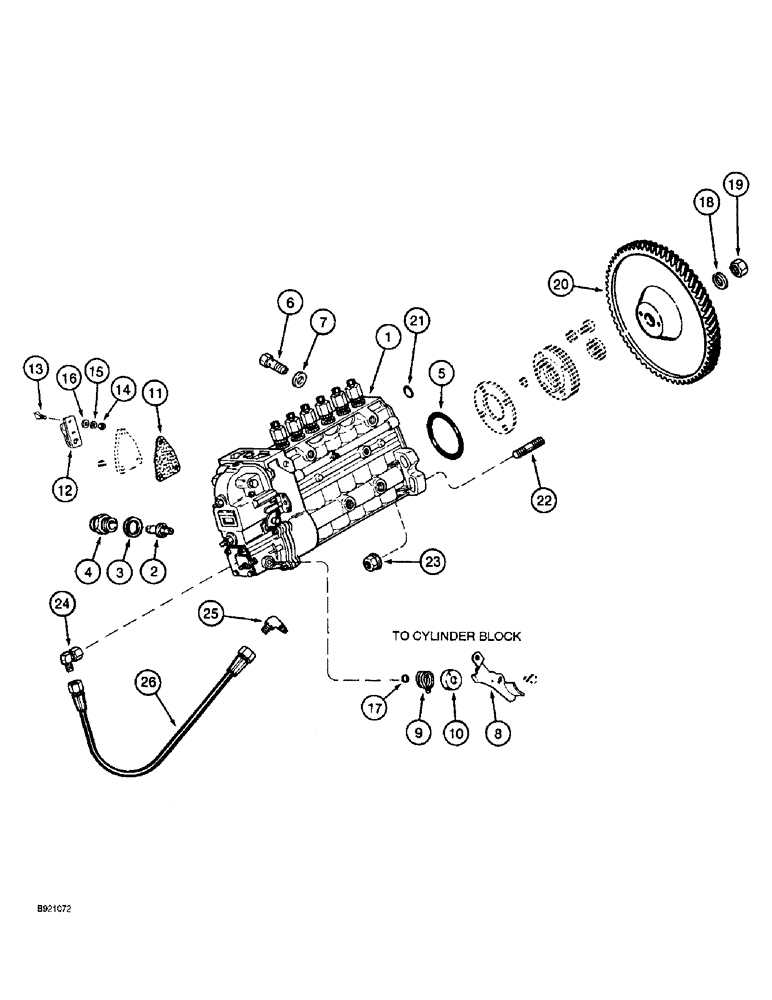

Запчасти Case IH 2022 (3-12) - FUEL INJECTION PUMP AND DRIVE, 6TA-830 ENGINE (02) - FUEL SYSTEM

JR915691

REMAN-INJECTION PUMP

PUMP ASSEMBLY - injection, remanufactured, North America only, component part shown on this page do not apply to the remanufactured assembly

1шт.

JC913339

CORE

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

J915691

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, no longer available, order remanufactured pump JR915691

1шт.

2

A77720

PIN

- timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

(Replaces washer 933222R1 ) M18 x 24 x 1.5

1шт.

4

J912888

PLUG

- timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

- sealing

1шт.

6

J912886

VALVE

- overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

8

J910979

LEVER

- pump shutoff (Replaces lever J914094)

1шт.

9

J912890

SPRING

- lever shutoff

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

A71110

GASKET

- mounting (Replaces gasket A46322 )

1шт.

12

1808728C1

LEVER

- throttle control

1шт.

13

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

14

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0, class 10

1шт.

15

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

17

680187C1

O-RING,2.5mm Thk x 9mm ID

- sealing, special

1шт.

18

A77775

LOCK WASHER

- lock

1шт.

19

A41852

LOCK NUT

- hex, self-locking

1шт.

20

J912614

GEAR

- fuel pump

1шт.

21

J916284

O-RING

- sealing, fuel injection pump

1шт.

22

J915036

STUD

- pump mounting, 55 mm (2-5/32 in)

4шт.

23

J902662

FLANGE NUT

- hex flange, 10 mm

4шт.

24

J915172

FITTING

ELBOW - 90 degree, 7/16-20 straight thread x 1/8 inch PT, pump lubrication

1шт.

25

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

90º, 7/16-20 45 degree flare x 1/8 inch PT

1шт.

26

J906747

HOSE,6.35mm ID x 508mm L

Lubrication 508.00 mm, SAE 45

1шт.
