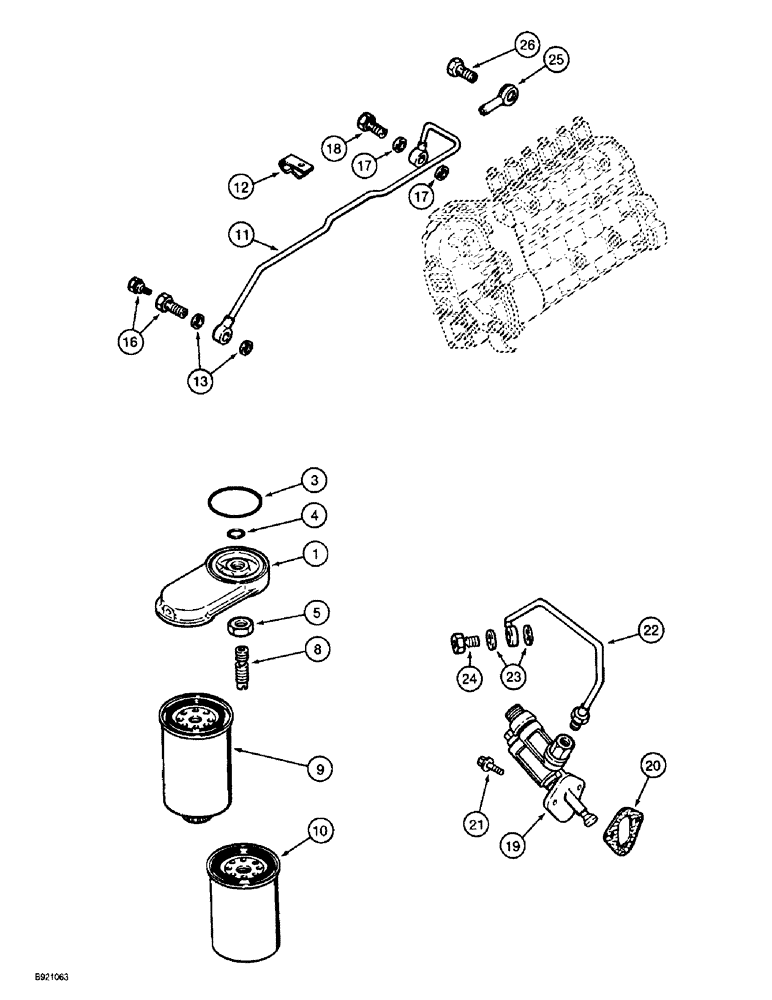

Запчасти Case IH 2022 (3-08) - FUEL FILTER AND TRANSFER PUMP, 6TA-830 ENGINE (02) - FUEL SYSTEM

1

J897331

SUPPORT

HEAD - fuel filter (Replaces head J915240)

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID, fuel filter head

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID, fuel filter stud

1шт.

5

J903293

JAM NUT

- hex, special, 16 mm - 2.0

1шт.

8

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter (Replaces adapter J903845)

1шт.

9

J925274

FILTER, FUEL

FILTER - fuel, primary (Replaces filter J903410)

1шт.

10

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

11

J925905

FUEL TUBE,8 mm OD x 5319, 919 mm L

TUBE - fuel supply (Replaces tube J912925)

1шт.

12

J914711

CLIP

CLAMP - P-type (Replaces clip A77436)

1шт.

13

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

16

J905860

BANJO BOLT

BOLT - banjo hex, special

1шт.

17

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

2шт.

18

J907541

BANJO BOLT

BOLT - banjo connector

1шт.

19

J930201

FEED PUMP

PUMP - fuel lift and transfer, see item 27 for repair kit (Replaces pump J917998)

1шт.

20

J923054

GASKET

- mounting, fuel transfer pump (Replaces gasket J914304)

1шт.

21

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

22

J906790

FUEL TUBE,8 mm OD x 306.3 mm L

TUBE - supply

1шт.

23

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

24

J916361

BANJO BOLT

BOLT - banjo connector, 12 - 1.5 x 24 mm (Replaces bolt J911446)

1шт.

25

J911447

CONNECTOR, ELEC

CONNECTOR - banjo, fuel return

1шт.

26

J913681

BANJO BOLT

VALVE - bolt, overflow

1шт.

27

J926764

GASKET KIT

KIT - repair, seal, lift pump, not shown (Replace kit J920544)

1шт.

28

NSS

NOT SOLD SEPARAT

VALVE - check, order kit J926764

2шт.

29

NSS

NOT SOLD SEPARAT

GASKET - check valve, order kit J926764

2шт.

30

NSS

NOT SOLD SEPARAT

O-RING - seal, order kit J926764

1шт.

31

NSS

NOT SOLD SEPARAT

O-RING - seal, order kit J926764

3шт.

32

NSS

NOT SOLD SEPARAT

O-RING - seal, order kit J926764

1шт.
