Запчасти Case IH 2022 (3-02) - FUEL INJECTION SYSTEM, 6TA-590 ENGINE (02) - FUEL SYSTEM

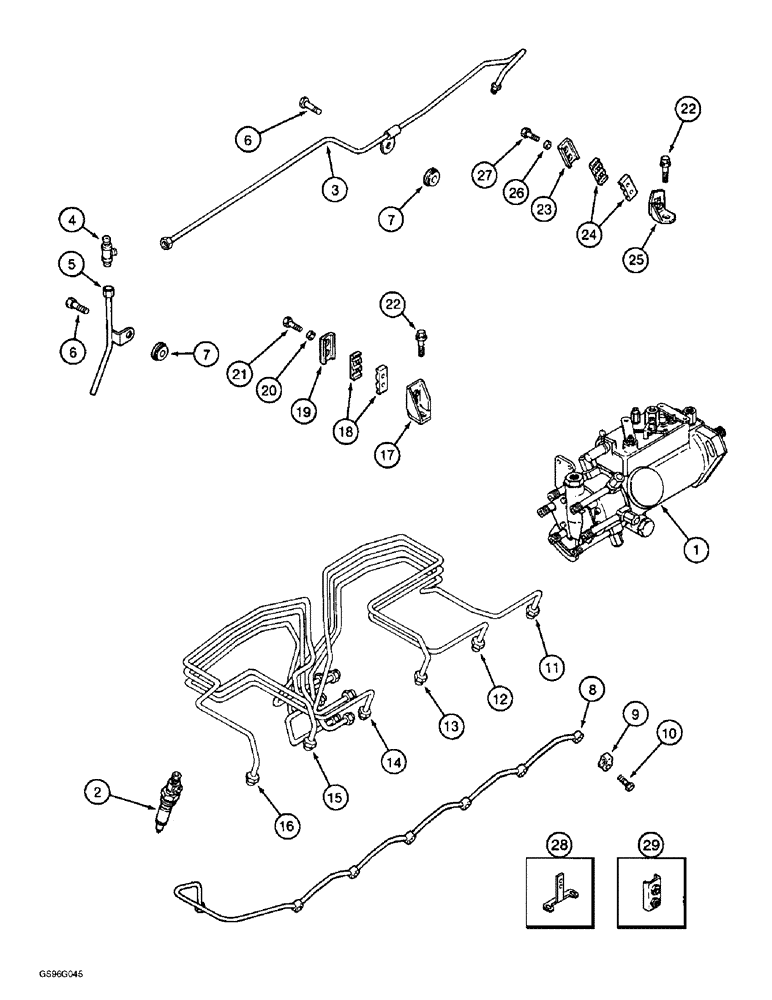

Схема запчастей Case IH 2022 - (3-02) - FUEL INJECTION SYSTEM, 6TA-590 ENGINE (02) - FUEL SYSTEM
15
3
26
12
19
1
2
29
6
4
27
11
24
21
14
20
22
9
25
5
7
28
8
10
13
18
7
23
6
22
17
16

Артикул

Название

Примечание

Количество

1

J915155

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, parts list page 3-11

1шт.

2

J919332

INJECTOR ASSY.

NOZZLE ASSEMBLY - fuel injection, parts list page 3-15

6шт.

2

JR919332

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

6шт.

2

JC919332

CORE-FUEL INJECTOR

Return No, INJECTION NOZZLE

6шт.

3

J920891

FUEL TUBE,4.76 mm OD x 909.3 mm L

TUBE - fuel drain (Replaces tube J905709)

1шт.

4

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing (See Note)

1шт.

See Figure Note.

1шт.

5

J905692

FUEL TUBE

TUBE - fuel return, tee to fuel tank

1шт.

6

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

7

J928759

SEALING WASHER

- cover bolt (Replaces seal J900267)

2шт.

8

J909696

TUBE

TUBE - manifold, fuel drain

1шт.

9

J903380

SEAL

- connector

6шт.

10

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

11

J914043

FUEL TUBE,2 mm ID x 6.4 mm OD x 863.6 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

12

J914044

FUEL TUBE,2 mm ID x 6.4 mm OD x 863.6 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

13

J914090

FUEL TUBE,2 mm ID x 6.4 mm OD

TUBE - fuel injector, No. 3 cylinder

1шт.

14

J914045

FUEL TUBE,2 mm ID x 6.4 mm OD x 863.6 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

15

J914046

FUEL TUBE,2 mm ID x 6.4 mm OD x 863.6 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

16

J914091

FUEL TUBE,2 mm ID x 6.4 mm OD

TUBE - fuel injector, No. 6 cylinder

1шт.

A77494

BRACKET

ASSEMBLY - fuel tube, no longer available, order components

2шт.

17

J917777

BRACE

- fuel tube

1шт.

18

J917747

CLAMP

- fuel tube

2шт.

19

J904519

SUPPORT

BRACE - tube retaining

1шт.

20

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

(Replaces washer J903723) M5 x 10 x 1

2шт.

21

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, (Replaces bolt J917712) Hex Hd, M5 x .8 x 20, w/LW

2шт.

22

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special Hex Flg Hd, M8 x 1.25 x 25

3шт.

A77529

BRACKET

ASSEMBLY - fuel tube, no longer available, order components

1шт.

23

J904519

SUPPORT

BRACE - tube retaining

1шт.

24

J917747

CLAMP

- fuel tube

2шт.

25

J917778

BRACE

- fuel tube

1шт.

26

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

(Replaces washer J903723) M5 x 10 x 1

2шт.

27

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, (Replaces bolt J917712) Hex Hd, M5 x .8 x 20, w/LW

2шт.

28

J924974

SUPPORT

BRACKET - tube (Replaces bracket J922055)

1шт.

29

J917716

BRACE

BRACKET - fuel tube, supply

1шт.

Выбрано товаров: 34
