Запчасти Case IH 2022 (2-90) - ENGINE GASKET KITS, 6TA-830 ENGINE, VALVE GRIND (01) - ENGINE

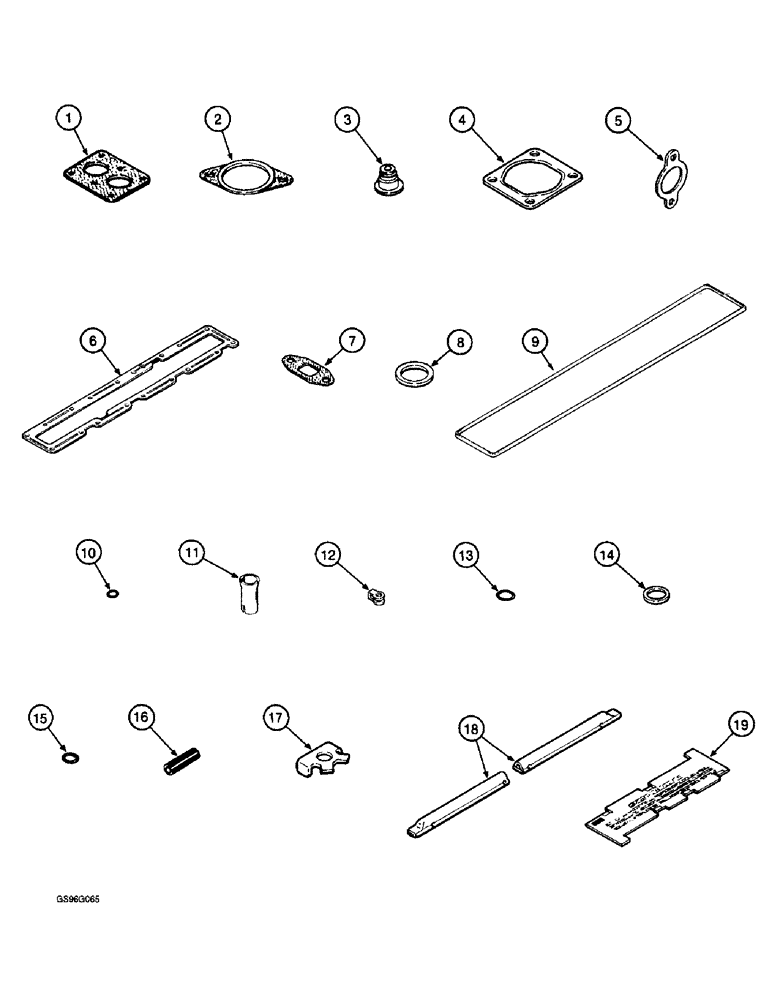

Схема запчастей Case IH 2022 - (2-90) - ENGINE GASKET KITS, 6TA-830 ENGINE, VALVE GRIND (01) - ENGINE
1
14
2
16
15
5
3
7
10
8
17
9
19
18
6
4
12
13
11

Артикул

Название

Примечание

Количество

A77794

GASKET KIT

KIT - gasket, valve grind (Replaces kit A77678)

1шт.

See Figure Note.

1шт.

1

J914310

GASKET,0.8mm Thk

- thermostat housing

1шт.

2

J918779

GASKET,1.19mm Thk

- outlet tube, water (Replaces gasket A77705)

1шт.

3

J915707

SEAL

- intake and exhaust valve stem and guide

12шт.

4

J911941

GASKET

- mounting, turbocharger

1шт.

5

J929012

GASKET,0.5mm Thk

- exhaust manifold, 1.27 - 1.40 mm thick (Replaces kit J911942)

6шт.

6

J914311

MANIFOLD GASKET

- cover, intake manifold

1шт.

7

J928919

GASKET

- turbocharger oil drain tube (Replaces gasket J914388)

1шт.

8

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - sealing, oil fill cap

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

SEAL - valve cover

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

6шт.

12

J903380

SEAL

- connector, banjo

7шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Breather hose -115, 70 Duro, .674" ID x .103" Thk

1шт.

14

J906659

SEAL

- injector nozzle, 7 mm injector tip

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Thermostat housing filter shutoff -111, 70 Duro, .424" ID x .103" Thk

1шт.

16

J918610

HOSE,19.05 mm ID x 51.00 mm

Breather 19.05 mm ID x 51.00 mm

1шт.

17

J914708

LOCKING PLATE

PLATE - locking, bolt

1шт.

18

J919677

TUBE

- oil, rocker arm

1шт.

19

J823921

GAUGE

- cylinder head, bolt length

1шт.

Выбрано товаров: 21
