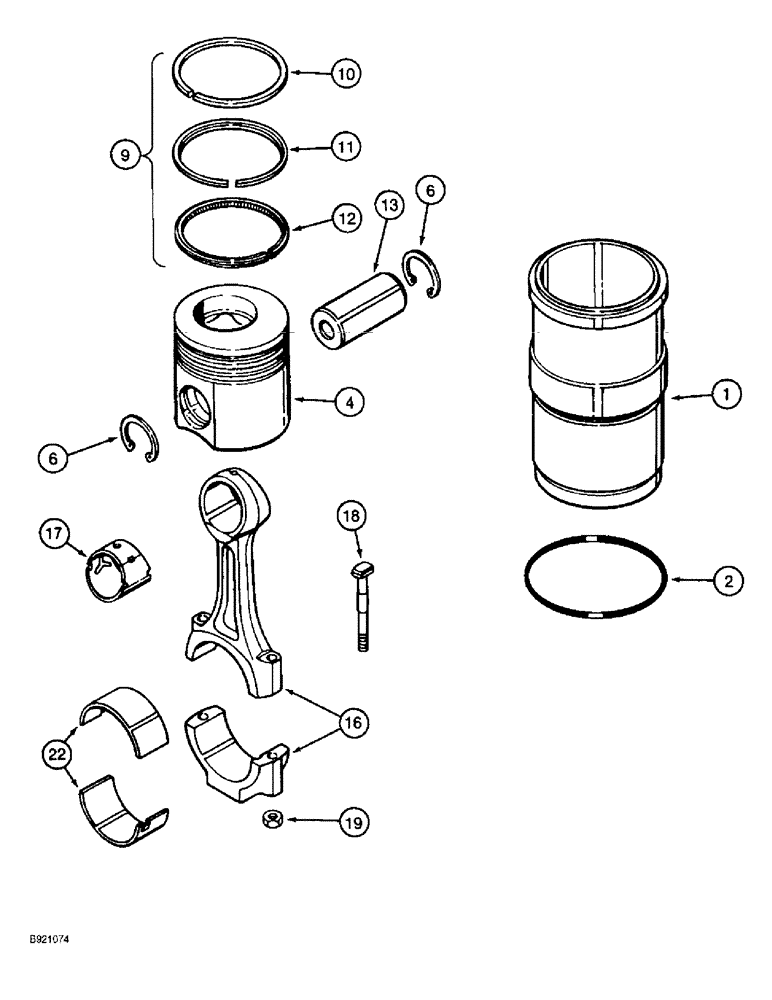

Запчасти Case IH 2022 (2-84) - PISTON AND SLEEVE, 6TA-830 ENGINE (01) - ENGINE

A77774

PACKAGE, REPAIR

KIT - piston and sleeve

1шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve

1шт.

A77773

PISTON ASSY.

KIT - piston, engine, standard

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9565, order kit A77773

1шт.

6

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, 1.75", Int, #175

2шт.

9

A77802

PISTON RING SET

KIT - ring, piston (Replaces kit A77744)

1шт.

10

NSS

NOT SOLD SEPARAT

RING - compression, top, order kit A77802

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression, middle, order kit A77802

1шт.

12

NSS

NOT SOLD SEPARAT

RING - oil, bottom, order kit A77802

1шт.

13

J901597

PIN

- piston

1шт.

A77799

PACKAGE, REPAIR

KIT - piston and sleeve, engine

1шт.

1

J919937

SLEEVE CYLINDER,114.02mm ID x 130.66mm OD x 237.12mm L

SLEEVE - piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve

1шт.

A77773

PISTON ASSY.

KIT - piston, engine, standard

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9930, order kit A77773

1шт.

6

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, 1.75", Int, #175

2шт.

9

A77802

PISTON RING SET

KIT - ring, piston (Replaces kit A77744)

1шт.

10

NSS

NOT SOLD SEPARAT

RING - compression, top, order kit A77802

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression, middle, order kit A77802

1шт.

12

NSS

NOT SOLD SEPARAT

RING - oil, bottom, order kit A77802

1шт.

13

J901597

PIN

- piston

1шт.

16

JR901383

REMAN-CONNECTING ROD

ROD ASSEMBLY - connecting, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly

6шт.

16

JC901383

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return connecting rod for credit when using a remanufactured assembly

6шт.

16

J901383

CONNECTING ROD

ROD ASSEMBLY - connecting

6шт.

84487529R

REMAN-CONNECTING ROD

2022, 2044 Both(11/90-), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

17

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

- connecting rod

1шт.

18

J928870

ROD

- rod (Replaces bolts J901380 and J924351) CONNECTING

2шт.

19

J901381

SPECIAL NUT

- hex, rod bolt CONNECTING

2шт.

22

A77563

BEARING SET

KIT - bearing, upper and lower, standard CONNECTING RODS

6шт.

22

A77564

BEARING SET

KIT - bearing, upper and lower, 0.25 mm undersize CONNECTING RODS

6шт.

22

A77565

BEARING SET

KIT - bearing, upper and lower, 0.50 mm undersize CONNECTING RODS

6шт.

22

A77566

BEARING SET

KIT - bearing, upper and lower, 0.75 mm undersize CONNECTING RODS

6шт.

22

A77567

BEARING SET

KIT - bearing, upper and lower, 1.00 mm undersize CONNECTING RODS

6шт.
