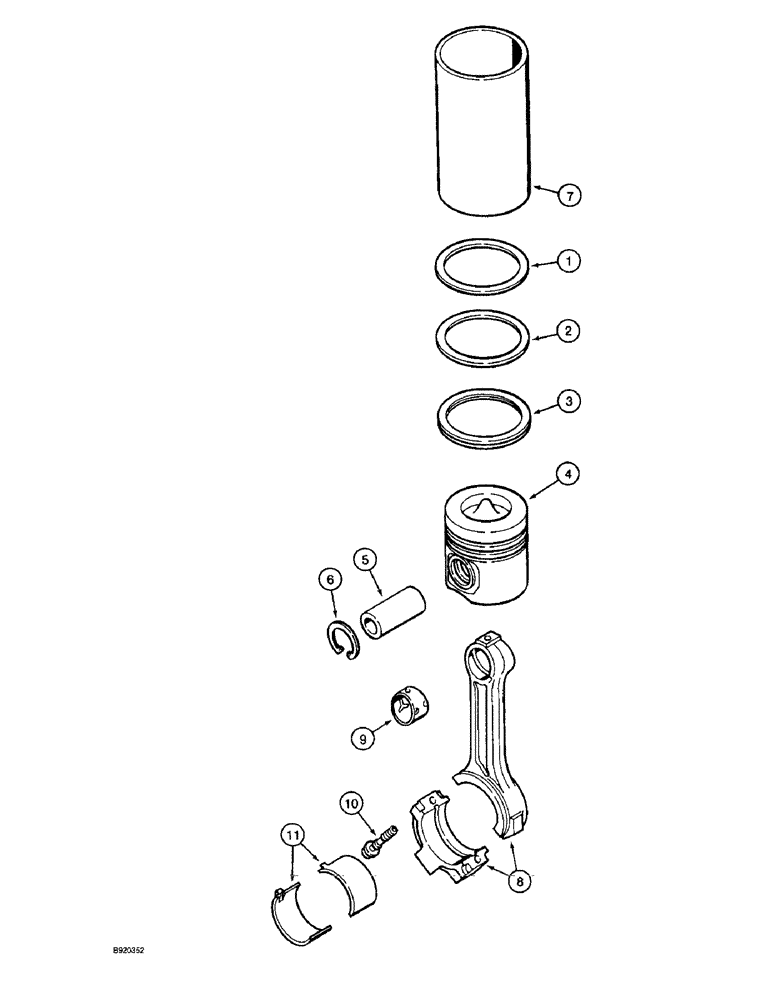

Запчасти Case IH 2022 (2-82) - PISTONS AND CONNECTING RODS, 6TA-590 ENGINE (01) - ENGINE

A77733

PISTON

KIT - piston, standard

6шт.

A77727

PISTON RING SET

KIT - ring, standard

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top, order kit A77727

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle, order kit A77727

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom, order kit A77727

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, standard, stamped 7156, order kit A77733

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

A77734

PISTON

KIT - piston, 0.5 mm oversize

6шт.

A77728

PISTON RING SET

KIT - ring

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top, order kit A77728

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle, order kit A77728

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom, order kit A77728

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 0.5 mm oversize, stamped 7157, order kit A77734

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

A77735

PISTON

KIT - piston, 1.00 mm oversize

6шт.

A77729

PISTON RING SET

KIT - ring

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top, order kit A77729

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle, order kit A77729

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom, order kit A77729

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.0 mm oversize, stamped 7158, order kit A77735

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

7

J904166

SLEEVE

LINER - piston, used only in engine block repair

1шт.

8

J925232

ROD, CONNECTING

ROD ASSEMBLY - connecting, new (Replaces rod assembly J901569)

6шт.

8

JR925232

ROD

Assembly - connecting, remanufactured, component parts shown on this page do not apply to the remanufactured assembly (Replaces rod assembly JR901569)

6шт.

8

JC925232

CORE-ROD CONNECTING

Return Number

6шт.

8

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

8

JC942581

CORE-ROD CONNECTING

Return Number

6шт.

8

84145405R

REMAN-CONNECTING ROD

2022, 2044, Both (11/90-), Reman For New PN J925232

6шт.

8

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

8

JC901569

CORE-ROD CONNECTING

Return Number - use this part number to return connecting rod for credit when using a remanufactured assembly, no longer used

6шт.

9

J901085

BUSHING

- connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex, special CONNECTING RODS

2шт.

11

A77465

BEARING SET

KIT - bearing, upper and lower set, standard, set of two CONNECTING RODS

6шт.

11

A77466

BEARING SET

KIT - bearing, upper and lower set, 0.25 mm oversize, set of two CONNECTING RODS

6шт.

11

A77467

BEARING LINER

KIT - bearing, upper and lower set, 0.50 mm oversize, set of two CONNECTING RODS

6шт.

11

A77468

BEARING SET

KIT - bearing, upper and lower set, 0.75 mm oversize, set of two CONNECTING RODS

6шт.

11

A77469

BEARING SET

KIT - bearing, upper and lower set, 1.00 mm oversize, set of two CONNECTING RODS

6шт.
