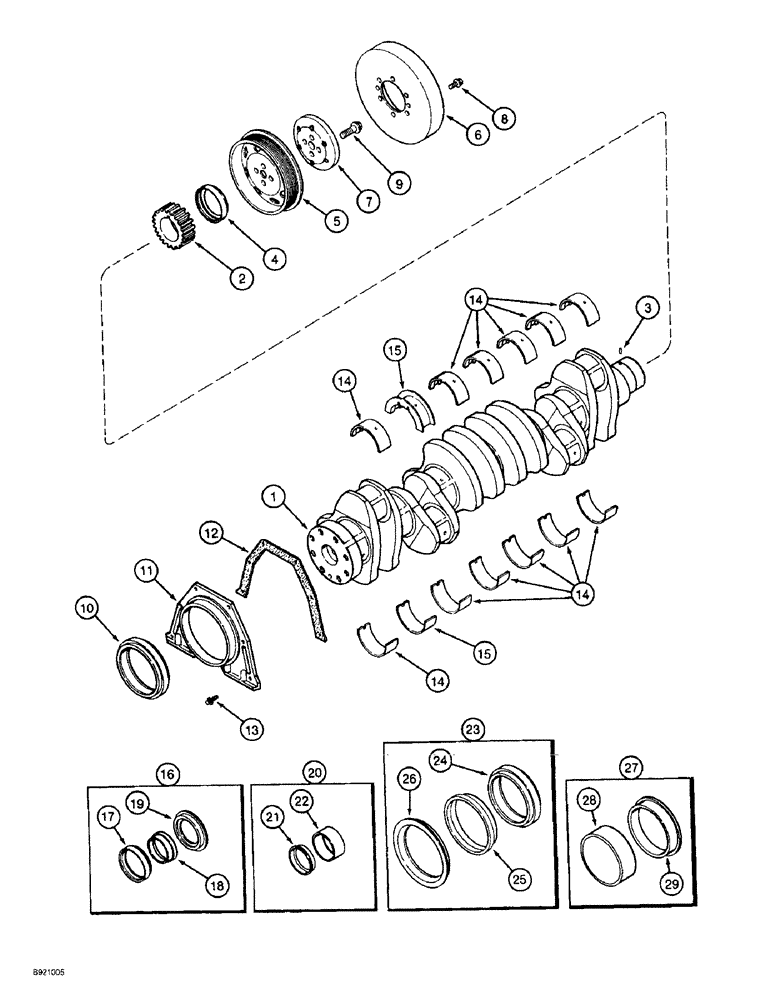

Запчасти Case IH 2022 (2-74) - CRANKSHAFT, 6TA-590 ENGINE (01) - ENGINE

JR918324

CRANKCASE

CRANKSHAFT ASSEMBLY - engine, remanufactured, North America only, no longer available, order new crankshaft assembly J918324

1шт.

JR908032

REMAN-CRANKSHAFT

CRANKSHAFT ASSEMBLY - engine, remanufactured, component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC908032

CORE-CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft core for credit when using a remanufactured assembly

1шт.

1

J918324

CRANKSHAFT

ASSEMBLY - engine, new

1шт.

2

J929027

PINION

GEAR - crankshaft (Replaces gear J919681)

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, front crankshaft, order kit J904353, item 16

1шт.

5

J914494

PULLEY,181.25mm OD

- crankshaft vibration damper

1шт.

6

J915069

DAMPER

- vibration

1шт.

7

J915070

SPACER

ADAPTER - crankshaft

1шт.

8

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

6шт.

9

J903857

BOLT,Hex, M12 x 1.25 x 36mm

- hex flange, special, 12 - 1.25 x 36 mm

4шт.

10

NSS

NOT SOLD SEPARAT

SEAL - oil, rear crankshaft, order item 23 kit

1шт.

11

J921043

REAR COVER

RETAINER - seal, rear cover (Replaces retainer J913447)

1шт.

12

J928493

GASKET

- rear cover retainer (Replaces gasket J914386)

1шт.

13

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

14

A77405

CRANKSHAFT BEARING

BEARING - main, upper and lower set, standard

6шт.

14

A77472

BEARING SET

BEARING - main, upper and lower set, 0.25 mm undersize

6шт.

14

A77474

BEARING SET

BEARING - main, upper and lower set, 0.50 mm undersize

6шт.

14

A77476

BEARING SET

BEARING - main, upper and lower set, 0.75 mm undersize

6шт.

14

A77478

BEARING SET

BEARING - main, upper and lower set, 1.00 mm undersize

6шт.

15

A77406

CRANKSHAFT BEARING

BEARING - main thrust, upper and lower set, standard

1шт.

15

A77473

THRUST BEARING

BEARING - main thrust, upper and lower set, 0.25 mm undersize

1шт.

15

A77475

THRUST BEARING

BEARING - main thrust, upper and lower set, 0.50 mm undersize

1шт.

15

A77477

THRUST BEARING

BEARING - main thrust, upper and lower set, 0.75 mm undersize

1шт.

15

A77479

THRUST BEARING

BEARING - main thrust, upper and lower set, 1.00 mm undersize

1шт.

15

A77840

THRUST BEARING

BEARING - main thrust, upper and lower set, 1.00 mm undersize, with 1.00 mm oversize thrust

6шт.

15

A77841

THRUST BEARING

BEARING - main thrust, upper and lower set, 0.50 mm undersize, with 0.50 mm oversize thrust

6шт.

16

J904353

GASKET KIT

KIT - oil seal, crankshaft front

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - oil, front, order kit J904353

1шт.

18

NSS

NOT SOLD SEPARAT

TOOL - installation, order kit J904353

1шт.

19

NSS

NOT SOLD SEPARAT

TOOL - installation, order kit J904353

1шт.

20

J906080

PACKAGE, REPAIR

SLEEVE ASSEMBLY - wear, crankshaft front

1шт.

21

NSS

NOT SOLD SEPARAT

SLEEVE - wear, order sleeve assembly J906080

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation, order sleeve assembly J906080

1шт.

23

A77809

GASKET KIT

KIT - seal, oil, crankshaft rear (Replaces kit J909410); Tool No Longer Included in Kit, Available from OTC

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, order kit A77809

1шт.

25

NSS

NOT SOLD SEPARAT

SLEEVE, order kit A77809

1шт.

26

NSS

NOT SOLD SEPARAT

TOOL - installation, order kit A77809

1шт.

27

J906081

SLEEVE

KIT - wear sleeve, crankshaft rear

1шт.

28

NSS

NOT SOLD SEPARAT

SLEEVE - wear, order kit J906081

1шт.

29

NSS

NOT SOLD SEPARAT

TOOL - installation, order kit J906081

1шт.
