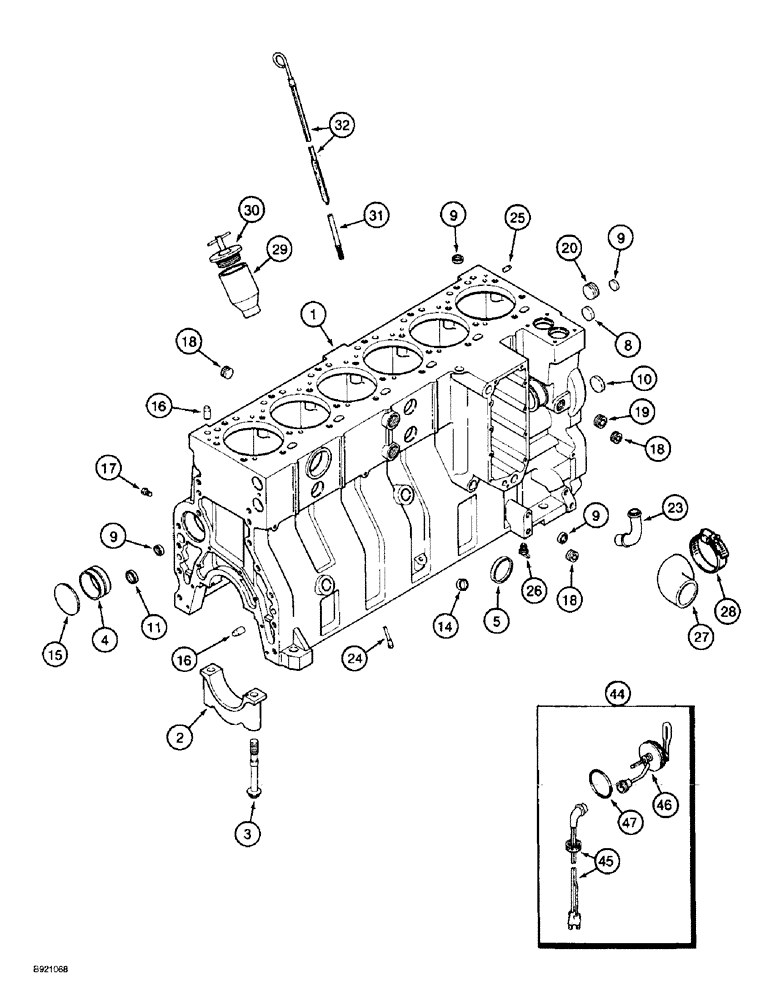

Запчасти Case IH 2022 (2-66) - CYLINDER BLOCK, 6TA-830 ENGINE, PRIOR TO ENGINE SERIAL NUMBER 44706126 (01) - ENGINE

1989017C4

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, for service order 1989099C3 basic engine below

1шт.

1989017C3R

REMAN-REPLACEMENT EN

1шт.

6TA-830C

CORE-REPLACEMENT ENG

Return Part Number, KNOWN POTENTIAL CORE VARIATIONS, REFER TO CORE CRITERIA FOR PROPER CORE IDENTIFICATION

1шт.

AR174399

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

AC174399

CORE-BASIC ENGINE

Return Part Number, KNOWN POTENTIAL CORE VARIATIONS, REFER TO CORE CRITERIA FOR PROPER CORE IDENTIFICATION

1шт.

1989099C3

BASIC ENGINE

1шт.

ENGINE ASSEMBLY - basic, new, includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner, turbocharger and aftercooler (Replaces engine assembly 1989099C1)

1шт.

JR921058

SKELETON ENGINE

Block Assembly - engine short, remanufactured no longer available, order block assembly J926151

1шт.

JC921057

CORE-SHORT ENGINE

Return Part Number - engine short block, use this part number to return short block core for credit when using a remanufactured assembly

1шт.

J921058

CRANKCASE

BLOCK ASSEMBLY - short, engine, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, no longer available, order block assembly J926151 below

1шт.

See Figure Note.

1шт.

JR919374

CRANKCASE

Block Assembly - stripped engine, remanufactured no longer available, order block assembly J920036 below

1шт.

JC919374

CORE-ENGINE

Return Part Number - stripped block, use this part number to return stripped core for credit when using a remanufactured assembly

1шт.

J926151

SKELETON ENGINE

BLOCK ASSEMBLY - short, new

1шт.

1

J920036

CYLINDER BLOCK

BLOCK ASSEMBLY - stripped engine, no longer available (See Note)

1шт.

See Figure Note.

1шт.

1

J919374

BLOCK

BLOCK ASSEMBLY - stripped engine, no longer available, order block assembly J920036 above

1шт.

See Figure Note.

1шт.

2

J917313

BEARING CAP

CAP - bearing, main

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

SCREW, Hex Flg Hd, M14 x 128

14шт.

4

REF

INSTRUCTION

BUSHING - camshaft front, see page 2-61, item 6

7шт.

5

A77782

PLUG

PLUG - expansion, 58 mm OD (Replaces plug J900965)

1шт.

8

A77586

PLUG

PLUG - expansion, 28.9 mm OD

1шт.

9

A77506

PLUG

PLUG - expansion, 21 mm O.D.

4шт.

10

J905401

PLUG

PLUG - expansion, 35 mm OD

4шт.

A77716

BLOCK

KIT - block hardware, no longer available, order components separately CYLINDER BLOCK 6TA-830 PRIOR TO ENGINE SERIAL NUMBER 44706126

1шт.

11

A77530

PLUG

PLUG - expansion, 30 mm OD CYLINDER BLOCK 6TA-830PRIOR TO ENGINE SERIAL NUMBER 44706126

2шт.

14

A77439

PLUG

PLUG - expansion, 22 mm OD CYLINDER BLOCK 6TA-830 PRIOR TO ENGINE SERIAL NUMBER 44706126

1шт.

15

41-3044

PLUG,Exp, 2 3/4"

PLUG, , Cylinder Block 6TA-830 prior to Engine S/N 44706126 Exp, 2 3/4"

1шт.

16

J901846

PIN,12.01mm OD x 24mm L

PIN - dowel CYLINDER BLOCK 6TA-830 PRIOR TO ENGINE SERIAL NUMBER 44706126

4шт.

17

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT CYLINDER BLOCK 6TA-830 PRIOR TO ENGINE SERIAL NUMBER 44706126

6шт.

18

A77429

PLUG

PLUG - hex socket, 1/2 inch PT CYLINDER BLOCK 6TA-830 PRIOR TO ENGINE SERIAL NUMBER 44706126

4шт.

19

A77505

PLUG

PLUG - hex socket, 3/4 inch PT CYLINDER BLOCK 6TA-830 PRIOR TO ENGINE SERIAL NUMBER 44706126

2шт.

20

A77533

PLUG

PLUG - hex socket, 1 inch PT CYLINDER BLOCK 6TA-830 PRIOR TO ENGINE SERIAL NUMBER 44706126

1шт.

23

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain CYLINDER BLOCK 6TA-830 PRIOR TO ENGINE SERIAL NUMBER 44706126

1шт.

24

J919003

NOZZLE INJECTION

NOZZLE - piston cooling CYLINDER BLOCK 6TA-830 PRIOR TO ENGINE SERIAL NUMBER 44706126

12шт.

25

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long CYLINDER BLOCK 6TA-830 PRIOR TO ENGINE SERIAL NUMBER 44706126

2шт.

26

217-103

COCK, DRAIN

VALVE - 1/4 inch PT, drain, coolant (Replaces valve A77425) CYLINDER BLOCK 6TA-830 PRIOR TO ENGINE SERIAL NUMBER 44706126

1шт.

27

J920762

ELBOW

HOSE - elbow, water (Replaces hose J909389) CYLINDER BLOCK 6TA-830 PRIOR TO ENGINE SERIAL NUMBER 44706126

1шт.

28

J918521

HOSE CLAMP,59mm - 83mm

CLAMP - adjustable, 1-13/16 - 2-3/4 inch diameter CYLINDER BLOCK 6TA-830 PRIOR TO ENGINE SERIAL NUMBER 44706126

1шт.

29

J905408

TUBE,35.13 mm ID x 52.39 mm OD x 100 mm L

TUBE - oil filler CYLINDER BLOCK 6TA-830 PRIOR TO ENGINE SERIAL NUMBER 44706126

1шт.

30

A77424

FILLER CAP

CAP - oil fill tube CYLINDER BLOCK 6TA-830 PRIOR TO ENGINE SERIAL NUMBER 44706126

1шт.

31

J905425

TUBE,9.52 mm OD x 93 mm L

TUBE - dipstick, oil CYLINDER BLOCK 6TA-830 PRIOR TO ENGINE SERIAL NUMBER 44706126

1шт.

32

J906757

DIPSTICK

DIPSTICK - oil gauge CYLINDER BLOCK 6TA-830 PRIOR TO ENGINE SERIAL NUMBER 44706126

1шт.

44

196804A1

KIT

KIT - engine block heater (Replaces kit A77595)

1шт.

45

196466A1

ELECTRIC CABLE

CABLE - engine block heater (Replaces cable J905113)

1шт.

46

NSS

NOT SOLD SEPARAT

ELEMENT - heater, order kit 196804A1 ENGINE BLOCK

1шт.

47

J910517

O-RING

O-RING - heater sealing, included with kit A77595 only ENGINE BLOCK

1шт.
