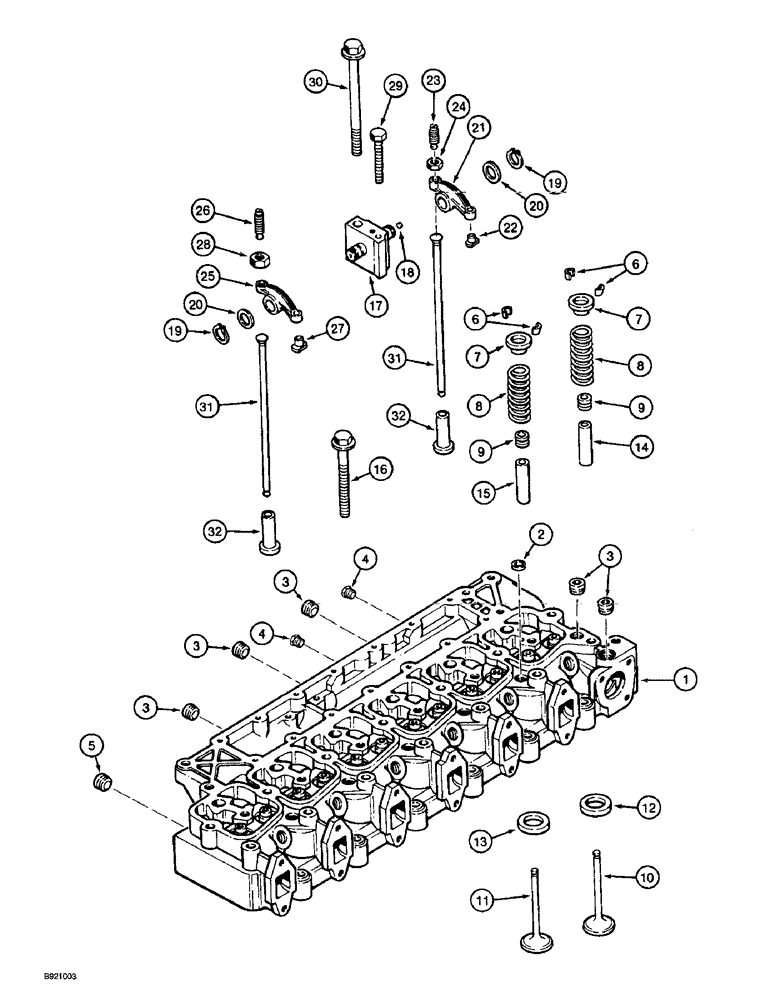

Запчасти Case IH 2022 (2-54) - CYLINDER HEAD AND VALVE MECHANISM, 6TA-590 ENGINE (01) - ENGINE

JR920612

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, 7 mm injector, with valves, remanufactured, North America only, no longer available, order remanufactured assembly JR929735

1шт.

JC920612

REMAN-CYLINDER HEAD

RETURN NUMBER - use this part number to return cylinder head core for credit when using a remanufactured assembly

1шт.

JR929735

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, remanufactured, component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC929735

CORE-CYLINDER HEAD

RETURN NUMBER - use this part number to return cylinder head core for credit when using a remanufactured assembly

1шт.

1

J929735

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, with valves, new

1шт.

1

J920612

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, 7 mm injector, with valves, new, no longer available, order head assembly J929735

1шт.

1

J917287

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, 7 mm injector, without valves

1шт.

2

A77783

PLUG

- expansion, 21 mm OD (Replaces plug J902606)

5шт.

3

A77429

PLUG

- hex socket, 1/2 inch PT

5шт.

4

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

2шт.

5

A77505

PLUG

- hex socket, 3/4 inch PT

1шт.

6

J900250

SCREW

KEEPER - valve

24шт.

7

J900299

RETAINER

- valve spring

12шт.

8

J926700

VALVE SPRING

SPRING - valve (Replaces spring J900276)

12шт.

9

J901097

SEAL

- valve stem

12шт.

10

J920867

VALVE

- intake

6шт.

11

J920868

VALVE

- exhaust

6шт.

12

J906854

SEAT, VALVE

SEAT - insert, intake valve, service repair only

6шт.

13

J904105

SEAT, VALVE

SEAT - insert, exhaust valve, service repair only

6шт.

14

J904408

GUIDE

- valve, intake, service repair only, 14 mm OD (See Note)

6шт.

See Figure Note.

1шт.

15

J904409

GUIDE

- valve, exhaust, service repair only, 14 mm OD (See Note)

6шт.

See Figure Note.

1шт.

16

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

BOLT, SPECIAL - cylinder head, 70 mm long (Replaces bolt J918471)

6шт.

16

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

- cylinder head, 120 mm long (Replaces bolt J918472)

14шт.

17

J910814

SUPPORT

AND SHAFT ASSEMBLY - rocker arm, no longer available, order support J922488

6шт.

17

J922488

SUPPORT

- rocker arm (Replaces support assembly J910814)

6шт.

18

J907555

PLUG

- rocker arm shaft, 1/4-18 PT

1шт.

19

J900242

SNAP RING

RING - retaining, rocker arm

12шт.

20

J900245

WASHER

- thrust, rocker arm

12шт.

21

J910811

ROCKER

ARM ASSEMBLY - rocker, intake

6шт.

22

NSS

NOT SOLD SEPARAT

INSERT - rocker arm, order arm assembly J910811

1шт.

23

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

24

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

25

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust

6шт.

26

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

27

NSS

NOT SOLD SEPARAT

INSERT - rocker arm, order arm assembly J910810

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

29

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

6шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

BOLT, SPECIAL - rocker arm and cylinder head, 180 mm long

6шт.

31

J923262

PUSH ROD

ROD - push, rocker arm (Replaces rod J904679)

12шт.

32

J931623

TAPPET

- valve, push rod (Replaces tappet J907240)

12шт.
