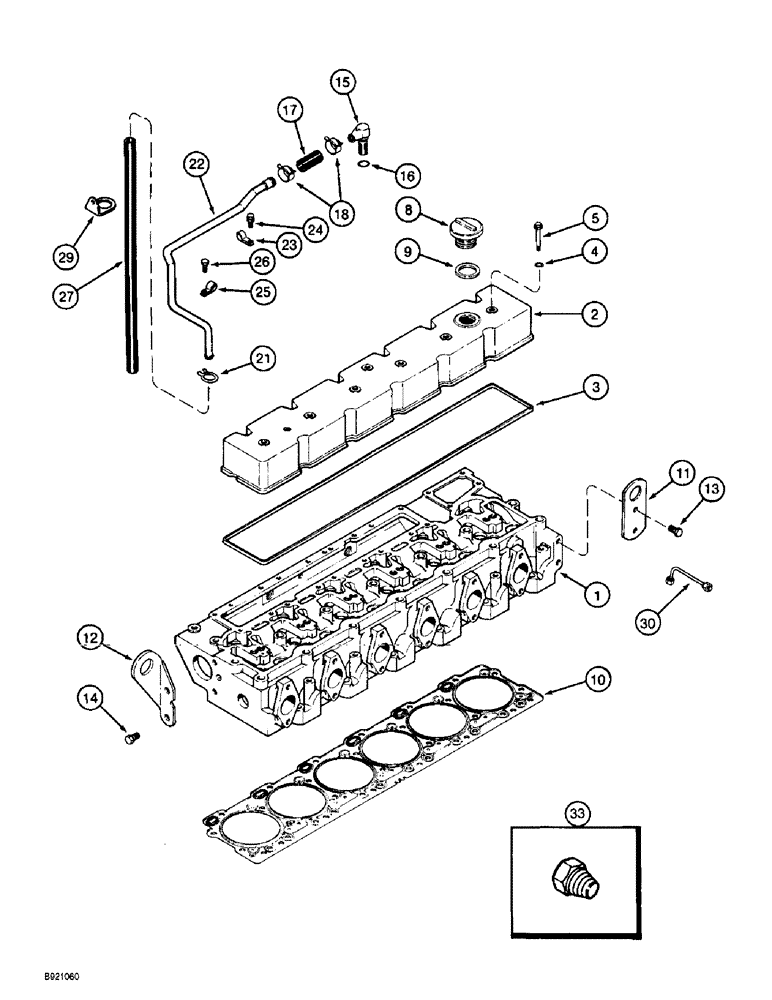

Запчасти Case IH 2022 (2-50) - CYLINDER HEAD COVER AND GASKET, 6TA-830 ENGINE (01) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, see page 2-57 for correct assembly and component parts

1шт.

2

J927907

VALVE COVER

COVER - valve (Replaces cover J907734)

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

SEAL - valve cover

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

5

J916585

BOLT,Hex Flg, M8 x 1.25

BOLT - hex flange cap, special

6шт.

8

J902468

FILLER CAP,Male

CAP - oil filler

1шт.

9

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing

1шт.

10

J928168

GASKET

- cylinder head, standard (Replaces gaskets J921216 and J921850)

1шт.

10

J928180

GASKET

- cylinder head, 0.27 mm overthick (Replaces gaskets J914305 and J921852)

1шт.

10

J928181

GASKET

- cylinder head, 0.48 mm overthick (Replaces gaskets J914306 and J921853)

1шт.

11

J907861

LIFTING EYE

BRACKET - lifting, front

1шт.

12

J906440

LIFTING EYE

BRACKET - lifting, rear

1шт.

13

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, Front lifting bracket to cylinder head

2шт.

14

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9, Rear lifting bracket to cylinder head

2шт.

15

J920497

ELBOW

CONNECTOR - 90 degree, breather vent

1шт.

16

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

17

J918610

HOSE,19.05 mm ID x 51.00 mm

Connector, Replaces Hose J915040) 19.05 mm ID x 51.00 mm

1шт.

18

J918163

CLIP

CLAMP - spring type

2шт.

21

214-1318

HOSE CLAMP,#18, 1 1/8", Spring

CLAMP, HOSE, #18, 1 1/8", Spring

1шт.

22

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

- breather

1шт.

23

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

P-style M15.88, M9.52 Bolt Hole

1шт.

24

J912072

SELF-TAP SCREW

SCREW - self tapping, hex washer head, special, 8 - 1.25 x 15 mm

1шт.

25

A77538

CLIP

CLAMP - P-style

1шт.

26

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

1шт.

27

J918616

TUBE,680.00 mm

Breather, Replaces Hose A77717 680.00 mm

1шт.

29

J909670

CLIP

- retaining

1шт.

30

J918167

TUBE,6.35 mm OD x 117.5 mm L

- vent, air

1шт.

33

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

1шт.
