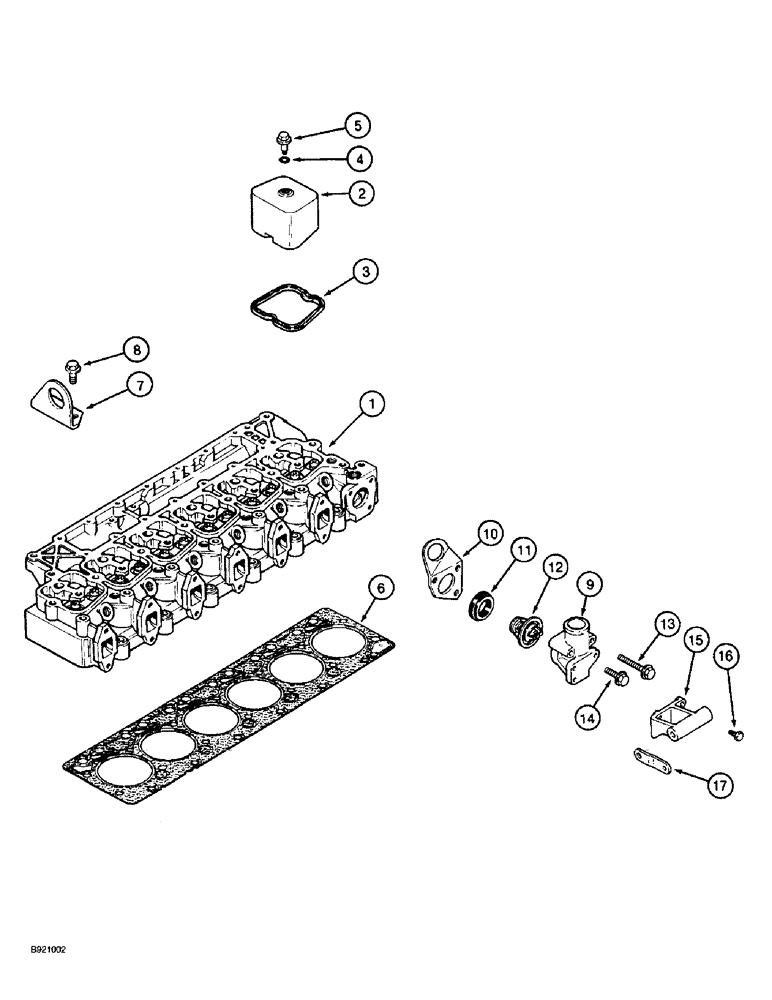

Запчасти Case IH 2022 (2-48) - CYLINDER HEAD COVERS AND GASKET, 6TA-590 ENGINE (01) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, see page 2-55 for the correct assembly and component parts

1шт.

2

J928404

COVER

- rocker arm (Replaces cover J902604)

6шт.

3

J930906

GASKET

SEAL - rocker arm cover (Replaces seals J902666 and J929795)

6шт.

4

J928406

ISOLATOR

O-RING - cover bolt (Replaces O-ring J910824)

6шт.

5

J907049

BOLT,Hex

- hex flange, special, 8 - 1.25 x 21.25 mm

6шт.

6

J282805

GASKET

- head, standard (Replaces gaskets J918305 and J921394)

1шт.

6

J921396

CYLINDER HEAD GASKET

- head, 2 notches, 0.25 mm overthick (Replaces gasket J918306)

1шт.

6

J921398

GASKET

- head, 3 notches, 0.50 mm overthick (Replaces gasket J918307)

1шт.

7

J908118

BRACKET

- lifting, rear

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

9

J914409

HOUSING

- thermostat

1шт.

10

J903757

BRACKET

- lifting, front THERMOSTAT AND HOUSING

1шт.

A77736

THERMOSTAT

KIT - coolant thermostat THERMOSTAT AND

1шт.

11

J923331

GASKET

- thermostat housing (Replaces gasket J920020)

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT - water, order kit A77736 AND HOUSING

1шт.

13

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

BOLT - hex flange, 8 - 1.25 x 70 mm THERMOSTAT AND HOUSING

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Thermostat and housing

1шт.

15

J917484

BRACE

SUPPORT - alternator mounting THERMOSTAT AND HOUSING

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Thermostat and housing

4шт.

17

J910924

PLATE

BRACE - alternator mounting (Replaces brace J903104) THERMOSTAT AND HOUSING

1шт.
