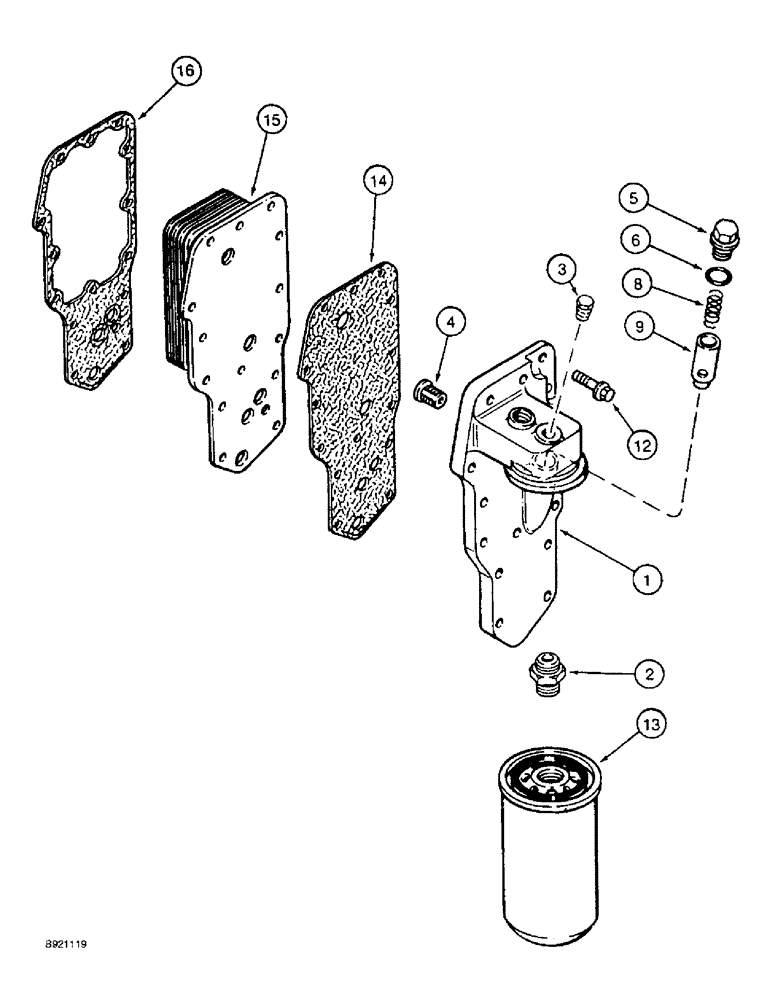

Запчасти Case IH 2022 (2-40) - OIL FILTER AND COOLER, 6TA-590 ENGINE (01) - ENGINE

1

J915243

FILTER COVER

HEAD ASSEMBLY - oil filter and cooler, top port, no longer available, order head assembly J918954

1шт.

1

J918954

HEAD

ASSEMBLY - oil filter and cooler (Replaces head assembly J915243)

1шт.

2

J909355

ADAPTER

- filter head

1шт.

3

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

1шт.

4

J927622

VALVE, PRESSURE RELI

VALVE - relief, pressure (Replaces valve J902338)

1шт.

5

J915787

PLUG

- threaded

1шт.

6

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

8

J925009

SPRING

- compression, 54 mm free length (Replaces spring J918427)

1шт.

9

J918428

PLUNGER

- regulator, pressure

1шт.

12

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm

14шт.

13

J908615

FILTER

- engine oil, cartridge

1шт.

14

J929792

GASKET,1.2mm Thk

- filter head (Replaces gasket J918257)

1шт.

15

J921558

COOLER

CORE - cooler, oil (Replaces cores J918293 and J911940)

1шт.

16

J929791

GASKET

- cooler core, oil (Replaces gasket J918256)

1шт.

J929457

O-RING

SEAL - O-ring

1шт.
