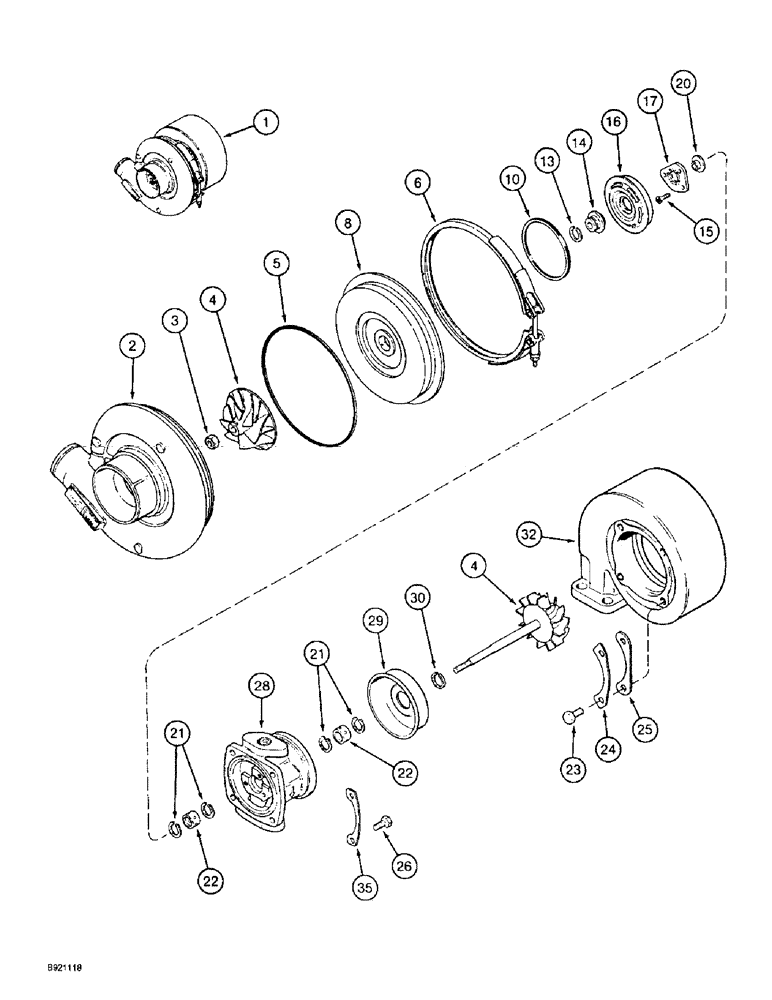

Запчасти Case IH 2022 (2-36) - TURBOCHARGER ASSEMBLY, 6TA-590 ENGINE (01) - ENGINE

1

J919113

TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, new, also order adapter J919687, see page 2-33

1шт.

1

JR802289

REMAN-TURBOCHARGER

2022, Reman For New P/N J919113

1шт.

1

JC528741

CORE-TURBOCHARGER

Return Part Number

1шт.

1

JR907028

REMAN-TURBOCHARGER

Turbocharger Assembly - engine, remanufactured, component parts shown on this page do not apply to the remanufactured assembly

1шт.

1

JC907028

CORE-TURBOCHARGER

Return Part Number - use this part number to return turbocharger core for credit when using a remanufactured assembly

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - hex lock

1шт.

4

NSS

NOT SOLD SEPARAT

ROTOR - turbocharger

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - housing, compressor

1шт.

6

NSS

NOT SOLD SEPARAT

CLAMP - compressor

1шт.

8

NSS

NOT SOLD SEPARAT

DIFFUSER - compressor

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - diffuser

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - slit ring, compressor

1шт.

14

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW - flat head torx

3шт.

16

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

17

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

20

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

21

NSS

NOT SOLD SEPARAT

RING - snap

4шт.

22

NSS

NOT SOLD SEPARAT

BEARING - impeller shaft

2шт.

23

NSS

NOT SOLD SEPARAT

BOLT - cap

4шт.

24

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine housing

2шт.

25

NSS

NOT SOLD SEPARAT

PLATE - clamping, turbine housing

2шт.

26

NSS

NOT SOLD SEPARAT

BOLT - hex, lock, includes washer

4шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - bearing, turbine

1шт.

29

NSS

NOT SOLD SEPARAT

SHIELD - heat, turbine

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL - piston ring, turbine

1шт.

32

NSS

NOT SOLD SEPARAT

HOUSING - turbine

1шт.

35

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine

2шт.

J545652

PACKAGE, REPAIR

KIT - overhaul, turbocharger

1шт.
