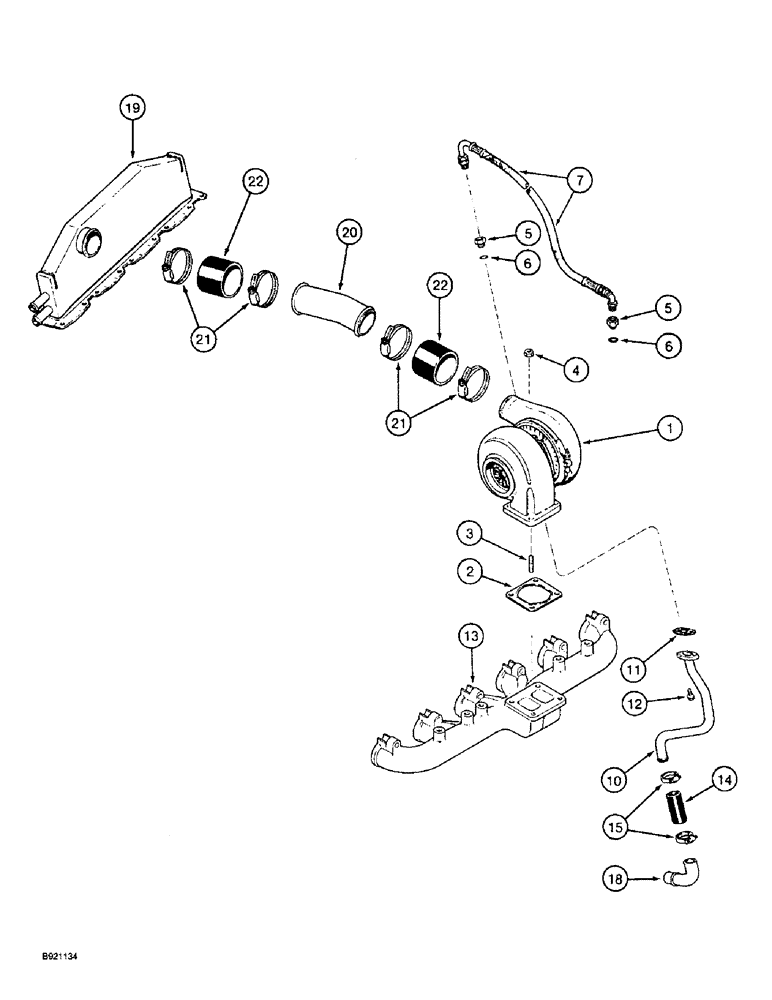

Запчасти Case IH 2022 (2-34) - TURBOCHARGER SYSTEM, 6TA-830 ENGINE (01) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, see page 2-39 for correct assembly and parts list

1шт.

2

J911941

GASKET

- mounting, turbocharger

1шт.

3

J905417

STUD

- turbocharger mounting

4шт.

4

J901961

NUT

- hex, special, 10 mm - 1.25

4шт.

5

J919687

HYD CONNECTOR

ADAPTER - female hex, special (Replaces adapter J916857)

2шт.

6

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

2шт.

7

J918562

HOSE

- oil supply, turbocharger, 21-3/16 inch (538 mm) long

1шт.

10

J917936

TUBE,22.22 mm OD x 340.6, 108.7 mm L

- oil drain

1шт.

11

J928919

GASKET

- turbocharger oil drain tube (Replaces gasket J914388)

1шт.

12

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

13

J906741

MANIFOLD

- exhaust, see page 2-31, item 1

1шт.

14

J903745

LARGE HOSE

HOSE - turbocharger oil drain, 3 inch (76 mm) long

1шт.

15

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

18

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

19

J914502

HEAT-EXCHANGER

AFTERCOOLER - air intake, see page 2-31, item 5

1шт.

20

J914942

TUBE,63.5 mm OD x 189.5, 23 mm L

- crossover

1шт.

21

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adjustable, 2-1/16 - 3 inch diameter

4шт.

22

J916529

TRANSMISSION SLEEVE

HOSE - crossover tube, 3 inch (76 mm) long

2шт.
