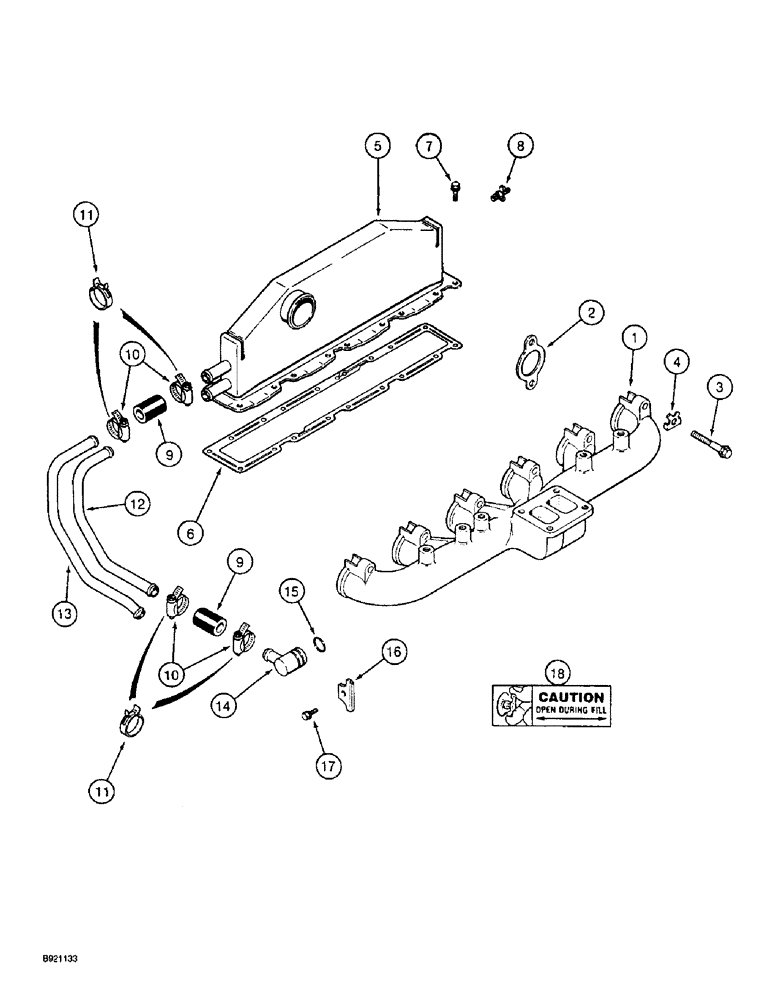

Запчасти Case IH 2022 (2-30) - MANIFOLDS, 6TA-830 ENGINE (01) - ENGINE

1

J906741

MANIFOLD

- exhaust

1шт.

2

J929012

GASKET,0.5mm Thk

- exhaust manifold, 1.27 - 1.40 mm thick (Replaces gasket J911942)

6шт.

3

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 - 1.5 x 70 mm

12шт.

4

J914708

LOCKING PLATE

PLATE - locking, bolt

12шт.

5

J914502

HEAT-EXCHANGER

AFTERCOOLER - air intake

1шт.

6

J914311

MANIFOLD GASKET

- cover, manifold INTAKE AFTERCOOLER

1шт.

7

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, Intake aftercooler manifold Hex Flg Hd, M8 x 1.25 x 25

18шт.

8

J909394

COCK, DRAIN

VALVE - drain INTAKE AFTERCOOLER MANIFOLD

1шт.

9

J918611

HOSE,18.50 mm ID x 63.00 mm

Supply Tube to Aftercooler, Replaces J917791 Hose, Intake Manifold 18.50 mm ID x 63.00 mm

4шт.

10

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, , Intake aftercooler manifold #12, 0.69/1.25 Type F Worm

8шт.

11

J918163

CLIP

CLAMP - spring type, if used INTAKE AFTERCOOLER MANIFOLD

8шт.

12

J906436

TUBE,19.05 mm OD x 385.3 mm L

- water inlet INTAKE AFTERCOOLER MANIFOLD

1шт.

13

J908402

TUBE,19.05 mm OD

- water outlet INTAKE AFTERCOOLER MANIFOLD

1шт.

14

J917394

ELBOW

CONNECTOR - water inlet INTAKE AFTERCOOLER MANIFOLD

2шт.

15

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

Intake aftercooler manifold -120, 70 Duro, .987" ID x .103" Thk

2шт.

16

J906439

PLATE

- mounting INTAKE AFTERCOOLER MANIFOLD

1шт.

17

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm, Intake aftercooler manifold

1шт.

18

J910778

DECAL

- Caution, open during fill INTAKE AFTERCOOLER MANIFOLD

1шт.
