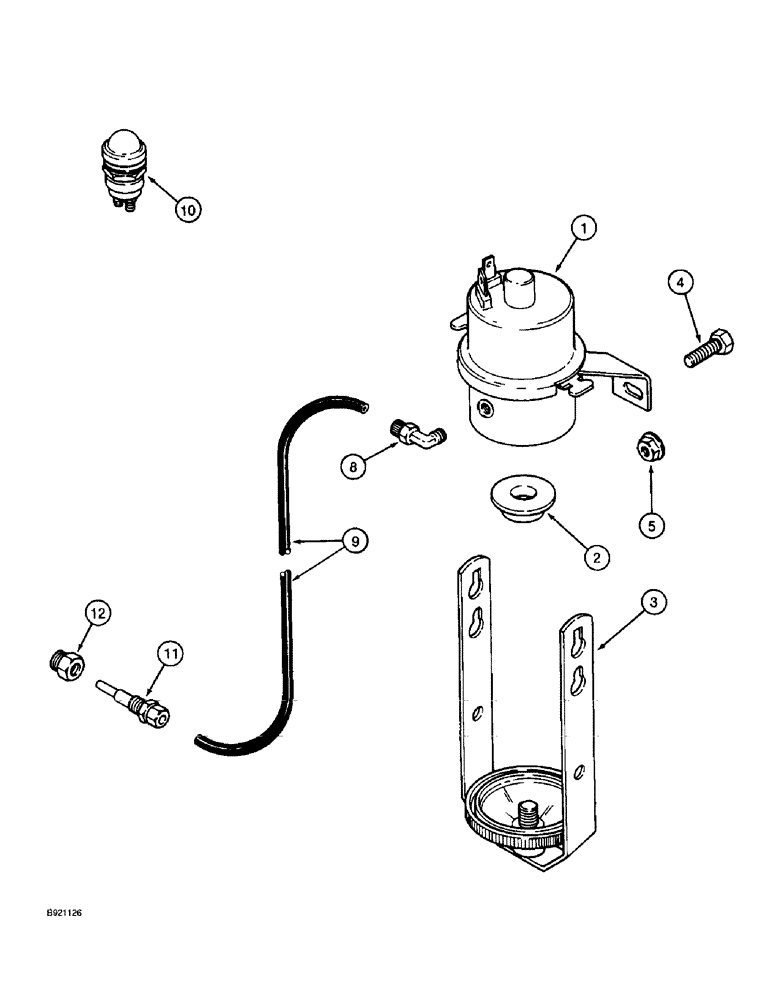

Запчасти Case IH 2022 (2-22) - ETHER START (01) - ENGINE

1

121842C91

SOLENOID SWITCH

SOLENOID ASSEMBLY - ether injection, no longer available, order solenoid assembly 185552A2, parts list page 2-23B

1шт.

2

1963571C1

GASKET

GASKET - injector solenoid, 19/32 inch diameter

1шт.

3

121851C1

RETAINER

- ether start fluid container

1шт.

4

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

8

289970C91

FITTING

ELBOW - 90 degree, special, 1/8-27 PT x 1/8 inch tube

1шт.

9

NSS

NOT SOLD SEPARAT

TUBE - solenoid to manifold, 14 inch, cut from bulk tubing 1954063CX below

1шт.

10

453453C1

SWITCH

- push button

1шт.

11

A172900

NOZZLE CAP

NOZZLE - atomizer

1шт.

12

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- pipe, 1/4 male x 1/8 inch female

1шт.

1954063CX

TUBE

- bulk, nylon, 1/16 (2) x 1/8 (3) x 1200 inch (30480 mm) long

1шт.
