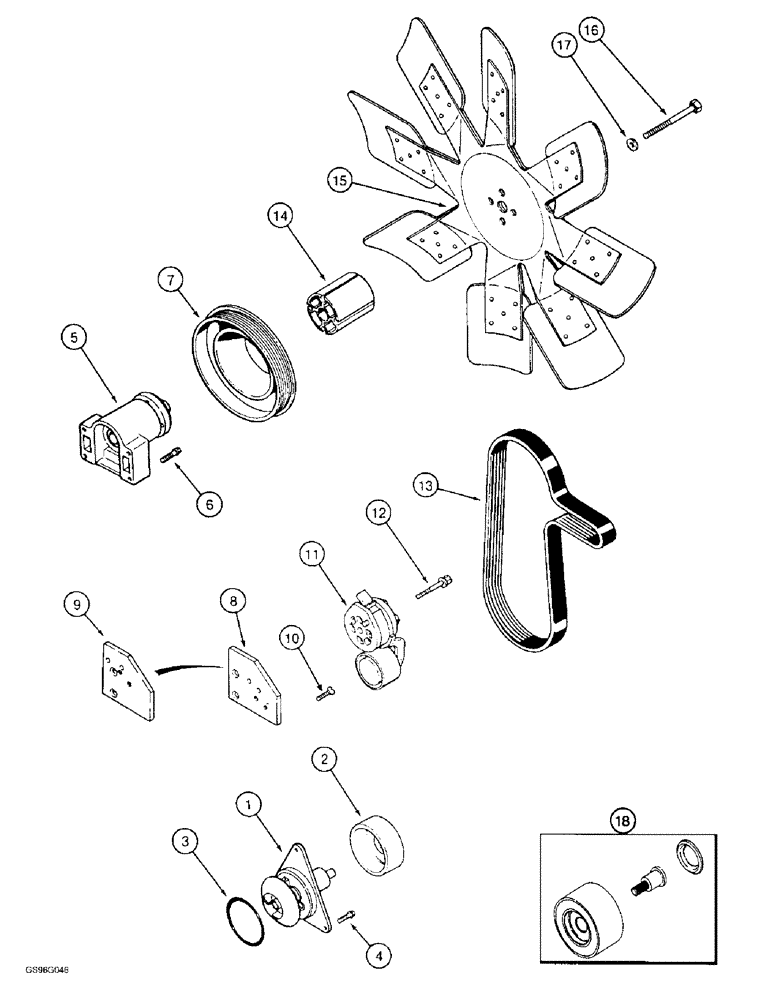

Запчасти Case IH 2022 (2-10) - WATER PUMP, FAN AND BELT, 6TA-830 ENGINE (01) - ENGINE
№
Артикул
Название
Примечание
Количество
AR77704
PUMP, WATER
PUMP - water, remanufactured, North America only, no longer available, order kit A77704 below
1шт.
J800976R
REMAN-WATER PUMP
2022, 2044, Both 6TA-830 ENGINE (11/90-), Reman for New P/N AR77704
1шт.
J800976C
CORE-WATER PUMP
Return Number
1шт.
AC77704
CORE-HYDRAULIC PUMP
RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly
1шт.
A77704
PUMP, WATER
KIT - water pump, new
1шт.
J800976R
REMAN-WATER PUMP
2022, 2044, Both 6TA-830 ENGINE (11/90-), Reman for New P/N A77704
1шт.
J800976C
CORE-WATER PUMP
Return Number
1шт.
1
NSS
NOT SOLD SEPARAT
PUMP - water, order kit A77704
1шт.
2
NSS
NOT SOLD SEPARAT
PULLEY - water pump, order kit A77704
1шт.
3
J902089
SEAL,0.139" Thk x 3.859" ID, -241
O-RING - sealing
1шт.
4
J900227
BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9
3шт.
5
J929458
SUPPORT
- fan (Replaces support J910738)
1шт.
6
845-8050
BOLT,Hvy Hex, M8 x 50mm, Cl 8.8
- heavy hex flange, 8 - 1.25 x 50 mm
4шт.
7
J914461
PULLEY
- fan, 207 mm diameter, 0.87 to 1 ratio
1шт.
8
J905935
SUPPORT
BRACKET - mounting, tensioner
1шт.
9
J905938
SUPPORT
BRACKET - mounting
1шт.
10
J925186
SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9
- flat head cap, hex socket, special, 8 - 1.25 x 25 mm (Replaces screw J903095)
2шт.
12
854-10070
BOLT,Hvy Hex, M10 x 70mm, Cl 10.9
- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9
1шт.
13
J911561
BELT,27.92mm W x 1663.7mm L, 8 Ribs
Fan 3.56 mm W x 1663.70 mm L, 8 Ribs
1шт.
14
A184548
SPACER,Fan, 89/90mm Thk
- fan, 90 mm long
1шт.
15
A189206
FAN
- engine, puller
1шт.
16
814-10130
BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8
- hex, 10 - 1.5 x 130 mm, class 8
4шт.
18
A77817
KIT
KIT - pulley, belt tensioner
1шт.
Выбрано товаров: 25
