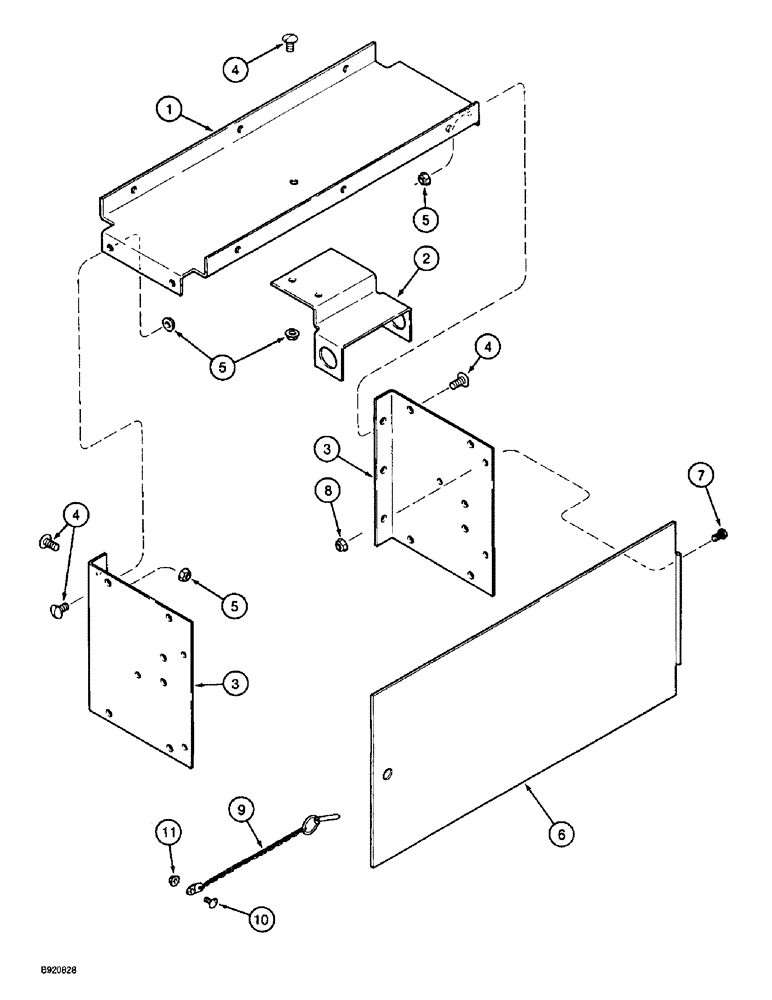

Запчасти Case IH 2022 (9B-14) - WATER LINES SERVICE CENTER, 2022 COTTON PICKER, P.I.N. JJC13600 AND AFTER (14) - WATER SYSTEM

1

1990233C1

SUPPORT

- service center top

1шт.

2

1345112C1

SUPPORT

BRACKET - water filter

1шт.

3

1345144C1

SUPPORT

- service center

2шт.

4

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

12шт.

5

231-5146

FLANGE NUT,3/8"-16

12шт.

6

1345217C1

TRAP DOOR

DOOR - service center

1шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

9

1345212C1

CHAIN (AG)

CHAIN - retainer

1шт.

10

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

1шт.

11

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.
