(9B-10) - WATER LINES, 2022 COTTON PICKER

Запчасти Case IH 2022 (9B-10) - WATER LINES, 2022 COTTON PICKER (14) - WATER SYSTEM

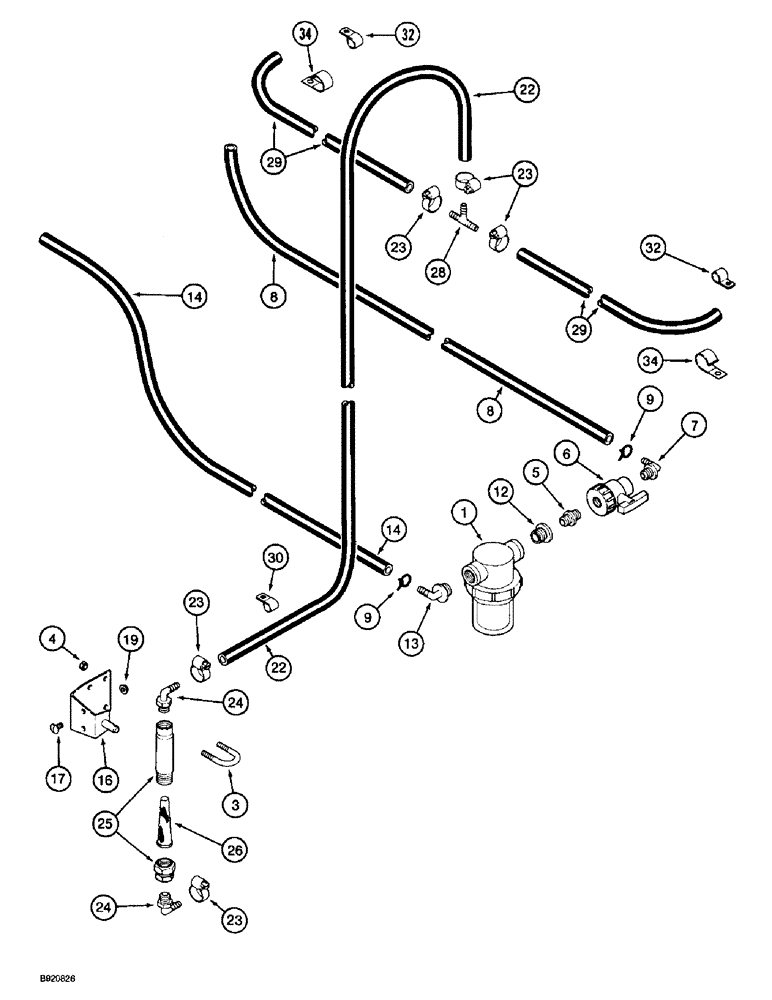

Схема запчастей Case IH 2022 - (9B-10) - WATER LINES, 2022 COTTON PICKER (14) - WATER SYSTEM
23
6
23
14
12
34
25
22
26
4
9
28
3
16
1
17
24
23
30
8
5
34
9
7
19
29
23
32
22
13
24
14
32
29
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

FILTER ASSEMBLY - water, parts list page 9B-17

1шт.

3

1338145C1

U-BOLT,3/8" - 16 x 41.15mm W x 41.30mm L

- special, 3/8 inch NC

2шт.

4

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC (Replaces nut 9411655)

4шт.

5

1345155C1

ADAPTER

NIPPLE - straight, 3/4 PT x 3/4 inch

1шт.

6

1345067C1

SHUT-OFF VALVE,3/4" Single Union Poly Valve

VALVE - shutoff

1шт.

7

1329210C1

ELBOW

- 90 degree, 1/2 stem end x 3/4-16 inch

1шт.

8

NSS

NOT SOLD SEPARAT

HOSE - tank to valve, 81 inch (205 mm) long, cut from bulk hose 665181R1 below

1шт.

9

214-1312

HOSE CLAMP,#12, 3/4", Spring

CLAMP - spring type, 3/4 inch

8шт.

9

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

CLAMP - adjustable, 1/2-29/32 inch diameter, if used

8шт.

12

1345154C1

FITTING

BUSHING - 1 x 3/4 inch

1шт.

13

1345153C1

90 ELBOW

- 90 degree, special

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE - filter to pump, 37 inch (1575 mm) long, cut from bulk hose 665181R1 below

1шт.

16

1345211C1

SUPPORT

BRACKET - filter mounting

1шт.

17

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

2шт.

19

231-5146

FLANGE NUT,3/8"-16

2шт.

22

NSS

NOT SOLD SEPARAT

HOSE - filter, 102 inch (2591 mm) long, cut from bulk hose 1338159CX below

1шт.

23

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adjustable, 1/4 - 5/8 inch diameter

10шт.

24

1339135C1

ELBOW

FITTING - stem, 90 degree, special

2шт.

25

1339134C1

FILTER

- inline

1шт.

26

1339256C1

FILTER STRAINER

SCREEN - filter

1шт.

28

1339010C1

FITTING

TEE - barb, 3/8 inch

1шт.

29

NSS

NOT SOLD SEPARAT

HOSE - tee to drum, 78 inch (1981 mm) long, cut from bulk hose 1338159CX below

2шт.

30

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

2шт.

32

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

4шт.

34

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

P-type 1 1/4", Insul, 7/16" Bolt

2шт.

665181R1

HOSE,0.50" ID

Cut from Bulk 0.50" ID

1шт.

1338159CX

HOSE

- bulk, 3/8 (10) ID x 1200 inch (30480 mm) long, sold by the foot

1шт.
