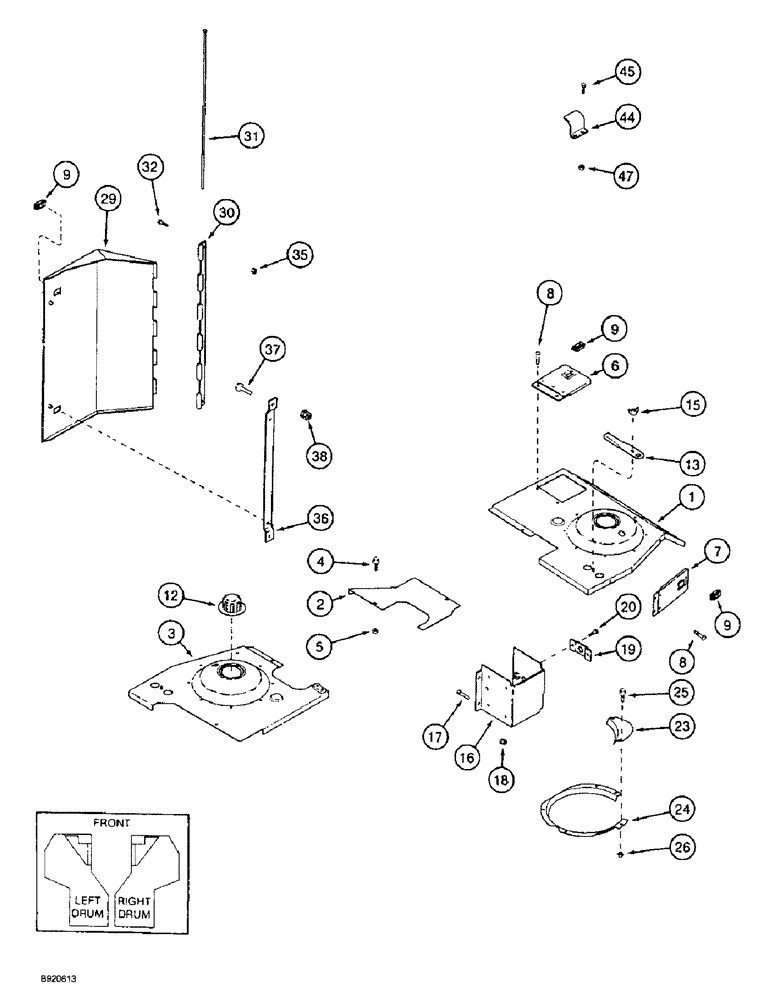

Запчасти Case IH 2022 (9A-74) - COVERS AND DOORS, 2022 COTTON PICKER (13) - PICKING SYSTEM

REF

INSTRUCTION

(NOTE: A single quantity in the \xd2 required\xd3 columns

1шт.

REF

INSTRUCTION

means that every drum requires that quantity)

1шт.

1

1982626C1

COVER

ASSEMBLY - upper, front, parts list page 9A-83

1--0шт.

1

1982724C1

COVER ASSY

COVER ASSEMBLY - upper, front, operator presence system, shown, parts list page 9A-83

1шт.

2

1990260C2

OLIVE

COVER ASSEMBLY - upper, center, parts list page 9A-83

1--0шт.

2

1990261C2

COVER ASSY

COVER ASSEMBLY - upper, center, shown, parts list page 9A-83

1шт.

3

1982630C2

COVER

ASSEMBLY - upper, rear, parts list page 9A-83

1--0шт.

3

1982631C2

COVER

ASSEMBLY - upper, rear, shown, parts list page 9A-83

1шт.

4

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

18шт.

5

673689R1

NUT

- speed, special, 1/4 inch NC

18шт.

6

1982665C2

COVER ASSY

COVER ASSEMBLY - access, large, parts list page 9A-83

3--4шт.

7

1982669C2

COVER ASSY

COVER ASSEMBLY - access, small, parts list page 9A-83

2шт.

Latch for # 7 is a 1982673c1

1шт.

8

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

10-12шт.

9

1982673C1

LATCH

- cover and door, used with doors 1982762C1 and 1349800C1

7--8шт.

12

1982787C2

PLUG

COVER - rotor

2шт.

13

1982894C2

LOCKING PLATE

PLATE - lock, doffer adjustment

2шт.

15

126177

WING NUT

NUT - wing, 1/4 inch NC

2шт.

16

1982730C1

SUPPORT

CHANNEL - tether

1шт.

17

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

1шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

19

91795C1

SUPPORT

BRACKET - transducer mounting

1шт.

20

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

- machine, hex head, No. 10 NC x 1/2 inch

1шт.

23

1982858C1

COVER

- access, picker bar

2шт.

24

1988726C1

RING

- rotor guard, left-hand

1шт.

24

1988727C1

RING

- rotor guard, right-hand, shown

1шт.

25

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

14шт.

26

104329C1

NUT

- speed, 1/4 inch NC (Replaces nut 673689R1)

14шт.

29

1982762C1

DOOR

- front, left-hand, shown, no longer available, order door 118129A1, see page 9A-75B

1--0шт.

29

1349800C1

DOOR

- front, right-hand, no longer available, order door 118126A1, see page 9A-75B

1шт.

30

1982865C1

HINGE

- door, used with doors 198262C1 and 1349800C1

1шт.

31

1278880C1

PIN

- hinge, used with hinge 1982865C1

1шт.

32

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch, used with hinge 1982865C1

2шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, used with hinge 1982865C1

2шт.

36

1982867C1

BAR

- step lock, used with doors 198262C1 and 1349800C1

1шт.

37

116494C1

SCREW,Sl Serr Truss Hd, 3/8" - 16 x 1/2"

Used with bar 1982867C1 Sltd Serr Truss Hd, 3/8"-16 x 1/2"

2шт.

38

231-5146

FLANGE NUT,3/8"-16

Used with bar 1982867C1 Flg, USR, 3/8"-16

2шт.

44

1983176C2

BRACKET

- rotor wrench

1шт.

45

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

47

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.
