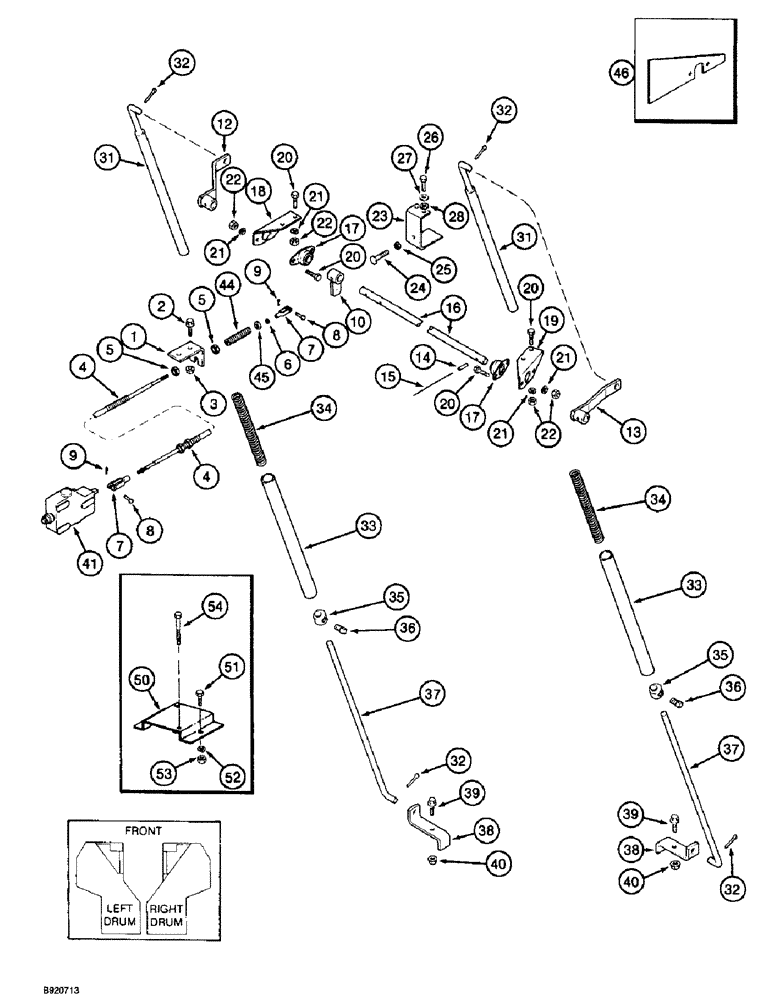

Запчасти Case IH 2022 (9A-60) - HEIGHT CONTROL LINKAGE, 2022 COTTON PICKER (13) - PICKING SYSTEM

1

1984034C1

BRACKET

- cable adjustment

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

1349863C1

CABLE

ASSEMBLY - height control

1шт.

5

425-157

JAM NUT,Jam, 7/16"-20, G5

4шт.

6

NSS

NOT SOLD SEPARAT

NUT - hex jam, No. 10-32

2шт.

7

1338454C2

CLEVIS

YOKE - cable

2шт.

8

427-3103

CLEVIS PIN,4.78mm OD x 26.19mm L

PIN - clevis, 3/16 x 1-1/32 inch, hardened

2шт.

9

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

10

1984026C1

ARM

- cable and stop

1шт.

12

1982690C1

ARM

- pivot, large offset

1шт.

13

1982715C1

ARM

- pivot, small offset

1шт.

14

438-11616

LOCK PIN,1/4" x 1", Slotted

Pin, (Replaces pin 21997R1) 1/4" x 1", Slotted

3шт.

15

1329485C2

ELECTRICAL WIRE

WIRE - retaining

3шт.

16

1983199C1

SHAFT,15.88mm OD x 668.6mm L

- pivot

1шт.

17

164864C91

FLANGE,15.89mm ID

BEARING - flange, 5/8 inch bore

2шт.

18

1982685C1

ANGLE BAR

ANGLE - mounting, bearing

1шт.

19

1982684C1

ANGLE BAR

ANGLE - mounting, bearing

1шт.

20

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

7шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

22

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

9шт.

23

1982722C1

SUPPORT

BRACKET - stop

1шт.

24

28766R1

BOLT

BOLT - weld, 3/8 NC x 1-3/4 inch

1шт.

25

425-106

NUT,3/8"-16, Cl 5

1шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

27

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

28

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

2шт.

31

670890R91

ROD

- push, upper

2шт.

32

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

4шт.

33

669058R1

TUBE,30.2 mm OD, 406.5 mm Length

- spring

2шт.

34

523677R1

SPRING

- push rod

2шт.

35

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR ASSEMBLY - locking

2шт.

36

485-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW - set, square head, 1/2 NC x 5/8 inch, cup point

1шт.

37

1982717C1

ROD

- push, lower

2шт.

38

1982738C1

ANGLE

- control

2шт.

39

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

40

231-5146

FLANGE NUT,3/8"-16

2шт.

41

REF

INSTRUCTION

VALVE - height control

1шт.

44

1990208C1

SPRING

- cable return

1шт.

45

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

- flat, 13/64 x 3/4 x 1/16 inch

1шт.

46

1990264C1

PLATE

- filler

1шт.

50

1288889C1

SUPPORT

BRACKET - valve, right-hand and left-hand drum

1шт.

51

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

52

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

53

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

54

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.
