Запчасти Case IH 2022 (9A-52) - PLANT GUARD, 2022 COTTON PICKER P.I.N. JJC13388 & AFTER, 2044 COTTON PICKER P.I.N. JJC03300 & AFTER (13) - PICKING SYSTEM

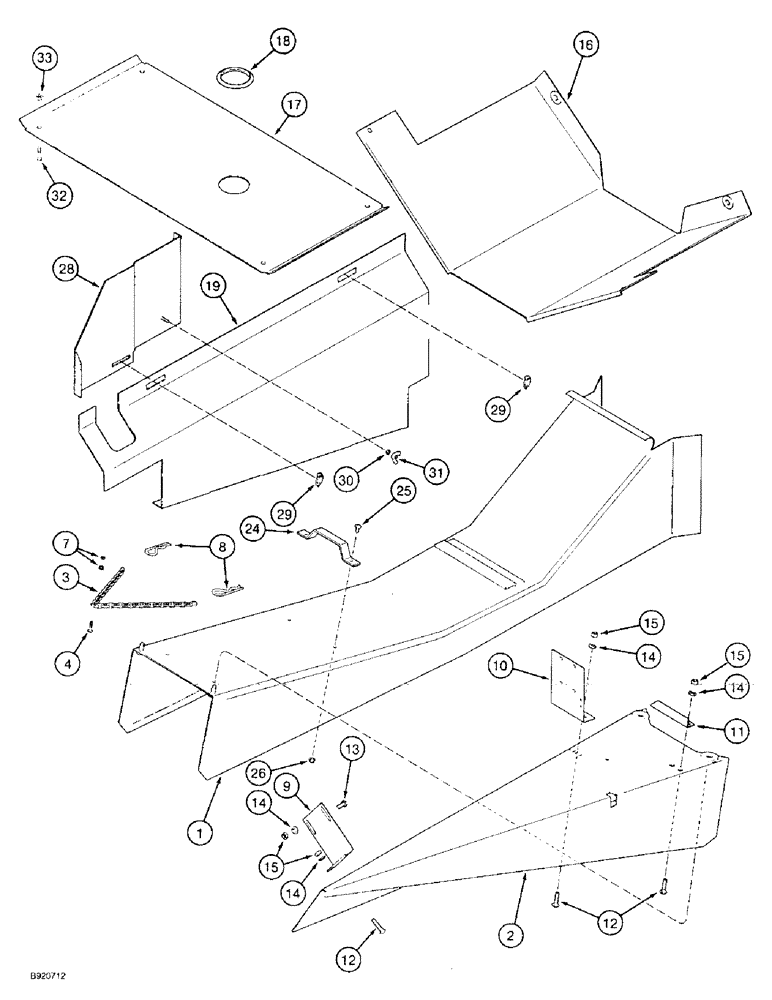

Схема запчастей Case IH 2022 - (9A-52) - PLANT GUARD, 2022 COTTON PICKER P.I.N. JJC13388 & AFTER, 2044 COTTON PICKER P.I.N. JJC03300 & AFTER (13) - PICKING SYSTEM
9
24
28
11
33
32
30
29
8
7
1
31
15
15
16
3
4
14
19
17
14
29
26
2
14
18
13
15
12
14
25
10
12

Артикул

Название

Примечание

Количество

1

87289C3

GUARD

SHIELD - plant

2шт.

2

1278973C6

GUARD

TUNNEL - plant guard, left-hand

1шт.

2

1278974C6

GUARD

TUNNEL - plant guard, right-hand

1шт.

3

655920R91

CHAIN (AG)

CHAIN - tunnel

2шт.

4

1338692C1

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1"

2шт.

7

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

7

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

8

1978738C1

HAIR PIN COTTER

4шт.

9

1266374C2

SUPPORT

- tunnel

2шт.

10

1266376C4

SUPPORT

- tunnel

2шт.

11

1266377C2

ANGLE BAR

SUPPORT - tunnel

2шт.

12

434-68

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1/2", Gr 5

BOLT - carriage, 3/8 NC x 1/2 inch

12шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

14

492-11038

LOCK WASHER,3/8"

18шт.

15

425-106

NUT,3/8"-16, Cl 5

18шт.

16

1338795C1

DEFLECTOR

PLATE - deflector, fan

1шт.

17

1994851C2

SHEET

PLATE - cover (Replaces plate 1266330C3)

1шт.

18

1302758C1

PLUG

- plastic, 89 mm OD

1шт.

19

1990163C3

GUARD

SHIELD - mud, left-hand (Replaces shield 1990163C1)

1шт.

19

1990164C2

GUARD

SHIELD - mud, right-hand (Replaces shield 1990164C1)

1шт.

24

160638C1

HANDLE

- door, plant shield lifting

4шт.

25

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

8шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

28

1990178C1

GUARD

SHIELD - mud, upper left-hand

1шт.

28

1990180C1

GUARD

SHIELD - mud, upper right-hand

1шт.

29

A33497

LINCH PIN,4.76mm OD Pin

PIN - lock

4шт.

30

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

31

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

2шт.

32

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

33

231-5146

FLANGE NUT,3/8"-16

4шт.

Выбрано товаров: 30
