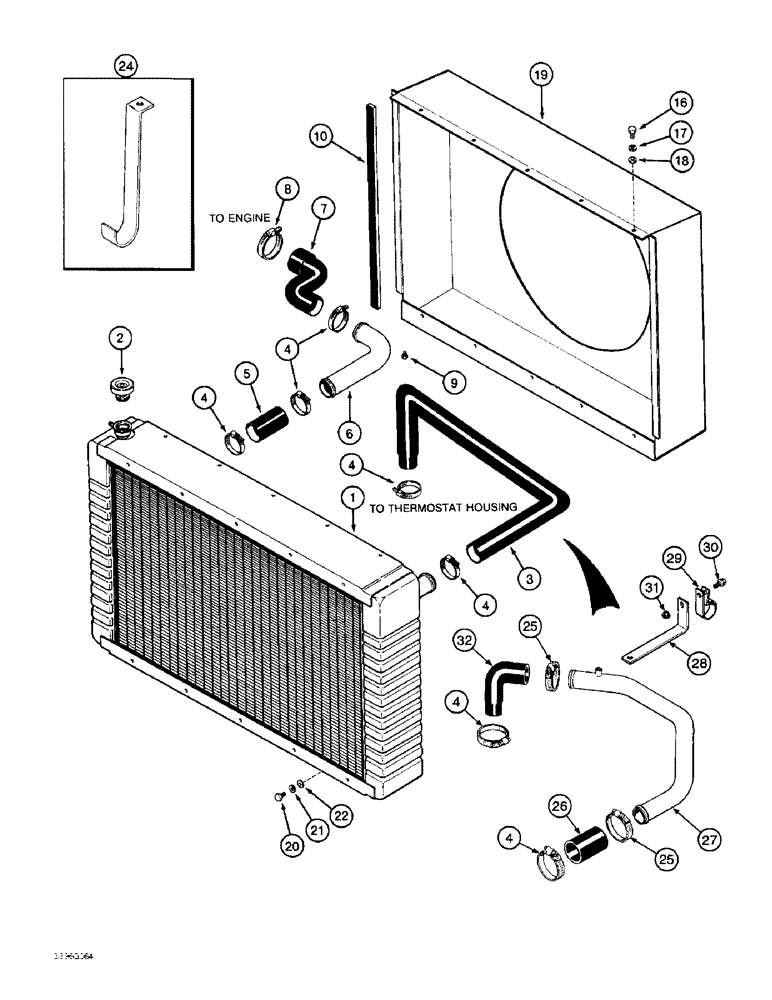

Запчасти Case IH 2022 (2-02) - RADIATOR AND FAN SHROUD, 2022 COTTON PICKER (01) - ENGINE

1

84357C2

RADIATOR

- coolant

1шт.

2

121951C1

CAP

- radiator pressure, 10 PSI

1шт.

3

1338667C1

HOSE

- coolant, radiator upper outlet, no longer available, order items 25 - 32

1шт.

4

214-1532

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm, W/ Liner

Adj. (Replaces clamp 681209C1) #32, 1.56/2.50 Type F Worm, W/liner

5шт.

5

1329393C1

RADIATOR HOSE,50.80 mm ID x 101.60, SAE 20R4 CLASS D-1 OR SAE 20R1 CLASS B

Straight 50.80 mm ID x 101.60, SAE 20R4 CLASS D-1 OR SAE 20R1 CLASS B

1шт.

6

1338664C2

TUBE,246, 160 mm Length

- coolant, engine inlet

1шт.

7

1338665C1

HOSE

- coolant, water inlet

1шт.

8

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adjustable, 2-1/16 - 3 inch diameter (Replaces clamp 401345R1)

1шт.

9

221-841

PLUG

- hex socket, 1/4 inch PT

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - foam, 26 inch (660 mm) long, cut from bulk seal 87084C1 below

2шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

19

1338787C2

ORIFICE RING

SHROUD - fan

1шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

10шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

10шт.

24

1345172C2

SUPPORT

BRACKET - radiator hose hanger

1шт.

25

214-1532

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm, W/ Liner

Adj. #32, 1.56/2.50 Type F Worm, W/liner

2шт.

26

R45493

HOSE,50.80 mm ID x 203.20 mm

Radiator, Straight 50.80 mm ID x 203.20 mm

1шт.

27

1338670C2

TUBE,605, 50 mm Length

- coolant, engine outlet upper

1шт.

28

189892A3

SUPPORT TUBE,38.1 mm OD, 145, 120 mm Length

SUPPORT - tube, outlet

1шт.

29

515-26508

CLAMP,2", 1/4" Bolt

- P-type, 2 inch ID

1шт.

30

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

1шт.

31

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

32

246152A1

RADIATOR HOSE,44.00 mm ID, 50.80 mm ID x 311.00 mm, SAAE 20R4, Class D-1

44.00 mm ID, 50.80 mm ID x 311.00 mm, SAE 20R4 Class D-1, Engine coolant outlet

1шт.

87084C1

SEAL

- foam, adhesive-backed, 600 inch (15240 mm) long

1шт.
