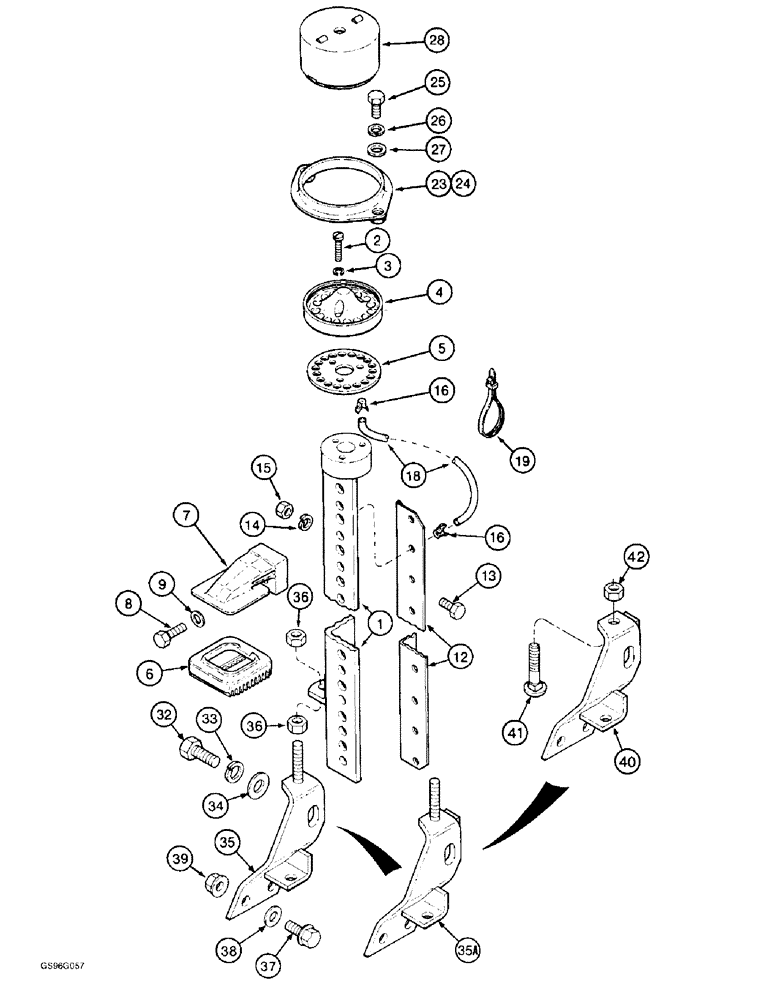

Запчасти Case IH 2022 (9A-40) - MOISTENER STAND (13) - PICKING SYSTEM

1990262C1

PACKAGE,SERVICE

STAND ASSEMBLY - moistener, left-hand, no longer available as a unit, order components

1шт.

1990263C1

PACKAGE,SERVICE

STAND ASSEMBLY - moistener, right-hand, no longer available as a unit, order components

1шт.

1

1982682C1

SUPPORT

- moistener stand, left-hand

1шт.

1

1982683C1

SUPPORT

- moistener stand, right-hand

1шт.

2

490-11016

SCREW,Cross Pan Hd, #10-32 x 1"

- machine, pan Phillips, No. 10 NF x 1 inch, if used

3шт.

2

261-84516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

SCREW - self-tapping, pan Phillips, No. 10 NF x 1 inch, if used

3шт.

3

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

4

1349998C1

CUP

- water distributor

1шт.

5

1982416C1

PLATE

- moistener tube retainer

1шт.

6

1338720C2

PAD

- spindle moistener (Replaces pad 1338720C1)

18шт.

7

214500C2

SUPPORT

- moistener pad (Replaces support 214500C1)

18шт.

8

27971R1

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 8

- hex, 5/16 NC x 1-1/8 inch, grade 8

18шт.

9

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

18шт.

12

1329244C1

SHIELD

- moistener tube

1шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

16

669838R1

SPRING CLIP

- tubular clip, 1/4 inch

36шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, No. 1, 4 inch (102 mm) long, cut from bulk tubing 670199R1

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, No. 2, 6 inch (152 mm) long, cut from bulk tubing 670199R1

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, No. 3, 7 inch (178 mm) long, cut from bulk tubing 670199R1

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributcr to pad, No. 4, 9 inch (229 mm) long, cut from bulk tubing 670199R1

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, No. 5, 11 inch (279 mm) long, cut from bulk tubing 670199R1

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, No. 6, 13 inch (330 mm) long, cut from bulk tubing 670199R1

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, No. 7, 14 inch (356 mm) long, cut from bulk tubing 670199R1

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, No. 8, 16 inch (406 mm) long, cut from bulk tubing 670199R1

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, No. 9, 17 inch (432 mm) long, cut from bulk tubing 670199R1

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, No. 10, 19 inch (483 mm) long, cut from bulk tubing 670199R1

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, No. 11, 21 inch (533 mm) long, cut from bulk tubing 670199R1

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, No. 12, 23 inch (584 mm) long, cut from bulk tubing 670199R1

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, No. 13, 24 inch (610 mm) long, cut from bulk tubing 670199R1

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, No. 14, 26 inch (645 mm) long, cut from bulk tubing 670199R1

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, No. 15, 28 inch (711 mm) long, cut from bulk tubing 670199R1

1шт.

ref

1990262C1

PACKAGE,SERVICE

STAND ASSEMBLY - moistener, continued

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, No. 16, 32 inch (813 mm) long, cut from bulk tubing 670199R1

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, No. 17, 32 inch (813 mm) long, cut from bulk tubing 670199R1

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad, No. 18, 33 inch (838 mm) long, cut from bulk tubing 670199R1

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

23

1982745C2

ADJUSTING PLATE

PLATE - adjusting, front

1шт.

24

1982747C2

ADJUSTING PLATE

PLATE - adjusting, rear

1шт.

25

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

27

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

28

1338549C1

COVER

- water distribution

1шт.

32

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

34

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

2шт.

35

1982695C2

SUPPORT

- moistener stand, left-hand, no longer available, order support 1982695C4, item 35A below

1шт.

35a

1982695C4

SUPPORT

- moistener stand, left-hand (Replaces support 1982695C3)

1шт.

35

1982696C2

SUPPORT

- moistener stand, right-hand, no longer available, order items 40 - 42 below

1шт.

35a

1982696C4

SUPPORT

- moistener stand, right-hand, no longer available, order items 40 - 42 below (Replaces support 1982696C3)

1шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), 1 per support, Used with supports 1982695C4 and 1982696C4 3/8", SAE

4шт.

36

425-106

NUT,3/8"-16, Cl 5

4шт.

37

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

38

95-81085

WASHER,13/32" x 1" x .179"

- flat, 13/32 x 1 x 11/64 inch

6шт.

39

231-5146

FLANGE NUT,3/8"-16

6шт.

40

229815A1

SUPPORT

- moistener stand, right-hand (Replaces support 1982696C4)

1шт.

41

411-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT - carriage, 3/8 NC x 2-1/4 inch, grade 2

1шт.

42

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC

1шт.

670199R1

PIPE

TUBE - bulk, 1/4 (6) OD x 600 inch (15240 mm) long, sold by the foot

1шт.
