Запчасти Case IH 2022 (9A-32) - DRUM GREASE SYSTEM (13) - PICKING SYSTEM

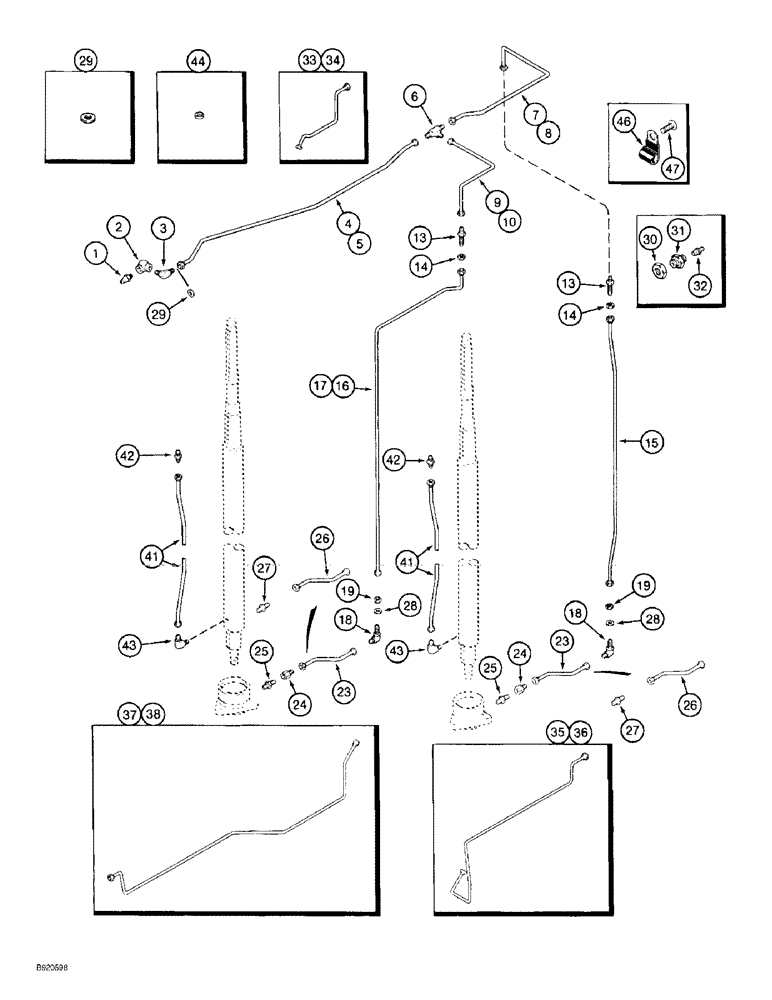

Схема запчастей Case IH 2022 - (9A-32) - DRUM GREASE SYSTEM (13) - PICKING SYSTEM
32
1
19
43
34
24
2
10
6
35
13
16
24
47
14
28
38
43
18
17
31
7
29
28
33
23
19
44
42
8
9
25
41
4
5
41
27
30
15
13
3
42
36
26
18
46
23
27
29
26
37
25
14

Артикул

Название

Примечание

Количество

1

1339376C1

FITTING

CONNECTOR - straight, grease line

1шт.

2

217-27

ELBOW,90 Degree, 1/4"-18 NPTF, Fem, Brass

- 90 degree, 1/4 inch female PT x female PT

1шт.

3

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT

1шт.

4

1984332C1

HYD TUBE

TUBE - rotor grease supply (No. 1 drum, 2022 Cotton Picker)

1шт.

4

1984332C1

HYD TUBE

TUBE - rotor grease supply (No. 2 and 4 drum, 2044 Cotton Picker)

1шт.

5

1984333C1

HYD TUBE

TUBE - rotor grease supply, right-hand (No. 2 drum, 2022 Cotton Picker)

1шт.

5

1984333C1

HYD TUBE

TUBE - rotor grease supply, right-hand (No. 1 and 3 drum, 2044 Cotton Picker)

1шт.

6

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

1шт.

7

1984334C1

HYD TUBE

TUBE - rotor, upper front (No. 1 drum, 2022 Cotton Picker)

1шт.

7

1984334C1

HYD TUBE

TUBE - rotor, upper front (No. 2 and 4 drum, 2044 Cotton Picker)

1шт.

8

1984335C1

HYD TUBE

TUBE - rotor, upper front, right-hand (No. 2 drum, 2022 Cotton Picker)

1шт.

8

1984335C1

HYD TUBE

TUBE - rotor, upper front, right-hand (No. 1 and 3 drum, 2044 Cotton Picker)

1шт.

9

1984336C1

HYD TUBE

TUBE - rotor, upper rear (No. 1 drum, 2022 Cotton Picker)

1шт.

9

1984336C1

HYD TUBE

TUBE - rotor, upper rear (No. 2 and 4 drum, 2044 Cotton Picker)

1шт.

10

1984337C1

HYD TUBE

TUBE - rotor, upper rear, right-hand (No. 2 drum, 2022 Cotton Picker)

1шт.

10

1984337C1

HYD TUBE

TUBE - rotor, upper rear, right-hand (No. 1 and 3 drum, 2044 Cotton Picker)

1шт.

13

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

2шт.

14

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

2шт.

15

1984338C1

HYD TUBE

TUBE - lubrication supply, front, vertical

1шт.

16

1984340C1

HYD TUBE

TUBE - lubrication supply, rear (No. 1 drum, 2022 Cotton Picker)

1шт.

16

1984340C1

HYD TUBE

TUBE - lubrication supply, rear (No. 2 and 4 drum, 2044 Cotton Picker)

1шт.

17

1984341C1

HYD TUBE

TUBE - lubrication supply, rear, vertical (No. 2 drum, 2022 Cotton Picker)

1шт.

17

1984341C1

HYD TUBE

TUBE - lubrication supply, rear, vertical (No. 1 and 3 drum, 2044 Cotton Picker)

1шт.

18

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- 90 degree, 9/16-18 inch flare x bulkhead flare

2шт.

19

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

2шт.

23

1982874C1

TUBE,0.375" OD

- grease, lower rear, if used

2шт.

24

218-463

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Female NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch female PT, if used

2шт.

25

1982834C1

FITTING

ADAPTER - straight, special, 1/4 inch PT, used with 1982874C1 tube only

2шт.

26

1546332C2

TUBE,0.375" OD, 176.08 mm Length

- grease, lower rear, if used (Replaces tube 1546332C1)

2шт.

27

1994951C1

FITTING

ADAPTER - straight, special, used with 1546332C1 tube only

2шт.

28

495-81170

WASHER,0.59" ID x 0.94" OD x 0.02" Thk

- flat, 19/32 x 15/16 x 1/64 inch

2шт.

29

495-11059

WASHER,9/16"

- flat, 19/32 x 1-5/32 x 3/32 inch

1шт.

30

F53473

LOCK NUT,1/8-27 NPSM

- special, lubrication hose

3шт.

31

1990056C1

FITTING

ADAPTER - straight, 7/16-20 x 1/8 inch PT

3шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

3шт.

33

1988701C1

HYD TUBE

TUBE - gear, upper front (No. 1 drum, 2022 Cotton Picker)

1шт.

33

1988701C1

HYD TUBE

TUBE - gear, upper front (No. 2 and 4 drum, 2044 Cotton Picker)

1шт.

34

1988702C1

HYD TUBE

TUBE - gear, upper front, right-hand (No. 2 drum, 2022 Cotton Picker)

1шт.

34

1988702C1

HYD TUBE

TUBE - gear, upper front, right-hand (No. 1 and 3 drum, 2044 Cotton Picker)

1шт.

35

1988703C1

HYD TUBE

TUBE - gear, lower front (No. 1 drum, 2022 Cotton Picker)

1шт.

35

1988703C1

HYD TUBE

TUBE - gear, lower front (No. 2 and 4 drum, 2044 Cotton Picker)

1шт.

36

1988704C1

HYD TUBE

TUBE - gear, lower front, right-hand (No. 2 drum, 2022 Cotton Picker)

1шт.

36

1988704C1

HYD TUBE

TUBE - gear, lower front, right-hand (No. 1 and 3 drum, 2044 Cotton Picker)

1шт.

37

1988705C2

HYD TUBE

TUBE - gear, upper rear (No. 1 drum, 2022 Cotton Picker)

1шт.

37

1988705C2

HYD TUBE

TUBE - gear, upper rear (No. 2 and 4 drum, 2044 Cotton Picker)

1шт.

38

1988706C2

HYD TUBE

TUBE - gear, upper rear (No. 2 drum, 2022 Cotton Picker)

1шт.

38

1988706C2

HYD TUBE

TUBE - gear, upper rear (No. 1 and 3 drum, 2044 Cotton Picker)

1шт.

41

1984408C1

HYD TUBE,0.375" OD

TUBE - rotor grease

2шт.

42

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch PT

2шт.

43

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT

2шт.

44

1988718C1

SPACER

- grease inlet

1шт.

46

1968092C1

LARGE PLATE

CLAMP - tube

2шт.

47

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

2шт.

Выбрано товаров: 53
