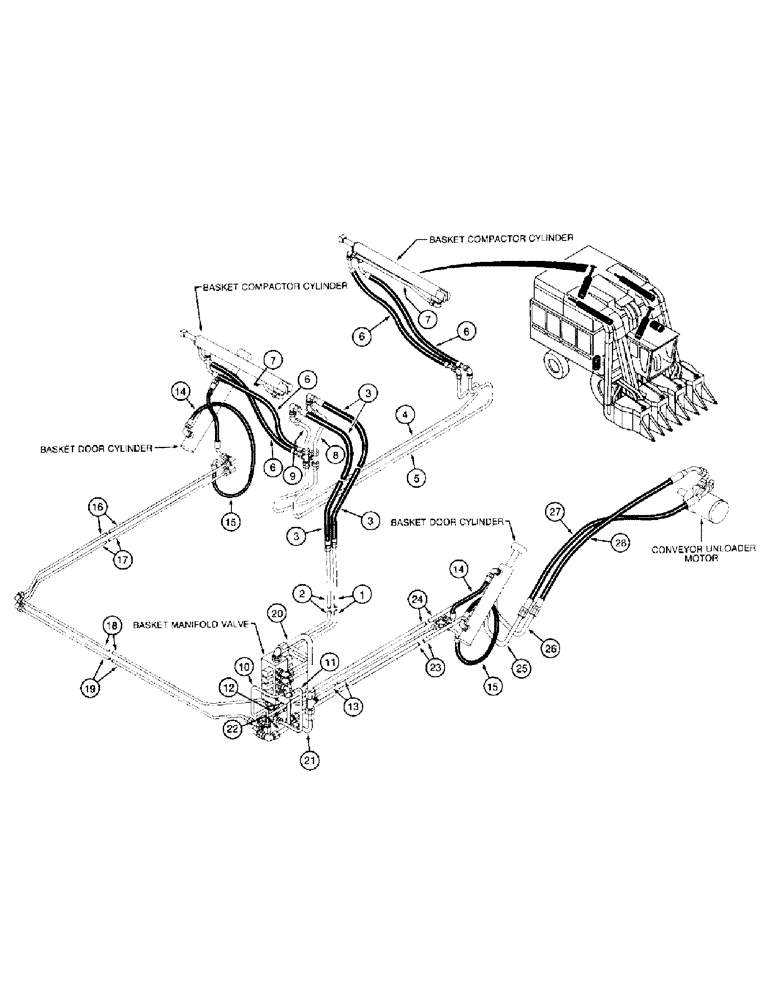

Запчасти Case IH 2022 (1-24) - PICTORIAL INDEX, BASKET COMPONENT HYDRAULIC SYSTEM (00) - PICTORIAL INDEX

1

Compactor Raise First Tube, Pg 8-61, 8-65

1шт.

2

Compactor Lower First Tube, Pg 8-61, 8-65

1шт.

3

Compactor Supply Hose, Pg 8-61, 8-65

1шт.

4

Compactor Lower Third Tube (2022 Cotton Picker), Pg 8-61

1шт.

4

Compactor Lower Third Tube (2044 Cotton Picker), Pg 8-65

1шт.

5

Compactor Raise Third Tube (2022 Cotton Picker), Pg 8-61

1шт.

5

Compactor Raise Third Tube (2044 Cotton Picker), Pg 8-65

1шт.

6

Compactor Cylinder Hose, Pg 8-61, 8-65

1шт.

7

Compactor Cylinder Tube, Pg 8-61, 8-65

1шт.

8

Compactor Raise Second Tube (2022 Cotton Picker), Pg 8-61

1шт.

8

Compactor Raise Second Tube (2044 Cotton Picker), Pg 8-65

1шт.

9

Compactor Lower Second Tube (2022 Cotton Picker), Pg 8-61

1шт.

9

Compactor Lower Second Tube (2044 Cotton Picker), Pg 8-65

1шт.

10

Door Open Tube, Pg 8-83

1шт.

11

Door Close Tube, Pg 8-83

1шт.

12

Door Open Front Tube, Pg 8-83

1шт.

13

Door Close Front Tube, Pg 8-83

1шт.

14

Door Open Hose, Pg 8-83

1шт.

15

Door Close Hose, Pg 8-83

1шт.

16

Door Open Rear Tube, Pg 8-83

1шт.

17

Door Close Rear Tube, Pg 8-85

1шт.

18

Door Open Right-Hand Tube, Pg 8-83, 8-85

1шт.

19

Door Close Right-Hand Tube, Pg 8-83, 8-85

1шт.

20

Basket Valve Tank Tube, Pg 8-77

1шт.

21

Motor Return Tube, Pg 8-77

1шт.

22

Motor Supply Tube, Pg 8-77

1шт.

23

Motor Return Tube, Pg 8-77

1шт.

24

Motor Supply Tube, Pg 8-77, 8-79

1шт.

25

Motor Return Tube, Pg 8-77

1шт.

26

Motor Supply Tube, Pg 8-77, 8-79

1шт.

27

Motor Return Tube, Pg 8-77

1шт.

28

Motor Supply Tube, Pg 8-77

1шт.
