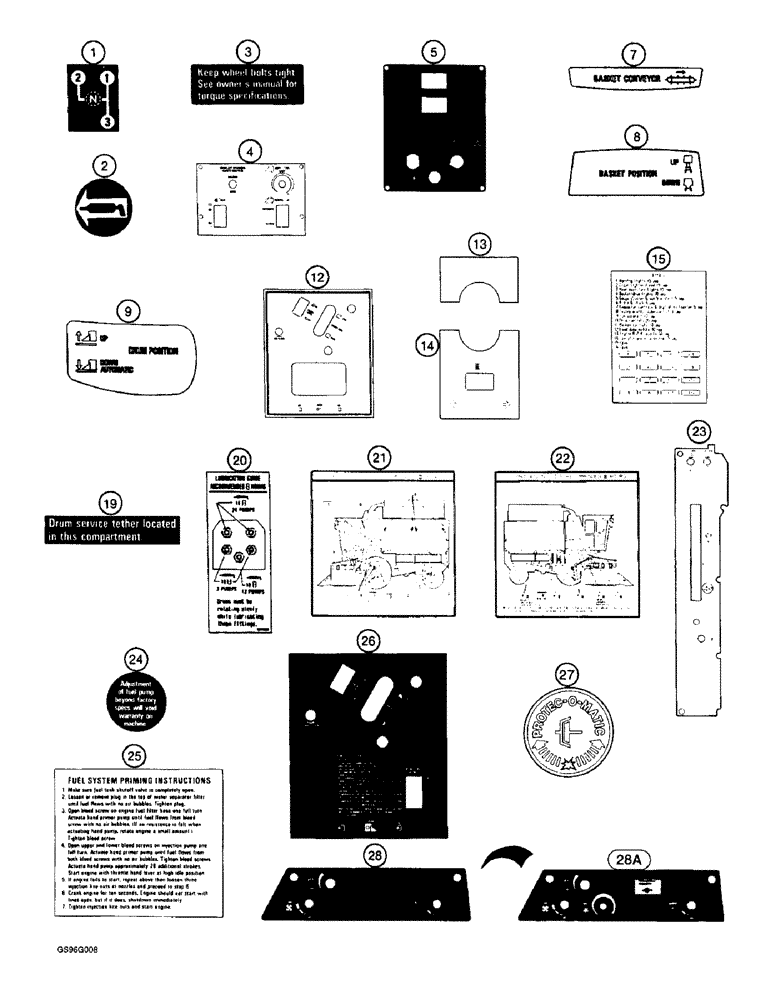

Запчасти Case IH 2022 (9F-40) - DECALS, GENERAL INSTRUCTIONS (12) - CHASSIS

1

196684C1

PRODUCT GRAPHIC

DECAL - shift pattern

1шт.

2

128490C1

DECAL

- grease fitting locator arrow

30шт.

3

203854C1

DECAL

- wheel bolt

4шт.

3

222828C1

DECAL

- wheel bolt, Spanish

4шт.

4

1278764C4

DECAL

- front control panel

1шт.

4

1339238C2

DECAL

- front control panel, Spanish

1шт.

5

1988795C2

DECAL

- rear control panel (Replaces decal 1988795C1)

1шт.

7

1285222C1

DECAL

- basket conveyor

1шт.

7

1339242C1

DECAL

- basket conveyor, Spanish

1шт.

8

1278797C1

DECAL

- basket position

1шт.

8

1339240C1

DECAL

- basket position, Spanish

1шт.

9

1285223C1

DECAL

- drum position

1шт.

9

1339243C1

DECAL

- drum position, Spanish

1шт.

12

1285221C1

DECAL

- basket door lamp and drum panel

1шт.

12

1339241C1

DECAL

- basket door lamp, Spanish

1шт.

13

87145C1

DECAL

- steering column, upper front

1шт.

14

1327549C3

DECAL

- steering column, upper rear

1шт.

15

1987406C2

DECAL

- fuse location

1шт.

15

101444A1

DECAL

- fuse location, Spanish (Replaces decal 1339244C1)

1шт.

19

1982752C1

DECAL

- drum service tether located in this compartment

1шт.

20

1990032C2

DECAL

- drum lubrication guide, 2022 Cotton Picker (Replaces decal 1990032C1)

2шт.

20

1990032C2

DECAL

- drum lubrication guide, 2044 Cotton Picker (Replaces decal 1990032C1)

4шт.

21

1345103C2

DECAL

- lubrication chart, left-hand chassis

1шт.

21

1339252C1

DECAL

- lubrication chart, left-hand chassis, Spanish

1шт.

22

1345104C2

DECAL

- lubrication chart, right-hand chassis

1шт.

22

1339253C1

DECAL

- lubrication chart, right-hand chassis, Spanish

1шт.

23

87444C2

DECAL

- control panel, right-hand (Replaces decal 87444C1)

1шт.

23

1339235C2

DECAL

- control panel, right-hand chassis, Spanish (Replaces decal 1339235C1)

1шт.

24

A189007

DECAL

- warranty, fuel pump

1шт.

25

1979263C1

DECAL

- fuel system priming instructions, 2022 Cotton Picker

1шт.

25

1979261C1

DECAL

- fuel system, Spanish

1шт.

26

1545981C1

DECAL

- basket door and service by-pass (Replaces decal 1982797C1)

1шт.

27

1545966C1

DECAL

- Protec-O-Matic

1шт.

28

1283479C2

DECAL

- heater controls

1шт.

28a

1283031C2

DECAL

- heater and air conditioning controls

1шт.
