(9F-32) - STEPS AND LADDERS, 2022 COTTON PICKER

Запчасти Case IH 2022 (9F-32) - STEPS AND LADDERS, 2022 COTTON PICKER (12) - CHASSIS

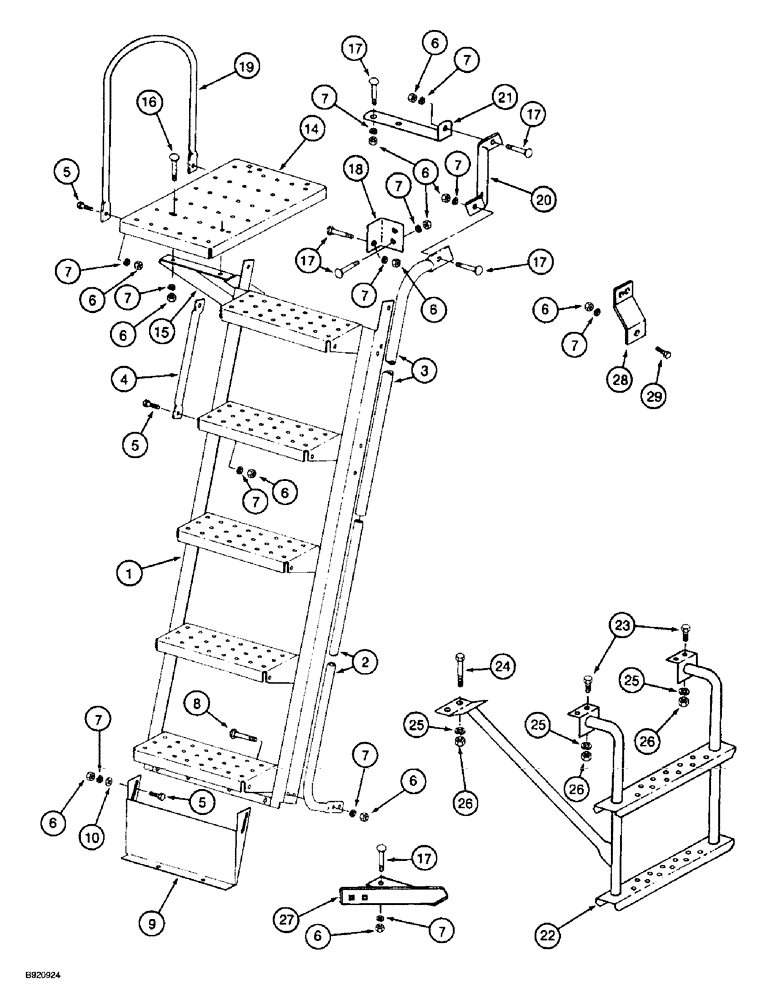

Схема запчастей Case IH 2022 - (9F-32) - STEPS AND LADDERS, 2022 COTTON PICKER (12) - CHASSIS
7
6
17
7
25
7
26
6
19
7
6
7
17
17
15
3
8
24
20
7
25
7
4
28
21
6
7
26
25
26
10
18
27
16
7
14
6
17
6
17
29
1
23
6
6
22
5
2
6
7
5
6
2
7
7
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1278706C5

LADDER

- operators

1шт.

2

1278711C1

RAIL

- ladder, inner

1шт.

3

86840C1

RAIL ASSY.

RAIL - ladder, outer

1шт.

4

1285388C1

SUPPORT

RAIL - hand

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

6

425-106

NUT,3/8"-16, Cl 5

20шт.

7

492-11038

LOCK WASHER,3/8"

20шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

9

1266362C2

SUPPORT

- chute ladder

1шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

14

1278720C4

PLATFORM

- operators

1шт.

15

1278724C1

SUPPORT

BRACE - platform

1шт.

16

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

17

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

7шт.

18

1278726C1

SUPPORT

BRACKET - platform

1шт.

19

87138C1

RAIL ASSY.

RAIL - hand

1шт.

20

1338912C1

SUPPORT TUBE

BRACKET - ladder support

1шт.

21

87467C1

SUPPORT

BRACKET - ladder support

1шт.

22

1285227C1

LADDER

- platform

1шт.

23

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

24

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

26

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

27

1278762C1

BAR

- ladder support

1шт.

28

1338921C2

GUSSET

BRACKET - ladder support

1шт.

29

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.
