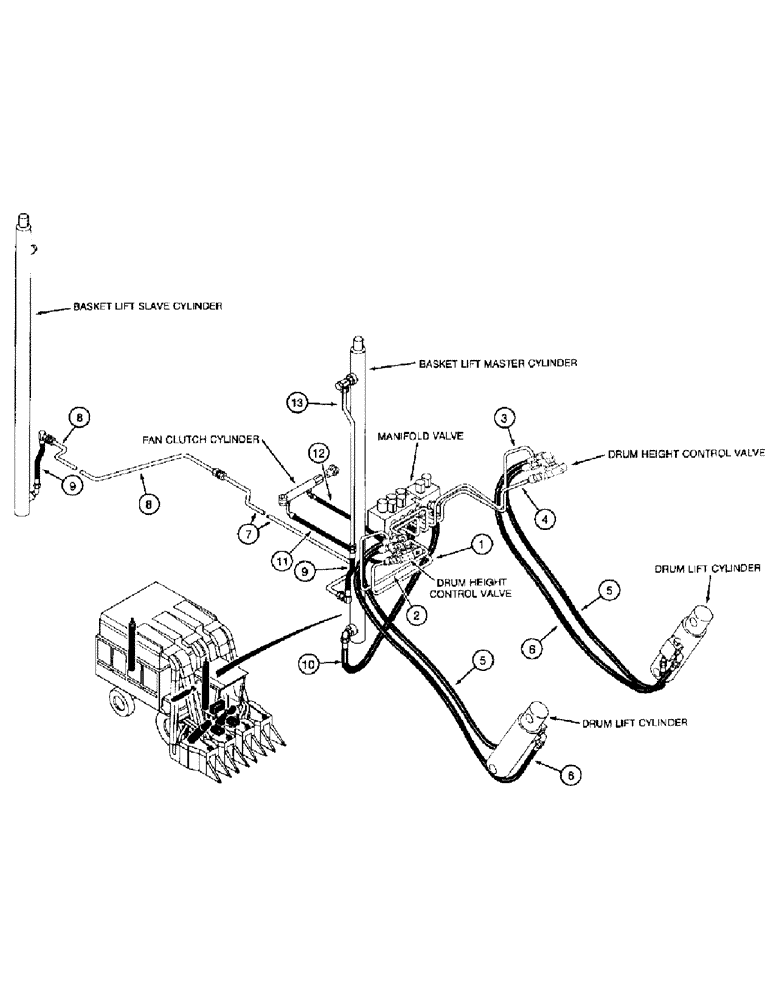

Запчасти Case IH 2022 (1-22) - PICTORIAL INDEX, DRUM, BASKET LIFT AND FAN CLUTCH HYDRAULIC SYSTEM (00) - PICTORIAL INDEX

1

Right-Hand Drum Manual Supply Tube, Pg 8-21

1шт.

2

Right-Hand Drum Automatic Supply Tube, Pg 8-21

1шт.

3

Left-Hand Drum Automatic Supply Tube, Pg 8-21

1шт.

4

Left-Hand Drum Manual Supply Tube, Pg 8-21

1шт.

5

Pilot Valve Pressure, Pg 8-21

1шт.

6

Drum Lift Cylinder Hose, Pg 8-21

1шт.

7

Basket Lift Slave First Tube, Pg 8-47

1шт.

8

Basket Lift Slave Second Tube, Pg 8-47

1шт.

9

Basket Lift Cylinder Hose, Pg 8-47

1шт.

10

Basket Lift Hose, Pg 8-47

1шт.

11

Fan Clutch Cylinder Engage Hose, Pg 8-41

1шт.

12

Fan Clutch Cylinder Disengage Hose, Pg 8-41

1шт.

13

Basket Lift Cylinder Slave Port Tube, Pg 8-47

1шт.
