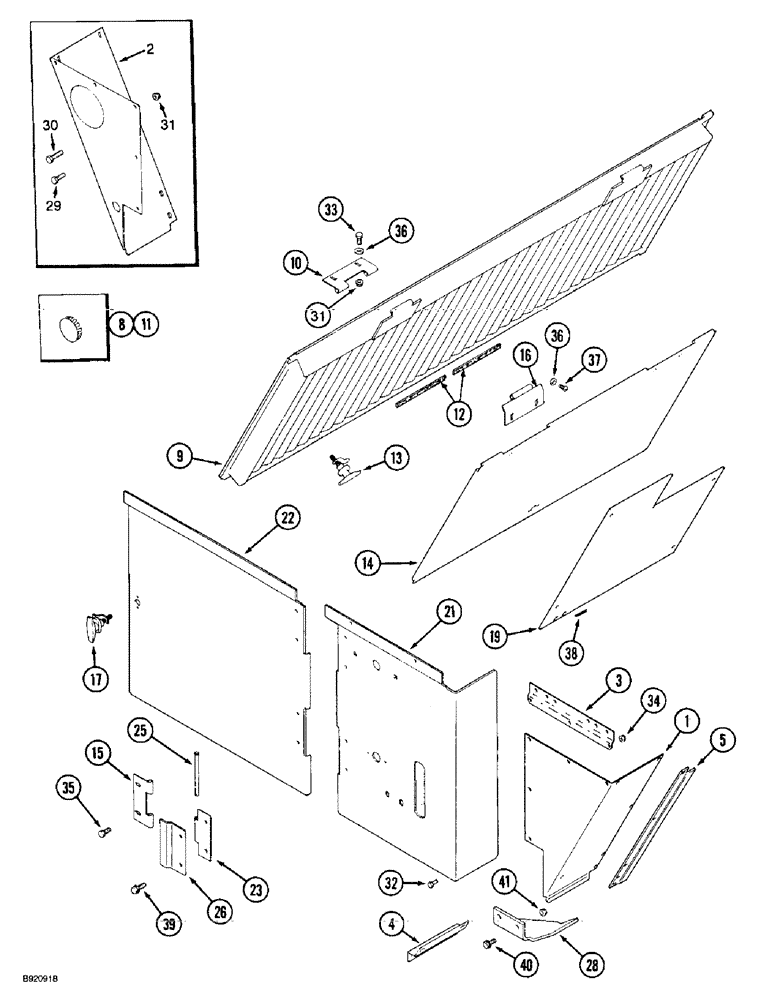

Запчасти Case IH 2022 (9F-20) - SIDE SCREENS AND DOORS (12) - CHASSIS

1

1278928C1

COVER

- rear inner, right-hand

1шт.

2

1278927C1

COVER

- rear inner, left-hand

1шт.

3

1278812C1

SUPPORT

- upper cover

2шт.

4

1278813C3

SUPPORT

- lower cover (Replaces support 1278813C2)

2шт.

5

1278815C1

BAR

- screen frame, right-hand

1шт.

5

1278814C1

BAR

- screen frame, right-hand, not shown

1шт.

8

353-401

PLUG,Dome, .312" hole, Nylon

- button, 5/16 inch

1шт.

9

1990167C3

FILTER

CLEANER ASSEMBLY - rear (Replaces cleaner assembly 1990167C2)

2шт.

10

1338422C1

HINGE

- screen

4шт.

11

353-404

PLUG,Dome, .500" hole, Nylon

8шт.

12

NSS

NOT SOLD SEPARAT

SEAL - screen, 165 inch (4192 mm) long, cut from bulk seal 1263038C1 below

2шт.

13

1990265C1

HANDLE

LATCH - cleaner

4шт.

14

1990171C1

DOOR

- engine compartment

2шт.

15

1990187C2

HINGE

- upper half (Replaces hinge 1990187C1)

6шт.

16

1990197C1

HINGE

- door, front

4шт.

17

1990266C1

HANDLE

LATCH - door

4шт.

19

1345125C3

LARGE PLATE

PLATE - fan shield (Replaces plate 1345125C2)

1шт.

19

1345124C2

COVER

- front side screen, not shown

1шт.

21

1990182C2

GUARD

SHIELD - carriage roller, right-hand

1шт.

21

1990170C2

GUARD

SHIELD - carriage roller, left-hand, not shown

1шт.

22

1990158C1

SHEET

PANEL - door, fuel tank access

1шт.

23

1990317C2

HINGE

- rear door (Replaces hinge 1990317C1)

2шт.

25

1349860C1

PIN,7.94mm OD x 129mm L

- hinge

2шт.

26

1990318C1

LARGE PLATE

PLATE - door stop

1шт.

28

1288805C1

DEFLECTOR

- rear corner, right-hand

1шт.

28

1288804C1

DEFLECTOR

- rear corner, left-hand, not shown

1шт.

29

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

20шт.

30

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

- hex serrated flange, 5/16 NC x 1-1/2 inch

2шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

71шт.

32

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

12шт.

33

413-596

BOLT,Hex, 5/16" - 18 x 6", Gr 5

- hex, 5/16 NC x 6 inch

8шт.

34

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

8шт.

35

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

16шт.

36

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

16шт.

37

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

8шт.

38

586591R1

COTTER PIN

PIN - cotter, hair, 1/8 inch

8шт.

39

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

13шт.

40

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

4шт.

41

231-5146

FLANGE NUT,3/8"-16

4шт.

1263038C1

SEAL,7620mm L

- bulk, 300 inch (7620 mm) long

1шт.
