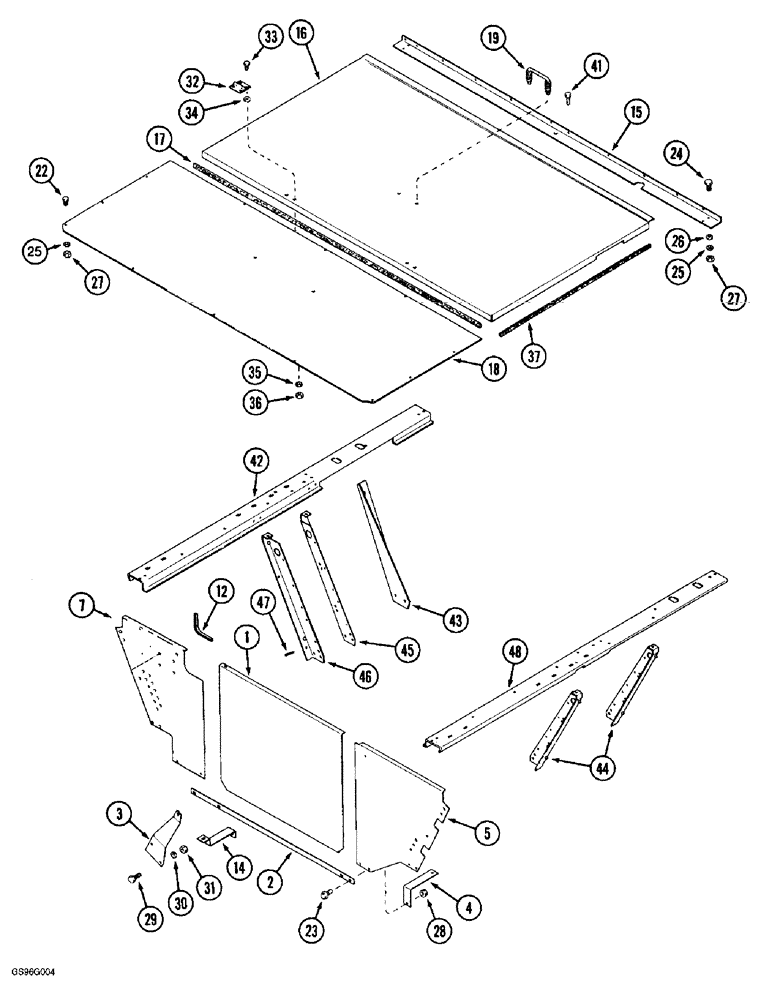

Запчасти Case IH 2022 (9F-16) - ENGINE AND RADIATOR SHIELDS, FRONT ACCESS DOOR AND SUPPORTS (12) - CHASSIS

1

1982303C1

SHEET

PANEL - shield center

1шт.

2

1982302C4

SUPPORT

BRACKET - shield bottom

1шт.

3

1982344C1

SUPPORT

BRACKET - shield support, lower left-hand

1шт.

4

1982345C1

SUPPORT

BRACKET - shield support, lower right-hand

1шт.

5

1982307C5

PANEL

- engine shield, right-hand

1шт.

7

1982304C6

PANEL

- engine shield, left-hand

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - panel, 12 inch (305 mm) long, cut from bulk trim 1977224CX below

1шт.

14

1982346C1

SUPPORT

BRACKET - shield support, upper center

2шт.

15

1982314C2

ANGLE BAR

BRACKET - hood, front

1шт.

16

1982292C5

DOOR

- front deck

1шт.

17

1982348C1

GASKET

SEAL - shield, upper, 65-1/4 inch (1657 mm) long, cut from bulk seal 87084C2 below

1шт.

18

1982297C4

PANEL

- center shield

1шт.

19

1278124C1

HANDLE

- retractable

1шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

25шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

15шт.

24

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

16шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

41шт.

26

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

27

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

41шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

15шт.

29

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

30

492-11038

LOCK WASHER,3/8"

2шт.

31

425-106

NUT,3/8"-16, Cl 5

2шт.

32

215720C1

HINGE

- shield

2шт.

33

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

34

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

16шт.

35

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

36

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

37

NSS

NOT SOLD SEPARAT

SEAL - hinge, 65 inch (1651 mm) long, cut from bulk seal 195917C1 below

2шт.

41

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

42

1278009C5

SUPPORT

- shield, outer front, left-hand

1шт.

43

1345128C1

ANGLE BAR

SUPPORT - front plate

1шт.

44

1345136C3

SUPPORT

BRACKET - screen support

2шт.

45

1262614C8

SUPPORT

BRACKET - screen support

1шт.

46

1345135C1

SUPPORT

BRACKET - screen, left-hand

1шт.

47

586591R1

COTTER PIN

PIN - cotter, hair, 1/8 inch

8шт.

48

1278010C5

SUPPORT

- shield, outer front, right-hand

1шт.

1977224CX

GASKET

TRIM - bulk, edge, 600 inch (15240 mm) long

1шт.

87084C2

GASKET

SEAL - bulk, adhesive-backed, 600 inch (15240 mm) long

1шт.

195917C1

GASKET

SEAL - bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.
