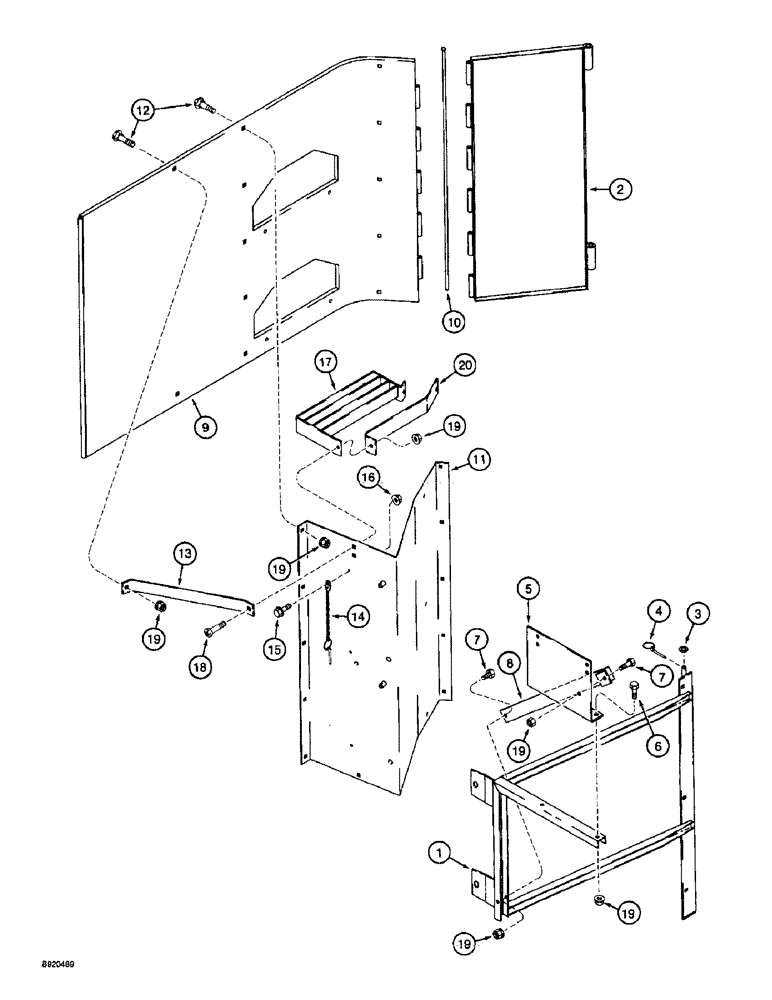

Запчасти Case IH 2022 (9F-14) - LEFT-HAND SIDE WHEEL SHIELDS AND STEPS, 2022 COTTON PICKER, USED WITH CHAIN PANEL LATCH (12) - CHASSIS

1

1345035C1

CHASSIS

FRAME - wheel shield, left-hand side

1шт.

2

1278873C1

SHEET

PANEL - wheel shield front, left-hand side

1шт.

3

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

3шт.

4

A33497

LINCH PIN,4.76mm OD Pin

PIN - lock

1шт.

5

1278871C2

ANGLE BAR

BRACKET - channel support, left-hand side

1шт.

6

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

3шт.

7

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

15шт.

8

1278963C1

SUPPORT

BRACE - frame

1шт.

9

1994777C1

PANEL

- rear wheel, left-hand side

1шт.

10

1278880C1

PIN

- hinge

1шт.

11

1994775C1

SUPPORT

- wheel shield, left-hand side

1шт.

12

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

15шт.

13

1994852C1

SUPPORT

- wheel shield panel

2шт.

14

1345212C1

CHAIN (AG)

CHAIN - retainer

2шт.

15

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

2шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

17

1345200C1

STEP

- wheel shield

3шт.

18

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

- self-locking, truss head Phillips, special, 3/8 NC x 1 inch

6шт.

19

231-5146

FLANGE NUT,3/8"-16

33шт.

20

1994978C1

SUPPORT

STEP - filler, inner

3шт.
