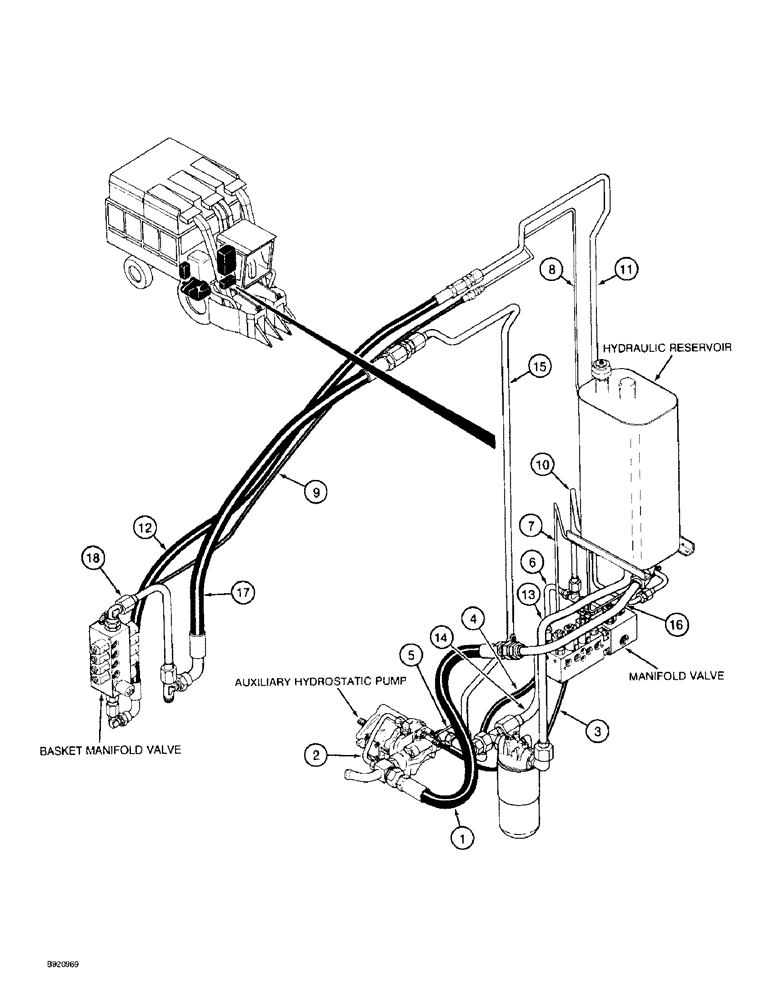

Запчасти Case IH 2022 (1-18) - PICTORIAL INDEX, MANIFOLD VALVE HYDRAULIC SYSTEM, 2022 COTTON PICKER (00) - PICTORIAL INDEX

1

Auxiliary Pump Supply Hose, Pg 8-9

1шт.

2

Case Drain Tube, Pg 8-9

1шт.

3

Manifold Valve Sense Hose, Pg 8-19

1шт.

4

Pump Pressure Hose, Pg 8-19

1шт.

5

Supercharge Tube, Pg 8-19

1шт.

6

Manifold Valve Supply Tube, Pg 8-19

1шт.

7

Basket Sense Lower Tube, Pg 8-65

1шт.

8

Basket Sense Intermediate Tube, Pg 8-65

1шт.

9

Basket Sense Hose, Pg 8-65

1шт.

10

Basket Supply Lower Tube, Pg 8-65

1шт.

11

Basket Supply Intermediate Tube, Pg 8-65

1шт.

12

Basket Supply Hose, Pg 8-65

1шт.

13

Filler Inlet Tube, Pg 8-5

1шт.

14

Valve Tank Tube, Pg 8-89

1шт.

15

Basket Tank Upper Tube, Pg 8-89

1шт.

16

Pump Supply Tube, Pg 8-9

1шт.

17

Basket Tank Hose, Pg 8-89

1шт.

18

Basket Tank Tube, Pg 8-77

1шт.
