Запчасти Case IH 2022 (9E-28) - HEATER AND AIR CONDITIONING, CHASSIS CONNECTIONS (10) - CAB & AIR CONDITIONING

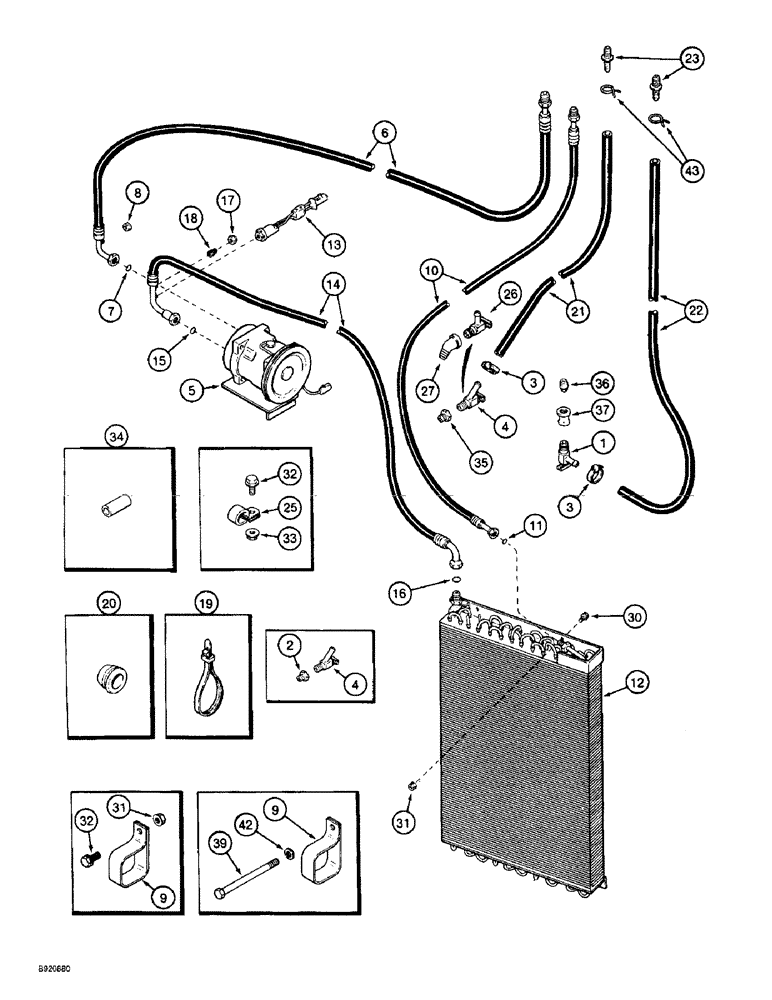

Схема запчастей Case IH 2022 - (9E-28) - HEATER AND AIR CONDITIONING, CHASSIS CONNECTIONS (10) - CAB & AIR CONDITIONING
42
31
22
14
6
30
10
18
16
9
36
21
15
27
23
8
4
4
35
5
3
33
26
2
43
9
1
39
17
19
11
12
3
32
32
37
20
34
25
7
13
31

Артикул

Название

Примечание

Количество

1

301803R1

SHUT-OFF VALVE

VALVE - shutoff, 90 degree

1шт.

2

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

1шт.

3

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

4

941980R91

LOCK VALVE

VALVE - heater, no longer used, order valve 301803R1, item 26 below

2шт.

5

REF

INSTRUCTION

COMPRESSOR ASSEMBLY - air conditioning, parts list page 9E-37

1шт.

6

1982311C2

LARGE HOSE

HOSE ASSEMBLY - comressor to cab, 167-5/16 inch (4250 mm) long

1шт.

7

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

8

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

1шт.

9

1301387C2

CLIP

CLAMP - square, 2 inch ID

1шт.

10

1321292C5

HOSE

ASSEMBLY - condenser to cab, 187 inch (4743 mm) long

1шт.

11

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

12

183901C2

CONDENSER

COIL - air conditioner condenser

1шт.

13

92038C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure, used with compressor 1977959C1

1шт.

13

1999925C1

INDICATOR

SWITCH - high pressure, used with compressor 1999755C2

1шт.

14

1977857C4

HOSE

-, Serial Range: compressor-condenser

1шт.

15

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

16

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

17

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female, 45 degree flare

1шт.

18

1250593C1

FITTING

ADAPTER - straight, special, 1/4 inch

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 14 inch long (Replaces strap 291207C1)

1шт.

19

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, , Retaining, 3 inch maximum bundle .098" x 8"

1шт.

20

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- 3/4 inch ID

2шт.

20

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

- 7/8 inch ID

2шт.

20

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- 5/8 inch ID

2шт.

21

NSS

NOT SOLD SEPARAT

HOSE - heater, 130 inch (3302 mm) long, cut from bulk hose 97252CX below

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - heater, 177 inch (4496 mm) long, cut from bulk hose 97252CX below

1шт.

23

1301342C1

FITTING

ADAPTER - straight, special

2шт.

25

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

P-type (Replaces clamp 299608C1) 1 1/4", Insul, 1/2" Bolt

1шт.

26

301803R1

SHUT-OFF VALVE

VALVE - shutoff

1шт.

27

217-18

ELBOW,45 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- street, 45 degree, 3/8 inch PT x female PT

1шт.

30

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

4шт.

31

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

32

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

34

150596C1

SPACER,1/2" Tube x 1 3/16"

- tubular, 21/64 x 1/2 x 1-13/64 inch

2шт.

35

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

- pipe, 3/4 male x 3/8 inch female

1шт.

36

221-187

PIPE,Nipple, 1/2" NPT x 1 1/2"

NIPPLE - straight, 1/2 PT x 1-1/2 inch

1шт.

37

221-1349

COUPLING,Pipe, 1/2" x 3/8" NPT

COUPLER - pipe reducer, 1/2 x 3/8 inch

1шт.

39

413-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex, 3/8 NC x 4-1/4 inch

1шт.

42

492-11038

LOCK WASHER,3/8"

1шт.

43

214-1314

HOSE CLAMP,#14, 7/8", Spring

CLAMP, HOSE, (Replaces clamp 313318R1) #14, 7/8", Spring

2шт.

97252CX

HOSE

- bulk, 5/8 (16) x 1 (25) x 600 inch (15240 mm) long, sold by the foot (Replaces hose R54970 and 97252C1)

1шт.
