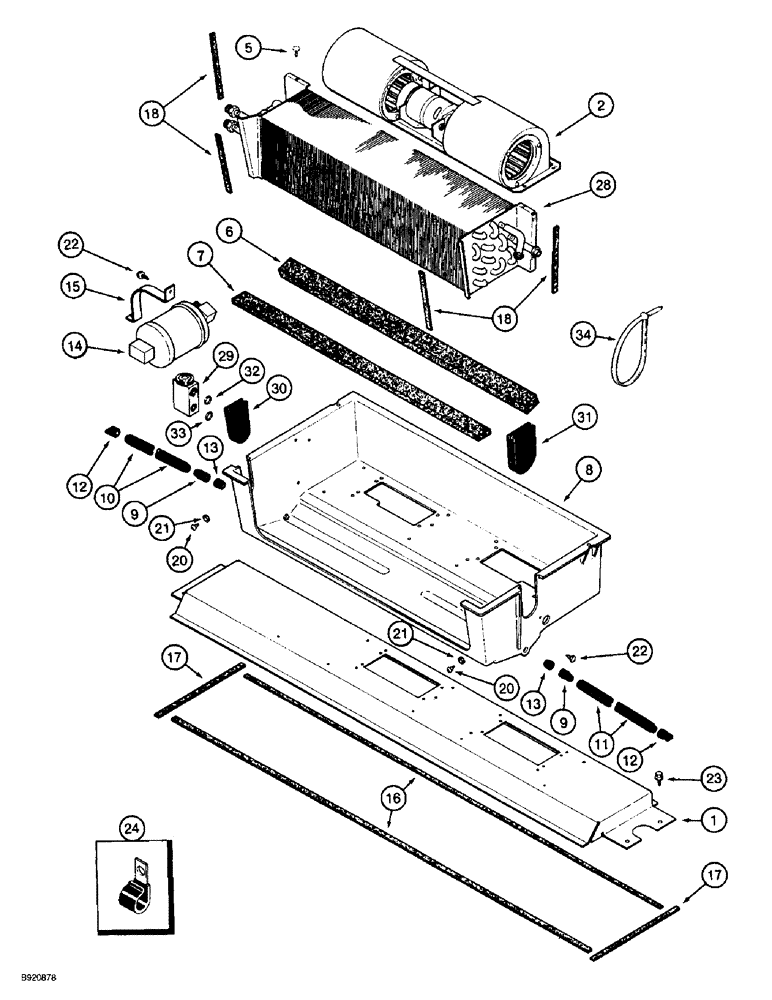

Запчасти Case IH 2022 (9E-24) - CAB EVAPORATOR HEATER CORE, AND BLOWER MOUNTING (10) - CAB & AIR CONDITIONING

1

1276238C1

SUPPORT

- mounting, blower box

1шт.

2

1255878C92

BLOWER ASSY.

BLOWER ASSEMBLY - pressurizer, parts list page 9E-27

1шт.

5

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW - self-tapping, truss head, No. 10-16 x 3/4 inch

4шт.

6

84123C1

STRIP

SEAL - 29-1/2 inch (750 mm) long, core front

1шт.

7

84124C1

STRIP

SEAL - 28-1/2 inch (725 mm) long, core rear, cut from bulk seal 1974883CX below

1шт.

8

135776C2

HOUSING

- blower

1шт.

9

1250522C3

FITTING

FITTING - straight, special

2шт.

10

1276252C1

HOSE ASSY.

HOSE - condensate left-hand, 90 inch (2286 mm) long, cut from bulk hose 198091C1 below

1шт.

11

1327566C1

HOSE,12.95 mm ID x 3404.00 mm

Condensate, Right-Hand; Cut From Bulk Hose 198091C1; See Below 12.95 mm ID x 3404.00 mm

1шт.

12

109239C2

CHECK VALVE

VALVE, CHECK

2шт.

13

195806C1

GROMMET

- 3/4 inch ID, condensate hose

2шт.

13

195800C1

GROMMET

- protective, condensate hose plug, without air conditioner

2шт.

14

1990758C2

RECEIVER-DRYER

RECEIVER-DRIER - air conditioning system, used with R-12 or HCF-134A refrigerant

1шт.

14

143469C2

RESERVOIR

RECEIVER-DRIER - air conditioning system, used with R-12 refrigerant only, no longer available, order receiver drier 1990758C2 above

1шт.

15

1250439C1

CLAMP

- receiver-drier

1шт.

16

1327504C1

SEAL

SEAL - support and headliner, 50 inch (1270 mm) long, cut from bulk seal 187874C1 below

2шт.

17

1301250C1

SEAL

SEAL - support and headliner, 10 inch (254 mm) long, cut from bulk seal 187874C1 below

2шт.

18

1327503C1

SEAL

SEAL - core to housing, 6-1/2 inch (165 mm) long, cut from bulk seal 187874C1 below

4шт.

20

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW - self-tapping, pan Phillips head, No. 10-16 x 1/2 inch

4шт.

21

395-31022

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch

4шт.

22

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW - self-tapping, truss head, No. 10-16 x 3/4 inch

12шт.

23

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

- self-tapping, hex washer head, 1/4 NC x 1 inch

4шт.

24

362126R1

CLIP

CLAMP - right-hand condensate hose

3шт.

28

1974632C2

HEAT-EXCHANGER

CORE ASSEMBLY - evaporator, used with R-12 refrigerant, no longer available, order core assembly 1974632C3 below

1шт.

28

1974632C3

EVAPORATOR

CORE ASSEMBLY - heater and evaporator, used with HCF-134A refrigerant

1шт.

29

98370C3

VALVE

- expansion, used with core assembly 1974632C2

1шт.

29

1990756C2

VALVE

- expansion, used with core assembly 1974632C3

1шт.

30

1250463C2

GROMMET

- rubber, evaporator tubes

1шт.

31

1250464C2

GROMMET

- rubber, heater tubes

2шт.

32

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

33

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

34

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

3шт.

1974883CX

SEAL

- bulk, 600 inch (15240 mm) long, sold by the foot

1шт.

198091C1

HOSE,12.95mm ID x 15240mm L

- bulk, 1/2 (12) ID x 600 inch (15240 mm) long, sold by the foot

1шт.

187874C1

GASKET

SEAL - bulk sheet, 3/8 (10) wide x 600 inch (15240 mm) long x 1/8 inch (3 mm) thick

1шт.
